DAOFT1305 Adaptor – DME&JDE Group

Technical Data of DAOFT1305

* Filter the F1 Thread through selecting the -XX options

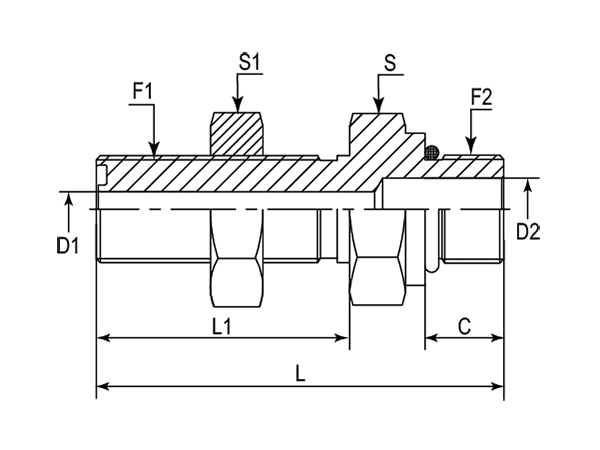

A drawing of DAOFT1305 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C	D1	D2	L1	L	S	S1	Hex
-	-	UNF	UNF	mm	mm	mm	mm	mm	-	-	-
-01	DAOFT1305-0404	9/16"-18	7/16"-20	11.00	4.37	4.37	31.50	53.50	22 mm	22 mm	Metric
-01	DAOFT1305-0404IN	9/16"-18	7/16"-20	11.00	4.37	4.37	31.50	53.50	13/16"	13/16"	Imperial
-06	DAOFT1305-0604	11/16"-16	7/16"-20	11.00	6.71	6.71	34.04	57.50	27 mm	27 mm	Metric
-06	DAOFT1305-0604	11/16"-16	7/16"-20	11.00	6.71	6.71	34.04	57.50	27 mm	27 mm	Metric
-06	DAOFT1305-0606	11/16"-16	9/16"-18	11.99	6.71	6.71	34.04	58.70	27 mm	27 mm	Metric
-06	DAOFT1305-0604IN	11/16"-16	7/16"-20	11.00	6.71	6.71	34.04	57.50	1"	1"	Imperial
-06	DAOFT1305-0606IN	11/16"-16	9/16"-18	11.99	6.71	6.71	34.04	58.70	1"	1"	Imperial
-08	DAOFT1305-0808IN	11/16"-16	3/4"-16	14.00	9.60	9.60	36.58	69.50	1-1/8"	1-1/8"	Imperial
-10	DAOFT1305-1008	1"-14	3/4"-16	14.00	12.29	9.60	40.64	72.50	36 mm	36 mm	Metric
-10	DAOFT1305-1010	1"-14	7/8"-14	16.00	12.29	12.29	40.64	74.50	36 mm	36 mm	Metric
-10	DAOFT1305-1008IN	1"-14	3/4"-16	14.00	12.29	9.60	40.64	72.50	1-5/16"	1-5/16"	Imperial
-10	DAOFT1305-1010IN	1"-14	7/8"-14	16.00	12.29	12.29	40.64	74.50	1-5/16"	1-5/16"	Imperial
-12	DAOFT1305-1212	1-3/16"-12	1-1/16"-12	18.50	15.47	15.47	41.66	80.00	41 mm	41 mm	Metric
-12	DAOFT1305-1212IN	1-3/16"-12	1-1/16"-12	18.50	15.47	15.47	41.66	80.00	1-1/2"	1-1/2"	Imperial
-16	DAOFT1305-1616	1-7/16"-12	1-5/16"-12	18.50	20.60	20.60	42.16	18.50	46 mm	46 mm	Metric
-16	DAOFT1305-1616IN	1-7/16"-12	1-5/16"-12	18.50	20.60	20.60	42.16	18.50	1-3/4"	1-3/4"	Imperial
