DAOF5105JM Adaptor – DME&JDE Group

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-01	DAOF5105JM-0404	9/16"-19	1/4"-19	9.80	16.00	4.00	4.00	35.00	17.00
-06	DAOF5105JM-0606	11/16"-16	3/8"-19	11.20	18.00	6.71	8.50	39.00	19.00
-08	DAOF5105JM-0808	13/16"-16	1/2"-14	12.80	20.00	9.30	9.30	43.00	22.00
-10	DAOF5105JM-1010	1"-14	5/8"-14	15.49	20.00	12.00	12.00	44.50	27.00
-12	DAOF5105JM-1212	1-3/16''-12	3/4"-14	17.02	22.00	15.50	15.50	49.00	32.00

DAOFD0000

ORFS Tube Nut

DAOFR000B

Brazed Sleeve Sleeve ORFS - Socket Welding not Galvanized

DAOFR0000

Sleeve

DAOF51245

Straight Connector ORFS Male - ORFS Male

DAOF5105M

Straight Connector ORFS Male - BSPP 60° Male

DAOF5107M

Straight Connector ORFS Male - BSPT 60° Male

DAOF5128M

Straight Connector ORFS Male - NPTF 60° Male

DAOF5152M

Straight Connector ORFS Male - Metric 60° Male Cone

DAOF5125M

Straight Connector ORFS Male - JIC 74° Male

DAOF5105F

Straight Connector ORFS Male - BSPP Fixed Female

DAOF51305

Straight Connector ORFS Male - SAE Male + O Ring

DAOF5106Q

Straight ORFS Male - BSPP Male + Retaining Ring + O Ring

DAOF51065

Straight Connector ORFS Male - BSPP Male + O Ring

DAOF5152Q

Straight ORFS Male - Metric Male + Retaining Ring + O Ring

DAOF51525

Straight Connector ORFS Male - Metric Male + O Ring

DAOF51061

Straight Connector ORFS Male - BSPP Male with ED Ring

DAOF51521

Straight Connector ORFS Male - Metric Male with ED Ring

DAOF5128F

Straight Connector ORFS Male - NPTF Fixed Female

DAOF51241

Straight Connector ORFS Male - ORFS Swivel Female

DAOF51251

Straight Connector ORFS Male - JIC 74° Swivel Female

DAOF5100B

Straight Connector ORFS Male - Metric / Imperial Tube - Socket Welding - SW

DAOF51000

ORFS Male Plug

DAOF11305

Straight Connector ORFS Swivel Female - SAE Male O Ring

DAOF31245

Straight Connector ORFS Swivel Female - ORFS Male

DAOF1105M

Straight Connector ORFS Swivel Female - BSPP 60° Male Cone

DAOF1125M

Straight Connector ORFS Swivel Female - JIC 74°Male

DAOF1107M

Straight Connector ORFS Swivel Female - BSPT Male 60° Cone

DAOF1106Q

Straight Connector ORFS Male - BSPT Male + O Ring + Retaining Ring

DAOF11061

Straight Connector ORFS Swivel Female - BSPP Male with ED Ring

DAOF1128M

Straight Connector ORFS Swivel Female - NPTF Male 60°

DAOF31000

ORFS Female Cap

DAOF11241

Straight Connector ORFS Swivel Female

DAOF1128F

Straight Connector ORFS Swivel Female - NPTF Fixed Male

DAOF5124T

Straight Connector Bulkhead ORFS Male - ORFS Male

DAOFT1305

Straight Connector Bulkhead ORFS Male - SAE Male O Ring

DAOFT1061

Straight Connector Bulkhead ORFS Male - BSPP 60° Male 60° with ED Ring

DAOFT128M

Straight Connector Bulkhead ORFS Male - NPTF Male 60°

DAOF5130J

Straight Long Connector ORFS Male - SAE Male + O Ring

DAOFLN

ORFS Bulkhead Nut

DAOF54245

45°Elbow Connector ORFS Male - ORFS Male

DAOF54241

45° Elbow Connector ORFS Male - ORFS Swivel Female

DAOF54305

45° Adjustable Elbow ORFS Male - SAE Male O Ring

DAOF5406Q

45° Adjustable Elbow ORFS Male - BSPP Male + O Ring + Retaining Ring

DAOF54065

45° Adjustable Elbow ORFS Male - BSPP Male + O Ring

DAOF5452Q

45° Adjustable Elbow ORFS Male - Metric Male + O Ring + Retaining Ring

DAOF54525

45° Adjustable Elbow ORFS Male - Metric Male + O Ring

DAOF5428M

45° Elbow Connector ORFS Male - NPTF Male

DAOF5424T

45° Bulkhead Elbow ORFS Male - ORFS Male

DAOF59245

90° Elbow Connector ORFS Male - ORFS Male

DAOF59241

90° Elbow Connector ORFS Male - ORFS Swivel Female

DAOF59305

90° Adjustable Elbow ORFS Male - SAE Male O Ring

DAOF5906Q

90° Adjustable Elbow ORFS Male - BSPP Male + O Ring + Retaining Ring

DAOF59065

90° Adjustable Elbow ORFS Male - BSPP Male + O Ring

DAOF5952Q

90° Adjustable Elbow ORFS Male - Metric Male + O Ring + Retaining Ring

DAOF59525

90° Adjustable Elbow ORFS Male - Metric Male + O Ring

DAOF5928M

90° Elbow Connector ORFS Male - NPTF Male 60°

DAOF5907M

90° Elbow Connector ORFS Male - BSPT Male

DAOF5924T

90° Elbow Bulkhead Connector ORFS Male - ORFS Male

DAOF19305

90° Adjustable Elbow ORFS Swivel Female - SAE Male O Ring

DAOF1906Q

90° Adjustable Elbow ORFS Swivel Female - BSPP Male + O Ring + Retaining Ring

DAOF59251

90° Elbow ORFS Male - JIC Swivel Female 74°

DAOF5930J

90° Adjustable Long Elbow ORFS Male - SAE Male O Ring

DAOF59305-LL

90° Adjustable X-Long Elbow ORFS Male - SAE Male O Ring

DAOF5906Y

90° Adjustable Long Elbow ORFS Male - BSPP Male + O Ring + Retaining Ring

DAOF5906J

90° Adjustable Long Elbow ORFS Male - BSPP Male + O Ring

DAOF5952Y

90° Adjustable Long Elbow ORFS Male - Metric Male + O Ring + Retaining Ring

DAOF5952J

90° Adjustable Long Elbow ORFS Male - Metric Male + O Ring

DAOF5T245

Tee Connector ORFS Male

DAOF5T28M

Branch Tee Connector ORFS Male - NPTF Male

DAOF5T241

Branch Tee Connector ORFS Male - ORFS Swivel Female

DAOF5T24T

Branch Tee Bulkhead Connector ORFS Male - ORFS Male

DAOF5T305

Branch Adjustable Tee ORFS Male - SAE Male O Ring

DAOF5T06Q

Branch Adjustable Tee ORFS Male - BSPP Male + O Ring + Retaining Ring

DAOF5T065

Branch Adjustable Tee ORFS Male - BSPP Male + O Ring

DAOF5T52Q

Branch Adjustable Tee ORFS Male - Metric Male + O Ring + Retaining Ring

DAOF5T525

Branch Adjustable Tee ORFS Male - Metric Male + O Ring

DAOF3T245

Branch Tee ORFS Swivel Female - ORFS Male

DAOF5L241

Run Tee ORFS Male - ORFS Swivel Female

DAOF5L305

Run Adjustable Tee ORFS Male - SAE Male O Ring

DAOF5L06Q

Run Adjustable Tee ORFS Male - BSPP Male + O Ring + Retaining Ring

DAOF5L065

Run Adjustable Tee ORFS Male - BSPP Male + O Ring

DAOF5L52Q

Run Adjustable Tee ORFS Male - Metric Male + O Ring + Retaining Ring

DAOF5L525

Run Adjustable Tee ORFS Male - Metric Male + O Ring

DAOF5L24T

Run Tee Bulkhead Connector ORFS Male - ORFS Male

DAOF3L245

Run Tee ORFS Swivel Female - ORFS Male

DAOF5X245

Cross Connector ORFS Male

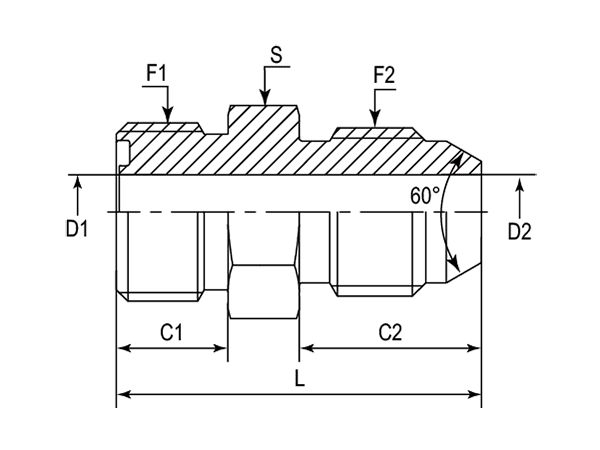

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-	-	UNF	BSPP	mm	mm	mm	mm	mm	mm
-01	DAOF5105JM-0404	9/16"-19	1/4"-19	9.80	16.00	4.00	4.00	35.00	17.00
-06	DAOF5105JM-0606	11/16"-16	3/8"-19	11.20	18.00	6.71	8.50	39.00	19.00
-08	DAOF5105JM-0808	13/16"-16	1/2"-14	12.80	20.00	9.30	9.30	43.00	22.00
-10	DAOF5105JM-1010	1"-14	5/8"-14	15.49	20.00	12.00	12.00	44.50	27.00
-12	DAOF5105JM-1212	1-3/16''-12	3/4"-14	17.02	22.00	15.50	15.50	49.00	32.00

DAOF5105JM Straight Connector ORFS Male - JIS BSPP Male 60° Cone
