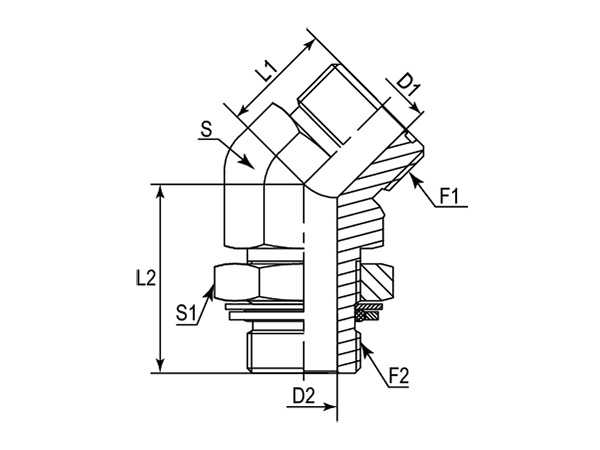

* Filter the F1 Thread through selecting the -XX options
| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | BSPP | mm | mm | mm | mm | mm | mm |
| -01 | DAOF5406Q-0402 | 9/16"-18 | 1/8"-28 | 16.00 | 26.50 | 4.37 | 4.40 | 14.00 | 14.00 |
| -01 | DAOF5406Q-0404 | 9/16"-18 | 1/4"-19 | 16.00 | 29.00 | 4.37 | 7.50 | 14.00 | 19.00 |
| -01 | DAOF5406Q-0406 | 9/16"-18 | 3/8"-19 | 17.30 | 33.00 | 4.37 | 9.90 | 19.00 | 22.00 |
| -06 | DAOF5406Q-0604 | 11/16"-16 | 1/4"-19 | 18.80 | 31.00 | 6.71 | 7.50 | 19.00 | 19.00 |
| -06 | DAOF5406Q-0606 | 11/16"-16 | 3/8"-19 | 18.80 | 33.00 | 6.71 | 9.90 | 19.00 | 22.00 |
| -06 | DAOF5406Q-0608 | 11/16"-16 | 1/2"-14 | 18.80 | 38.50 | 6.71 | 12.30 | 22.00 | 27.00 |
| -08 | DAOF5406Q-0804 | 13/16"-16 | 1/4"-19 | 20.30 | 32.30 | 9.60 | 7.50 | 19.00 | 19.00 |
| -08 | DAOF5406Q-0806 | 13/16"-16 | 3/8"-19 | 20.30 | 33.00 | 9.60 | 9.90 | 19.00 | 22.00 |
| -08 | DAOF5406Q-0808 | 13/16"-16 | 1/2"-14 | 21.50 | 36.50 | 9.50 | 12.30 | 22.00 | 27.00 |
| -10 | DAOF5406Q-1008 | 1"-14 | 1/2"-14 | 23.40 | 40.40 | 12.29 | 12.30 | 27.00 | 27.00 |
| -10 | DAOF5406Q-1012 | 1"-14 | 3/4"-14 | 24.40 | 50.00 | 12.29 | 15.50 | 27.00 | 36.00 |
| -12 | DAOF5406Q-1212 | 1-3/16"-12 | 3/4"-14 | 25.90 | 50.00 | 15.47 | 15.50 | 30.00 | 36.00 |
| -12 | DAOF5406Q-1216 | 1-3/16"-12 | 1"-11 | 29.50 | 52.30 | 15.47 | 21.50 | 36.00 | 41.00 |
| -16 | DAOF5406Q-1616 | 1-7/16"-12 | 1"-11 | 30.00 | 51.80 | 20.60 | 20.60 | 36.00 | 41.00 |
| -16 | DAOF5406Q-1620 | 1-7/16"-12 | 1-1/4"-11 | 32.00 | 53.50 | 20.60 | 26.00 | 41.00 | 50.00 |
| -20 | DAOF5406Q-2016 | 1-11/16"-12 | 1"-11 | 32.00 | 53.50 | 26.00 | 21.50 | 41.00 | 41.00 |
| -20 | DAOF5406Q-2020 | 1-11/16"-12 | 1-1/4"-11 | 32.00 | 53.50 | 26.00 | 26.00 | 41.00 | 50.00 |
| -20 | DAOF5406Q-2024 | 1-11/16"-12 | 1-1/2"-11 | 36.80 | 53.60 | 26.00 | 33.00 | 48.00 | 55.00 |
