DAOF5T52Q Branch Adjustable Tee ORFS Male - Metric Male + O Ring + Retaining Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS UNF
  • 5Connection TypeMale
  • TAdaptor StructureBranch Tee
  • 52Thread TypesMetric
  • QConnection TypeMale + O Ring + Retaining Ring
  • DME&JDE Code: DAOF5T52Q
  • Product Type: hydraulic adaptor
  • Standard: ORFS
  • Structure: Branch Tee
  • Connection Type: Adjustable Male × Male × Male
  • Thread Types: UNF × UNF × Metric
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DAOF5T52Q
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

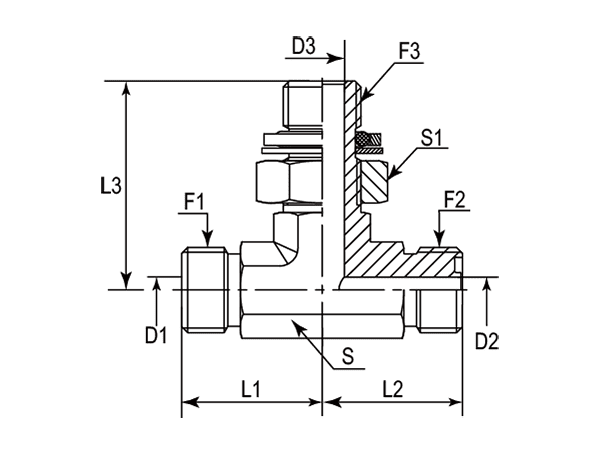

A drawing of DAOF5T52Q hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) F3(Thread) L1 L2 L3 D1 D2 D3 S S1
- - UNF UNF METRIC mm mm mm mm mm mm mm mm
-01 DAOF5T52Q-0410 9/16"-18 9/16"-18 M10X1 21.50 21.50 32.50 4.37 4.37 3.00 14 14
-01 DAOF5T52Q-0412 9/16"-18 9/16"-18 M12X1.5 21.50 21.50 32.50 4.37 4.37 4.00 14 17
-06 DAOF5T52Q-0614 11/16"-16 11/16"-16 M14X1.5 25.00 25.00 36.00 6.71 6.71 6.00 19 19
-06 DAOF5T52Q-0616 11/16"-16 11/16"-16 M16X1.5 25.00 25.00 37.00 6.71 6.71 7.00 19 22
-08 DAOF5T52Q-0816 13/16"-16 13/16"-16 M16X1.5 28.00 28.00 37.00 9.60 9.60 7.00 19 22
-08 DAOF5T52Q-0818 13/16"-16 13/16"-16 M18X1.5 28.00 28.00 40.00 9.60 9.60 9.00 19 24
-08 DAOF5T52Q-0822 13/16"-16 13/16"-16 M22X1.5 31.50 31.50 49.00 9.60 9.60 12.00 27 27
-10 DAOF5T52Q-1018 1"-14 1"-14 M18X1.5 33.50 33.50 48.00 12.29 12.29 9.00 27 24
-10 DAOF5T52Q-1022 1"-14 1"-14 M22X1.5 33.50 33.50 49.00 12.29 12.29 12.00 27 27
-12 DAOF5T52Q-1227 1-3/16"-12 1-3/16"-12 M27X2 37.50 37.50 55.50 15.47 15.47 15.00 30 32
-12 DAOF5T52Q-1233 1-3/16"-12 1-3/16"-12 M33X2 41.50 41.50 60.00 15.50 15.50 20.00 36 41
-16 DAOF5T52Q-1633 1-7/16"-12 1-7/16"-12 M33X2 42.00 42.00 60.00 20.60 20.60 20.00 36 41
-20 DAOF5T52Q-2033 1-11/16"-12 1-11/16"-12 M33X2 44.70 44.70 62.50 26.00 26.00 20.00 41 41
-24 DAOF5T52Q-2448 2"-12 2"-12 M48X2 47.90 47.90 66.00 32.00 32.00 32.00 48 55
