DAOF59305 Adaptor – DME&JDE Group

Technical Data of DAOF59305

* Filter the F1 Thread through selecting the -XX options

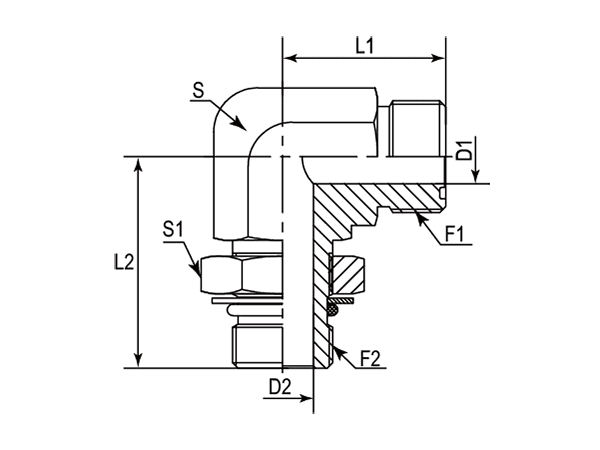

A drawing of DAOF59305 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1	Hex
-	-	UNF	UNF	mm	mm	mm	mm	-	-	-
-01	DAOF59305-0402	9/16"-18	5/16"-24	21.59	26.84	4.37	1.57	14 mm	11 mm	Metric
-01	DAOF59305-0403	9/16"-18	3/8"-24	21.59	29.80	4.37	3.18	14 mm	14 mm	Metric
-01	DAOF59305-0404	9/16"-18	7/16"-20	21.50	32.70	4.37	4.37	14 mm	17 mm	Metric
-01	DAOF59305-0405	9/16"-18	1/2"-20	21.60	32.80	4.37	6.00	14 mm	17 mm	Metric
-01	DAOF59305-0406	9/16"-18	9/16"-18	23.37	36.83	4.37	6.71	19 mm	19 mm	Metric
-01	DAOF59305-0408	9/16"-18	3/4"-16	24.60	40.60	4.37	9.60	19 mm	24 mm	Metric
-01	DAOF59305-0402IN	9/16"-18	5/16"-24	21.59	26.84	4.37	1.57	9/16"	7/16"	Imperial
-01	DAOF59305-0403IN	9/16"-18	3/8"-24	21.59	29.80	4.37	3.18	9/16"	9/16"	Imperial
-01	DAOF59305-0404IN	9/16"-18	7/16"-20	21.50	32.70	4.37	4.37	9/16"	5/8"	Imperial
-01	DAOF59305-0405IN	9/16"-18	1/2"-20	21.60	32.80	4.37	6.00	9/16"	5/8"	Imperial
-01	DAOF59305-0406IN	9/16"-18	9/16"-18	23.37	36.83	4.37	6.71	3/4"	3/4"	Imperial
-01	DAOF59305-0408IN	9/16"-18	3/4"-16	24.60	40.60	4.37	9.60	3/4"	15/16"	Imperial
-06	DAOF59305-0602	11/16"-16	5/16"-24	25.00	30.40	6.71	1.57	19 mm	11 mm	Metric
-06	DAOF59305-0604	11/16"-16	7/16"-20	25.00	35.00	6.50	4.50	19 mm	17 mm	Metric
-06	DAOF59305-0606	11/16"-16	9/16"-18	24.90	36.80	6.71	6.71	19 mm	19 mm	Metric
-06	DAOF59305-0608	11/16"-16	3/4"-16	26.50	40.60	6.50	10.00	19 mm	24 mm	Metric
-06	DAOF59305-0610	11/16"-16	7/8"-14	30.00	50.00	6.50	12.50	27 mm	27 mm	Metric
-06	DAOF59305-0612	11/16"-16	1-1/16"-12	31.80	55.10	6.71	15.47	30 mm	36 mm	Metric
-06	DAOF59305-0616	11/16"-16	1-5/16"-12	35.60	59.70	6.71	20.60	36 mm	41 mm	Metric
-06	DAOF59305-0602IN	11/16"-16	5/16"-24	25.00	30.40	6.71	1.57	3/4"	7/16"	Imperial
-06	DAOF59305-0604IN	11/16"-16	7/16"-20	25.00	35.00	6.50	4.50	3/4"	5/8"	Imperial
-06	DAOF59305-0606IN	11/16"-16	9/16"-18	24.90	36.80	6.71	6.71	3/4"	3/4"	Imperial
-06	DAOF59305-0608IN	11/16"-16	3/4"-16	26.50	40.60	6.50	10.00	3/4"	15/16"	Imperial
-06	DAOF59305-0610IN	11/16"-16	7/8"-14	30.00	50.00	6.50	12.50	1-1/16"	1-1/16"	Imperial
-06	DAOF59305-0612IN	11/16"-16	1-1/16"-12	31.80	55.10	6.71	15.47	1-3/16"	1-3/8"	Imperial
-06	DAOF59305-0616IN	11/16"-16	1-5/16"-12	35.60	59.70	6.71	20.60	1-7/16"	1-5/8"	Imperial
-08	DAOF59305-0804	13/16"-16	7/16"-20	28.00	35.00	9.50	4.50	19 mm	17 mm	Metric
-08	DAOF59305-0806	13/16"-16	9/16"-18	28.00	36.60	9.60	6.71	19 mm	19 mm	Metric
-08	DAOF59305-0808	13/16"-16	3/4"-16	28.00	40.60	9.60	9.60	19 mm	24 mm	Metric
-08	DAOF59305-0810	13/16"-16	7/8"-14	31.50	50.00	9.60	12.50	27 mm	27 mm	Metric
-08	DAOF59305-0812	13/16"-16	1-1/16"-12	34.00	55.00	9.60	15.47	30 mm	36 mm	Metric
-08	DAOF59305-0804IN	13/16"-16	7/16"-20	28.00	35.00	9.50	4.50	3/4"	5/8"	Imperial
-08	DAOF59305-0806IN	13/16"-16	9/16"-18	28.00	36.60	9.60	6.71	3/4"	3/4"	Imperial
-08	DAOF59305-0808IN	13/16"-16	3/4"-16	28.00	40.60	9.60	9.60	3/4"	15/16"	Imperial
-08	DAOF59305-0810IN	13/16"-16	7/8"-14	31.50	50.00	9.60	12.50	1-1/16"	1-1/16"	Imperial
-08	DAOF59305-0812IN	13/16"-16	1-1/16"-12	34.00	55.00	9.60	15.47	1-3/16"	1-3/8"	Imperial
-10	DAOF59305-1008	1"-14	3/4"-16	33.50	46.00	12.50	10.00	27 mm	24 mm	Metric
-10	DAOF59305-1010	1"-14	7/8"-14	33.30	50.00	12.29	12.29	27 mm	27 mm	Metric
-10	DAOF59305-1012	1"-14	1-1/16"-12	35.80	55.10	12.29	15.47	30 mm	36 mm	Metric
-10	DAOF59305-1008IN	1"-14	3/4"-16	33.50	46.00	12.50	10.00	1-1/16"	15/16"	Imperial
-10	DAOF59305-1010IN	1"-14	7/8"-14	33.30	50.00	12.29	12.29	1-1/16"	1-1/16"	Imperial
-10	DAOF59305-1012IN	1"-14	1-1/16"-12	35.80	55.10	12.29	15.47	1-3/16"	1-3/8"	Imperial
-12	DAOF59305-1208	1-3/16"-12	3/4"-16	37.50	46.50	15.50	10.00	30 mm	24 mm	Metric
-12	DAOF59305-1210	1-3/16"-12	7/8"-14	37.50	50.90	15.50	12.50	30 mm	27 mm	Metric
-12	DAOF59305-1212	1-3/16"-12	1-1/16"-12	37.50	55.00	15.50	15.50	30 mm	36 mm	Metric
-12	DAOF59305-1216	1-3/16"-12	1-5/16"-12	41.00	59.70	15.47	21.50	36 mm	41 mm	Metric
-12	DAOF59305-1220	1-3/16"-12	1-5/8"-12	44.20	62.20	15.47	26.01	41 mm	50 mm	Metric
-12	DAOF59305-1208IN	1-3/16"-12	3/4"-16	37.50	46.50	15.50	10.00	1-3/16"	15/16"	Imperial
-12	DAOF59305-1210IN	1-3/16"-12	7/8"-14	37.50	50.90	15.50	12.50	1-3/16"	1-1/16"	Imperial
-12	DAOF59305-1212IN	1-3/16"-12	1-1/16"-12	37.50	55.00	15.50	15.50	1-3/16"	1-3/8"	Imperial
-12	DAOF59305-1216IN	1-3/16"-12	1-5/16"-12	41.00	59.70	15.47	21.50	1-7/16"	1-5/8"	Imperial
-12	DAOF59305-1220IN	1-3/16"-12	1-5/8"-12	44.20	62.20	15.47	26.01	1-5/8"	1-7/8"	Imperial
-16	DAOF59305-1610	1-7/16"-12	7/8"-14	41.50	54.60	20.50	12.50	36 mm	27 mm	Metric
-16	DAOF59305-1612	1-7/16"-12	1-1/16"-12	41.70	58.90	20.60	15.47	36 mm	36 mm	Metric
-16	DAOF59305-1614	1-7/16"-12	1-3/16"-12	41.66	58.93	20.60	18.00	36 mm	41 mm	Metric
-16	DAOF59305-1616	1-7/16"-12	1-5/16"-12	41.70	59.70	20.60	20.60	36 mm	41 mm	Metric
-16	DAOF59305-1620	1-7/16"-12	1-5/8"-12	44.70	62.20	20.50	27.50	41 mm	50 mm	Metric
-16	DAOF59305-1624	1-7/16"-12	1-7/8"-12	48.80	65.80	20.60	32.00	50 mm	55 mm	Metric
-16	DAOF59305-1610IN	1-7/16"-12	7/8"-14	41.50	54.60	20.50	12.50	1-7/16"	1-1/16"	Imperial
-16	DAOF59305-1612IN	1-7/16"-12	1-1/16"-12	41.70	58.90	20.60	15.47	1-7/16"	1-3/8"	Imperial
-16	DAOF59305-1614IN	1-7/16"-12	1-3/16"-12	41.66	58.93	20.60	18.00	1-7/16"	1-1/2"	Imperial
-16	DAOF59305-1616IN	1-7/16"-12	1-5/16"-12	41.70	59.70	20.60	20.60	1-7/16"	1-5/8"	Imperial
-16	DAOF59305-1620IN	1-7/16"-12	1-5/8"-12	44.70	62.20	20.50	27.50	1-5/8"	1-7/8"	Imperial
-16	DAOF59305-1624IN	1-7/16"-12	1-7/8"-12	48.80	65.80	20.60	32.00	1-7/8"	2-1/8"	Imperial
-20	DAOF59305-2012	1-11/16"-12	1-1/16"-12	44.70	61.10	26.00	15.47	41 mm	36 mm	Metric
-20	DAOF59305-2016	1-11/16"-12	1-5/16"-12	44.70	62.20	26.00	21.50	41 mm	41 mm	Metric
-20	DAOF59305-2020	1-11/16"-12	1-5/8"-12	44.50	62.00	26.00	27.50	41 mm	50 mm	Metric
-20	DAOF59305-2024	1-11/16"-12	1-7/8"-12	48.80	65.80	26.00	32.00	50 mm	55 mm	Metric
-20	DAOF59305-2012IN	1-11/16"-12	1-1/16"-12	44.70	61.10	26.00	15.47	1-5/8"	1-3/8"	Imperial
-20	DAOF59305-2016IN	1-11/16"-12	1-5/16"-12	44.70	62.20	26.00	21.50	1-5/8"	1-5/8"	Imperial
-20	DAOF59305-2020IN	1-11/16"-12	1-5/8"-12	44.50	62.00	26.00	27.50	1-5/8"	1-7/8"	Imperial
-20	DAOF59305-2024IN	1-11/16"-12	1-7/8"-12	48.80	65.80	26.00	32.00	1-7/8"	2-1/8"	Imperial
-24	DAOF59305-2420	2"-12	1-5/8"-12	49.00	66.00	32.00	27.50	50 mm	50 mm	Metric
-24	DAOF59305-2424	2"-12	1-7/8"-12	49.00	66.00	32.00	33.50	50 mm	55 mm	Metric
-24	DAOF59305-2420IN	2"-12	1-5/8"-12	49.00	66.00	32.00	27.50	1-7/8"	1-7/8"	Imperial
-24	DAOF59305-2424IN	2"-12	1-7/8"-12	49.00	66.00	32.00	33.50	1-7/8"	2-1/8"	Imperial
