DAOF54525 45° Adjustable Elbow ORFS Male - Metric Male + O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS UNF
  • 5Connection TypeMale
  • 4Adaptor Structure45° Elbow
  • 52Thread TypesMetric
  • MConnection TypeMale + O Ring
  • DME&JDE Code: DAOF54525
  • Product Type: hydraulic adaptor
  • Standard: ORFS
  • Structure: 45° Elbow
  • Connection Type: Adjustable Male × Male
  • Thread Types: UNF × Metric 60° + O Ring
  • Sealing Method: O Rings
Technical Data of DAOF54525
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

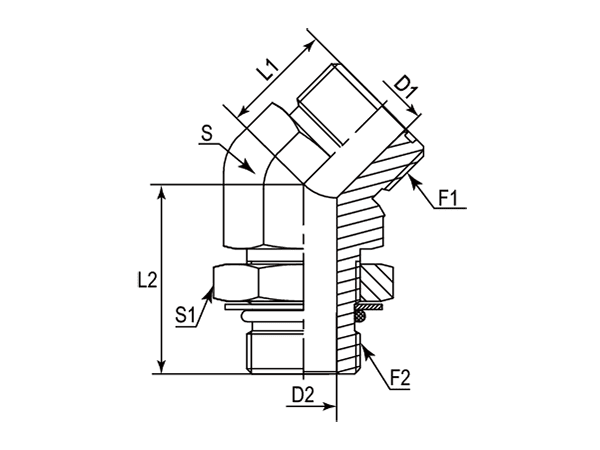

A drawing of DAOF54525 hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1
- - UNF Metric mm mm mm mm mm mm
-01 DAOF54525-0412 9/16"-18 M12X1.5 16.00 30.00 4.37 4.37 14.00 17.00
-01 DAOF54525-0414 9/16"-18 M14X1.5 18.50 29.50 4.37 6.00 14.00 19.00
-06 DAOF54525-0614 11/16"-16 M14X1.5 18.80 31.00 6.71 6.00 19.00 19.00
-06 DAOF54525-0616 11/16"-16 M16X1.5 19.00 33.00 6.71 7.00 19.00 22.00
-08 DAOF54525-0814 13/16"-16 M14X1.5 20.50 31.00 9.60 6.00 19.00 19.00
-08 DAOF54525-0818 13/16"-16 M18X1.5 20.50 36.50 9.60 9.00 19.00 24.00
-10 DAOF54525-1022 1"-14 M22X1.5 23.50 45.00 12.29 12.00 27.00 27.00
-12 DAOF54525-1227 1-3/16"-12 M27X2 26.00 50.00 15.47 15.00 30.00 32.00
-16 DAOF54525-1633 1-7/16"-12 M33X2 30.00 52.50 20.60 20.00 36.00 41.00
-20 DAOF54525-2042 1-11/16"-12 M42X2 32.00 53.50 26.00 26.00 41.00 50.00
-24 DAOF54525-2448 2"-12 M48X2 37.00 53.50 32.00 32.00 48.00 55.00
