DAOF54305 Adaptor – DME&JDE Group

Technical Data of DAOF54305

* Filter the F1 Thread through selecting the -XX options

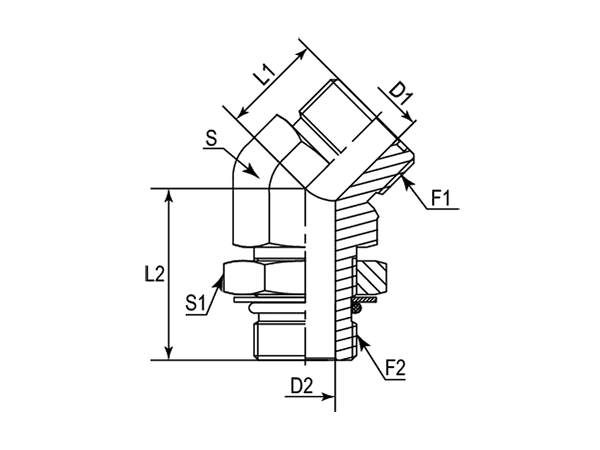

A drawing of DAOF54305 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1	Hex
-	-	UNF	UNF	mm	mm	mm	mm	-	-	-
-01	DAOF54305-0404	9/16"-18	7/16"-20	16.00	30.00	4.37	4.37	14 mm	17 mm	Metric
-01	DAOF54305-0406	9/16"-18	9/16"-18	17.30	33.00	4.37	6.71	19 mm	19 mm	Metric
-01	DAOF54305-0408	9/16"-18	3/4"-16	17.30	36.30	4.37	9.60	19 mm	24 mm	Metric
-01	DAOF54305-0404IN	9/16"-18	7/16"-20	16.00	30.00	4.37	4.37	9/16"	5/8"	Imperial
-01	DAOF54305-0406IN	9/16"-18	9/16"-18	17.30	33.00	4.37	6.71	3/4"	3/4"	Imperial
-04	DAOF54305-0408IN	9/16"-18	3/4"-16	17.30	36.30	4.37	9.60	3/4"	15/16"	Imperial
-06	DAOF54305-0604	11/16"-16	7/16"-20	18.80	31.00	6.71	4.37	19 mm	17 mm	Metric
-06	DAOF54305-0606	11/16"-16	9/16"-18	18.80	33.00	6.71	6.71	19 mm	19 mm	Metric
-06	DAOF54305-0608	11/16"-16	3/4"-16	18.80	36.30	6.71	9.60	19 mm	24 mm	Metric
-06	DAOF54305-0610	11/16"-16	7/8"-14	20.00	44.70	6.71	12.29	27 mm	27 mm	Metric
-06	DAOF54305-0612	11/16"-16	1-1/16"-12	20.00	50.00	6.71	15.47	27 mm	36 mm	Metric
-06	DAOF54305-0604IN	11/16"-16	7/16"-20	18.80	31.00	6.71	4.37	3/4"	5/8"	Imperial
-06	DAOF54305-0606IN	11/16"-16	9/16"-18	18.80	33.00	6.71	6.71	3/4"	3/4"	Imperial
-06	DAOF54305-0608IN	11/16"-16	3/4"-16	18.80	36.30	6.71	9.60	3/4"	15/16"	Imperial
-06	DAOF54305-0610IN	11/16"-16	7/8"-14	20.00	44.70	6.71	12.29	1-1/16"	1-1/16"	Imperial
-06	DAOF54305-0612IN	11/16"-16	1-1/16"-12	20.00	50.00	6.71	15.47	1-1/16"	1-3/8"	Imperial
-08	DAOF54305-0806	13/16"-16	9/16"-18	20.30	32.30	9.60	6.71	19 mm	19 mm	Metric
-08	DAOF54305-0808	13/16"-16	3/4"-16	20.30	36.30	9.50	10.00	19 mm	24 mm	Metric
-08	DAOF54305-0810	13/16"-16	7/8"-14	20.80	44.70	9.60	12.29	27 mm	27 mm	Metric
-08	DAOF54305-0812	13/16"-16	1-1/16"-12	22.50	50.00	9.60	15.50	30 mm	36 mm	Metric
-08	DAOF54305-0806IN	13/16"-16	9/16"-18	20.30	32.30	9.60	6.71	3/4"	3/4"	Imperial
-08	DAOF54305-0808IN	13/16"-16	3/4"-16	20.30	36.30	9.50	10.00	3/4"	15/16"	Imperial
-08	DAOF54305-0810IN	13/16"-16	7/8"-14	20.80	44.70	9.60	12.29	1-1/16"	1-1/16"	Imperial
-08	DAOF54305-0812IN	13/16"-16	1-1/16"-12	22.50	50.00	9.60	15.50	1-3/16"	1-3/8"	Imperial
-10	DAOF54305-1008	1"-14	3/4"-16	23.50	40.20	12.50	10.00	27 mm	24 mm	Metric
-10	DAOF54305-1010	1"-14	7/8"-14	23.40	44.70	12.29	12.29	27 mm	27 mm	Metric
-10	DAOF54305-1012	1"-14	1-1/16"-12	24.50	50.00	12.50	15.47	30 mm	36 mm	Metric
-10	DAOF54305-1008IN	1"-14	3/4"-16	23.50	40.20	12.50	10.00	1-1/16"	15/16"	Imperial
-10	DAOF54305-1010IN	1"-14	7/8"-14	23.40	44.70	12.29	12.29	1-1/16"	1-1/16"	Imperial
-10	DAOF54305-1012IN	1"-14	1-1/16"-12	24.50	50.00	12.50	15.47	1-3/16"	1-3/8"	Imperial
-12	DAOF54305-1208	1-3/16"-12	3/4"-16	26.00	41.50	15.50	10.00	30 mm	24 mm	Metric
-12	DAOF54305-1210	1-3/16"-12	7/8"-14	25.90	44.70	15.47	12.29	30 mm	27 mm	Metric
-12	DAOF54305-1212	1-3/16"-12	1-1/16"-12	25.90	50.00	15.47	15.47	30 mm	36 mm	Metric
-12	DAOF54305-1216	1-3/16"-12	1-5/16"-12	29.50	52.30	15.47	20.60	36 mm	41 mm	Metric
-12	DAOF54305-1208IN	1-3/16"-12	3/4"-16	26.00	41.50	15.50	10.00	1-3/16"	15/16"	Imperial
-12	DAOF54305-1210IN	1-3/16"-12	7/8"-14	25.90	44.70	15.47	12.29	1-3/16"	1-1/16"	Imperial
-12	DAOF54305-1212IN	1-3/16"-12	1-1/16"-12	25.90	50.00	15.47	15.47	1-3/16"	1-3/8"	Imperial
-12	DAOF54305-1216IN	1-3/16"-12	1-5/16"-12	29.50	52.30	15.47	20.60	1-7/16"	1-5/8"	Imperial
-16	DAOF54305-1612	1-7/16"-12	1-1/16"-12	30.00	51.70	20.50	15.47	36 mm	36 mm	Metric
-16	DAOF54305-1616	1-7/16"-12	1-5/16"-12	30.00	52.50	20.50	21.50	36 mm	41 mm	Metric
-16	DAOF54305-1620	1-7/16"-12	1-5/8"-12	32.00	53.60	20.60	26.00	41 mm	50 mm	Metric
-16	DAOF54305-1612IN	1-7/16"-12	1-1/16"-12	30.00	51.70	20.50	15.47	1-7/16"	1-3/8"	Imperial
-16	DAOF54305-1616IN	1-7/16"-12	1-5/16"-12	30.00	52.50	20.50	21.50	1-7/16"	1-5/8"	Imperial
-16	DAOF54305-1620IN	1-7/16"-12	1-5/8"-12	32.00	53.60	20.60	26.00	1-5/8"	1-7/8"	Imperial
-20	DAOF54305-2016	1-11/16"-12	1-5/16"-12	32.00	53.50	26.00	21.50	41 mm	41 mm	Metric
-20	DAOF54305-2020	1-11/16"-12	1-5/8"-12	32.00	53.60	26.00	27.50	41 mm	50 mm	Metric
-20	DAOF54305-2016IN	1-11/16"-12	1-5/16"-12	32.00	53.50	26.00	21.50	1-5/8"	1-5/8"	Imperial
-20	DAOF54305-2020IN	1-11/16"-12	1-5/8"-12	32.00	53.60	26.00	27.50	1-5/8"	1-7/8"	Imperial
-24	DAOF54305-2424	2"-12	1-7/8"-12	36.80	53.60	32.00	32.00	50 mm	55 mm	Metric
-24	DAOF54305-2424IN	2"-12	1-7/8"-12	36.80	53.60	32.00	32.00	1-7/8"	2-1/8"	Imperial
