DAOF51305 Adaptor – DME&JDE Group

Technical Data of DAOF51305

* Filter the F1 Thread through selecting the -XX options

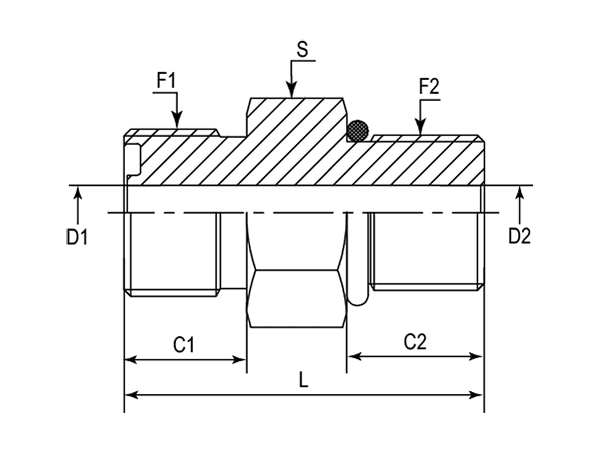

A drawing of DAOF51305 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S	Hex
-	-	UNF	UNF	mm	mm	mm	mm	mm	-	-
-01	DAOF51305-0402	9/16"-18	5/16"-24	9.80	9.60	4.37	1.60	29.00	17 mm	Metric
-01	DAOF51305-0403	9/16"-18	3/8"-24	9.80	9.60	3.18	3.18	27.40	17 mm	Metric
-01	DAOF51305-0404	9/16"-18	7/16"-20	9.80	11.00	4.37	4.37	28.80	17 mm	Metric
-01	DAOF51305-0405	9/16"-18	1/2"-20	9.80	11.00	4.37	5.49	29.00	17 mm	Metric
-01	DAOF51305-0406	9/16"-18	9/16"-18	9.80	11.99	4.37	6.71	30.50	19 mm	Metric
-01	DAOF51305-0408	9/16"-18	3/4"-16	10.00	14.00	4.50	10.00	33.50	22 mm	Metric
-01	DAOF51305-0410	9/16"-18	7/8"-14	9.80	16.00	4.37	12.29	37.40	27 mm	Metric
-01	DAOF51305-0402IN	9/16"-18	5/16"-24	9.80	9.60	4.37	1.60	29.00	5/8"	Imperial
-01	DAOF51305-0403IN	9/16"-18	3/8"-24	9.80	9.60	3.18	3.18	27.40	5/8"	Imperial
-01	DAOF51305-0404IN	9/16"-18	7/16"-20	9.80	11.00	4.37	4.37	28.80	5/8"	Imperial
-01	DAOF51305-0405IN	9/16"-18	1/2"-20	9.80	11.00	4.37	5.49	29.00	5/8"	Imperial
-01	DAOF51305-0406IN	9/16"-18	9/16"-18	9.80	11.99	4.37	6.71	30.50	3/4"	Imperial
-01	DAOF51305-0408IN	9/16"-18	3/4"-16	10.00	14.00	4.50	10.00	33.50	7/8"	Imperial
-01	DAOF51305-0410IN	9/16"-18	7/8"-14	9.80	16.00	4.37	12.29	37.40	1"	Imperial
-06	DAOF51305-0603	11/16"-16	3/8"-24	11.20	9.50	6.71	3.00	32.61	19 mm	Metric
-06	DAOF51305-0604	11/16"-16	7/16"-20	11.20	11.00	6.71	4.37	34.11	19 mm	Metric
-06	DAOF51305-0605	11/16"-16	1/2"-20	11.20	11.00	6.00	6.00	30.80	19 mm	Metric
-06	DAOF51305-0606	11/16"-16	9/16"-18	11.00	12.00	6.50	6.50	32.00	19 mm	Metric
-06	DAOF51305-0608	11/16"-16	3/4"-16	11.20	14.00	6.71	9.60	35.11	22 mm	Metric
-06	DAOF51305-0610	11/16"-16	7/8"-14	11.00	16.00	6.50	12.30	38.80	27 mm	Metric
-06	DAOF51305-0612	11/16"-16	1-1/16"-12	11.20	18.49	6.71	15.47	42.80	32 mm	Metric
-06	DAOF51305-0616	11/16"-16	1-5/16"-12	11.20	18.49	6.71	20.60	44.00	41 mm	Metric
-06	DAOF51305-0603IN	11/16"-16	3/8"-24	11.20	9.50	6.71	3.00	32.61	3/4"	Imperial
-06	DAOF51305-0604IN	11/16"-16	7/16"-20	11.20	11.00	6.71	4.37	34.11	3/4"	Imperial
-06	DAOF51305-0605IN	11/16"-16	1/2"-20	11.20	11.00	6.00	6.00	30.80	3/4"	Imperial
-06	DAOF51305-0606IN	11/16"-16	9/16"-18	11.00	12.00	6.50	6.50	32.00	3/4"	Imperial
-06	DAOF51305-0608IN	11/16"-16	3/4"-16	11.20	14.00	6.71	9.60	35.11	7/8"	Imperial
-06	DAOF51305-0610IN	11/16"-16	7/8"-14	11.00	16.00	6.50	12.30	38.80	1-1/16"	Imperial
-06	DAOF51305-0612IN	11/16"-16	1-1/16"-12	11.20	18.49	6.71	15.47	42.80	1-1/4"	Imperial
-06	DAOF51305-0616IN	11/16"-16	1-5/16"-12	11.20	18.49	6.71	20.60	44.00	1-1/2"	Imperial
-08	DAOF51305-0804	13/16"-16	7/16"-20	12.80	11.00	9.50	4.50	36.40	22 mm	Metric
-08	DAOF51305-0806	13/16"-16	9/16"-18	12.80	11.99	9.60	6.71	37.40	22 mm	Metric
-08	DAOF51305-0808	13/16"-16	3/4"-16	12.80	14.00	9.60	9.60	36.60	22 mm	Metric
-08	DAOF51305-0810	13/16"-16	7/8"-14	12.80	16.00	9.60	12.29	40.50	27 mm	Metric
-08	DAOF51305-0812	13/16"-16	1-1/16"-12	13.00	18.49	9.50	15.47	44.50	32 mm	Metric
-08	DAOF51305-0816	13/16"-16	1-5/16"-12	12.80	18.49	9.60	20.60	45.40	41 mm	Metric
-08	DAOF51305-0804IN	13/16"-16	7/16"-20	12.80	11.00	9.50	4.50	36.40	7/8"	Imperial
-08	DAOF51305-0806IN	13/16"-16	9/16"-18	12.80	11.99	9.60	6.71	37.40	7/8"	Imperial
-08	DAOF51305-0808IN	13/16"-16	3/4"-16	12.80	14.00	9.60	9.60	36.60	7/8"	Imperial
-08	DAOF51305-0810IN	13/16"-16	7/8"-14	12.80	16.00	9.60	12.29	40.50	1"	Imperial
-08	DAOF51305-0812IN	13/16"-16	1-1/16"-12	13.00	18.49	9.50	15.47	44.50	1-1/4"	Imperial
-08	DAOF51305-0816IN	13/16"-16	1-5/16"-12	12.80	18.49	9.60	20.60	45.40	1-1/2"	Imperial
-10	DAOF51305-1006	1"-14	9/16"-18	15.49	11.99	12.29	6.71	41.70	27 mm	Metric
-10	DAOF51305-1008	1"-14	3/4"-16	15.49	14.00	9.60	9.60	45.20	27 mm	Metric
-10	DAOF51305-1010	1"-14	7/8"-14	15.50	16.00	12.29	12.29	43.00	27 mm	Metric
-10	DAOF51305-1012	1"-14	1-1/16"-12	15.49	18.49	12.29	12.29	47.20	32 mm	Metric
-10	DAOF51305-1014	1"-14	1-3/16"-12	15.49	18.49	12.29	18.26	47.19	36 mm	Metric
-10	DAOF51305-1016	1"-14	1-5/16"-12	15.49	18.49	12.29	20.60	48.30	41 mm	Metric
-10	DAOF51305-1006IN	1"-14	9/16"-18	15.49	11.99	12.29	6.71	41.70	1-1/16"	Imperial
-10	DAOF51305-1008IN	1"-14	3/4"-16	15.49	14.00	9.60	9.60	45.20	1-1/16"	Imperial
-10	DAOF51305-1010IN	1"-14	7/8"-14	15.50	16.00	12.29	12.29	43.00	1-1/16"	Imperial
-10	DAOF51305-1012IN	1"-14	1-1/16"-12	15.49	18.49	12.29	12.29	47.20	1-1/4"	Imperial
-10	DAOF51305-1014IN	1"-14	1-3/16"-12	15.49	18.49	12.29	18.26	47.19	1-3/8"	Imperial
-10	DAOF51305-1016IN	1"-14	1-5/16"-12	15.49	18.49	12.29	20.60	48.30	1-1/2"	Imperial
-12	DAOF51305-1206	1-3/16"-12	9/16"-18	17.02	11.99	15.47	6.71	45.00	32 mm	Metric
-12	DAOF51305-1208	1-3/16"-12	3/4"-16	17.02	14.00	15.47	9.60	48.50	32 mm	Metric
-12	DAOF51305-1210	1-3/16"-12	7/8"-14	17.02	16.00	15.50	12.50	50.60	32 mm	Metric
-12	DAOF51305-1212	1-3/16"-12	1-1/16"-12	17.02	18.49	15.47	15.47	48.60	32 mm	Metric
-12	DAOF51305-1214	1-3/16"-12	1-3/16"-12	17.02	18.49	15.47	18.26	48.70	36 mm	Metric
-12	DAOF51305-1216	1-3/16"-12	1-5/16"-12	17.02	18.49	15.47	21.50	49.50	41 mm	Metric
-12	DAOF51305-1220	1-3/16"-12	1-5/8"-12	17.02	18.49	15.47	26.00	51.80	50 mm	Metric
-12	DAOF51305-1224	1-3/16"-12	1-7/8"-12	17.02	18.50	15.47	32.00	53.50	55 mm	Metric
-12	DAOF51305-1206IN	1-3/16"-12	9/16"-18	17.02	11.99	15.47	6.71	45.00	1-1/4"	Imperial
-12	DAOF51305-1208IN	1-3/16"-12	3/4"-16	17.02	14.00	15.47	9.60	48.50	1-1/4"	Imperial
-12	DAOF51305-1210IN	1-3/16"-12	7/8"-14	17.02	16.00	15.50	12.50	50.60	1-1/4"	Imperial
-12	DAOF51305-1212IN	1-3/16"-12	1-1/16"-12	17.02	18.49	15.47	15.47	48.60	1-1/4"	Imperial
-12	DAOF51305-1214IN	1-3/16"-12	1-3/16"-12	17.02	18.49	15.47	18.26	48.70	1-3/8"	Imperial
-12	DAOF51305-1216IN	1-3/16"-12	1-5/16"-12	17.02	18.49	15.47	21.50	49.50	1-1/2"	Imperial
-12	DAOF51305-1220IN	1-3/16"-12	1-5/8"-12	17.02	18.49	15.47	26.00	51.80	1-7/8"	Imperial
-16	DAOF51305-1608	1-7/16"-12	3/4"-16	17.50	14.00	20.60	9.60	49.81	41 mm	Metric
-16	DAOF51305-1610	1-7/16"-12	7/8"-14	17.50	16.00	20.60	12.29	51.80	41 mm	Metric
-16	DAOF51305-1612	1-7/16"-12	1-1/16"-12	17.50	18.49	20.60	15.47	54.40	41 mm	Metric
-16	DAOF51305-1616	1-7/16"-12	1-5/16"-12	17.50	18.49	20.60	20.60	50.30	41 mm	Metric
-16	DAOF51305-1620	1-7/16"-12	1-5/8"-12	17.50	18.49	20.50	27.50	52.50	50 mm	Metric
-16	DAOF51305-1624	1-7/16"-12	1-7/8"-12	17.50	18.50	20.60	32.00	54.00	55 mm	Metric
-16	DAOF51305-1608IN	1-7/16"-12	3/4"-16	17.50	14.00	20.60	9.60	49.81	1-1/2"	Imperial
-16	DAOF51305-1610IN	1-7/16"-12	7/8"-14	17.50	16.00	20.60	12.29	51.80	1-1/2"	Imperial
-16	DAOF51305-1612IN	1-7/16"-12	1-1/16"-12	17.50	18.49	20.60	15.47	54.40	1-1/2"	Imperial
-16	DAOF51305-1616IN	1-7/16"-12	1-5/16"-12	17.50	18.49	20.60	20.60	50.30	1-1/2"	Imperial
-16	DAOF51305-1620IN	1-7/16"-12	1-5/8"-12	17.50	18.49	20.50	27.50	52.50	1-7/8"	Imperial
-16	DAOF51305-1624IN	1-7/16"-12	1-7/8"-12	17.50	18.50	20.60	32.00	54.00	2-1/8"	Imperial
-20	DAOF51305-2012	1-11/16"-12	1-1/16"-12	17.50	18.49	26.00	15.47	56.40	46 mm	Metric
-20	DAOF51305-2016	1-11/16"-12	1-5/16"-12	17.50	18.49	26.00	20.60	57.90	46 mm	Metric
-20	DAOF51305-2020	1-11/16"-12	1-5/8"-12	17.50	18.49	26.00	26.00	52.50	50 mm	Metric
-20	DAOF51305-2024	1-11/16"-12	1-7/8"-12	17.50	18.49	26.00	32.00	54.00	55 mm	Metric
-20	DAOF51305-2012IN	1-11/16"-12	1-1/16"-12	17.50	18.49	26.00	15.47	56.40	1-3/4"	Imperial
-20	DAOF51305-2016IN	1-11/16"-12	1-5/16"-12	17.50	18.49	26.00	20.60	57.90	1-3/4"	Imperial
-20	DAOF51305-2020IN	1-11/16"-12	1-5/8"-12	17.50	18.49	26.00	26.00	52.50	1-7/8"	Imperial
-20	DAOF51305-2024IN	1-11/16"-12	1-7/8"-12	17.50	18.49	26.00	32.00	54.00	2-1/8"	Imperial
-24	DAOF51305-2416	2"-12	1-5/16"-12	17.50	18.49	32.00	20.60	59.60	55 mm	Metric
-24	DAOF51305-2420	2"-12	1-5/8"-12	17.50	18.49	32.00	26.00	59.60	55 mm	Metric
-24	DAOF51305-2424	2"-12	1-7/8"-12	17.50	18.49	32.00	32.00	54.10	55 mm	Metric
-24	DAOF51305-2416IN	2"-12	1-5/16"-12	17.50	18.49	32.00	20.60	59.60	2-1/8"	Imperial
-24	DAOF51305-2420IN	2"-12	1-5/8"-12	17.50	18.49	32.00	26.00	59.60	2-1/8"	Imperial
-24	DAOF51305-2424IN	2"-12	1-7/8"-12	17.50	18.49	32.00	32.00	54.10	2-1/8"	Imperial
-32	DAOF51305-3232	2-1/2"-12	2-1/2"-12	22.25	18.50	45.00	40.00	58.90	70 mm	Metric
-32	DAOF51305-3232IN	2-1/2"-12	2-1/2"-12	22.25	18.50	45.00	40.00	58.90	2-3/4"	Imperial
