DAOF51241 Adaptor – DME&JDE Group

Technical Data of DAOF51241

* Filter the F1 Thread through selecting the -XX options

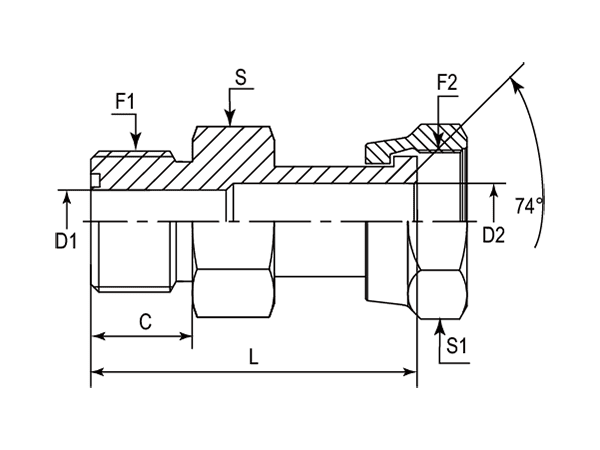

A drawing of DAOF51241 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C	D1	D2	L	S	S1	Hex
-	-	UNF	UNF	mm	mm	mm	mm	-	-	-
-01	DAOF51241-0404	9/16"-18	9/16"-18	9.80	4.19	4.19	35.00	17 mm	17 mm	Metric
-01	DAOF51241-0406	9/16"-18	11/16"-16	9.80	4.50	6.71	37.00	19 mm	22 mm	Metric
-01	DAOF51241-0410	9/16"-18	1"-14	9.80	4.37	11.51	44.50	27 mm	30 mm	Metric
-01	DAOF51241-0412	9/16"-18	1-3/16"-12	9.80	4.37	13.89	49.00	32 mm	36 mm	Metric
-01	DAOF51241-0416	9/16"-18	1-7/16"-12	9.80	4.37	19.89	51.50	36 mm	41 mm	Metric
-01	DAOF51241-0404IN	9/16"-18	9/16"-18	9.80	4.19	4.19	35.00	5/8"	11/16"	Imperial
-01	DAOF51241-0406IN	9/16"-18	11/16"-16	9.80	4.50	6.71	37.00	3/4"	7/8"	Imperial
-01	DAOF51241-0410IN	9/16"-18	1"-14	9.80	4.37	11.51	44.50	1-1/8"	1-1/8"	Imperial
-01	DAOF51241-0412IN	9/16"-18	1-3/16"-12	9.80	4.37	13.89	49.00	1-1/4"	1-3/8"	Imperial
-01	DAOF51241-0416IN	9/16"-18	1-7/16"-12	9.80	4.37	19.89	51.50	1-3/8"	1-5/8"	Imperial
-06	DAOF51241-0604	11/16"-16	9/16"-18	11.20	6.71	4.19	36.50	19 mm	17 mm	Metric
-06	DAOF51241-0606	11/16"-16	11/16"-16	11.20	6.71	6.71	38.50	19 mm	22 mm	Metric
-06	DAOF51241-0608	11/16"-16	13/16"-16	11.20	6.71	9.09	40.00	19 mm	24 mm	Metric
-06	DAOF51241-0610	11/16"-16	1"-14	11.20	6.71	11.51	46.00	27 mm	30 mm	Metric
-06	DAOF51241-0612	11/16"-16	1-3/16"-12	11.20	6.71	13.89	50.80	32 mm	36 mm	Metric
-06	DAOF51241-0604IN	11/16"-16	9/16"-18	11.20	6.71	4.19	36.50	3/4"	11/16"	Imperial
-06	DAOF51241-0606IN	11/16"-16	11/16"-16	11.20	6.71	6.71	38.50	3/4"	7/8"	Imperial
-06	DAOF51241-0608IN	11/16"-16	13/16"-16	11.20	6.71	9.09	40.00	3/4"	15/16"	Imperial
-06	DAOF51241-0610IN	11/16"-16	1"-14	11.20	6.71	11.51	46.00	1-1/8"	1-1/8"	Imperial
-06	DAOF51241-0612IN	11/16"-16	1-3/16"-12	11.20	6.71	13.89	50.80	1-1/4"	1-3/8"	Imperial
-08	DAOF51241-0806	13/16"-16	11/16"-16	12.80	9.60	6.71	40.50	22	22 mm	Metric
-08	DAOF51241-0808	13/16"-16	13/16"-16	12.80	9.09	9.09	43.50	22	24 mm	Metric
-08	DAOF51241-0810	13/16"-16	1"-14	12.80	9.60	11.51	48.00	27	30 mm	Metric
-08	DAOF51241-0812	13/16"-16	1-3/16"-12	12.80	9.60	13.89	52.00	32	36 mm	Metric
-08	DAOF51241-0816	13/16"-16	1-7/16"-12	12.80	9.60	19.89	54.00	36	41 mm	Metric
-08	DAOF51241-0806IN	13/16"-16	11/16"-16	12.80	9.60	6.71	40.50	7/8"	7/8"	Imperial
-08	DAOF51241-0808IN	13/16"-16	13/16"-16	12.80	9.09	9.09	43.50	7/8"	15/16"	Imperial
-08	DAOF51241-0810IN	13/16"-16	1"-14	12.80	9.60	11.51	48.00	1-1/8"	1-1/8"	Imperial
-08	DAOF51241-0812IN	13/16"-16	1-3/16"-12	12.80	9.60	13.89	52.00	1-1/4"	1-3/8"	Imperial
-08	DAOF51241-0816IN	13/16"-16	1-7/16"-12	12.80	9.60	19.89	54.00	1-3/8"	1-5/8"	Imperial
-10	DAOF51241-1008	1"-14	13/16"-16	15.49	12.50	9.09	48.50	27	24 mm	Metric
-10	DAOF51241-1010	1"-14	1"-14	15.49	11.51	11.51	52.00	27	30 mm	Metric
-10	DAOF51241-1012	1"-14	1-3/16"-12	15.49	12.29	13.89	56.50	32	36 mm	Metric
-10	DAOF51241-1008IN	1"-14	13/16"-16	15.49	12.50	9.09	48.50	1-1/8"	15/16"	Imperial
-10	DAOF51241-1010IN	1"-14	1"-14	15.49	11.51	11.51	52.00	1-1/8"	1-1/8"	Imperial
-10	DAOF51241-1012IN	1"-14	1-3/16"-12	15.49	12.29	13.89	56.50	1-1/4"	1-3/8"	Imperial
-12	DAOF51241-1208	1-3/16"-12	13/16"-16	17.02	15.47	9.09	51.00	32	24 mm	Metric
-12	DAOF51241-1210	1-3/16"-12	1"-14	17.02	15.47	11.51	55.00	32	30 mm	Metric
-12	DAOF51241-1212	1-3/16"-12	1-3/16"-12	17.02	13.89	13.89	58.00	32	36 mm	Metric
-12	DAOF51241-1216	1-3/16"-12	1-7/16"-12	17.02	15.47	19.89	60.50	36	41 mm	Metric
-12	DAOF51241-1208IN	1-3/16"-12	13/16"-16	17.02	15.47	9.09	51.00	1-1/4"	15/16"	Imperial
-12	DAOF51241-1210IN	1-3/16"-12	1"-14	17.02	15.47	11.51	55.00	1-1/4"	1-1/8"	Imperial
-12	DAOF51241-1212IN	1-3/16"-12	1-3/16"-12	17.02	13.89	13.89	58.00	1-1/4"	1-3/8"	Imperial
-12	DAOF51241-1216IN	1-3/16"-12	1-7/16"-12	17.02	15.47	19.89	60.50	1-3/8"	1-5/8"	Imperial
-16	DAOF51241-1608	1-7/16"-12	13/16"-16	17.50	20.60	9.09	53.00	38	24 mm	Metric
-16	DAOF51241-1612	1-7/16"-12	1-3/16"-12	17.50	20.60	13.89	60.00	38	36 mm	Metric
-16	DAOF51241-1616	1-7/16"-12	1-7/16"-12	17.50	19.89	19.89	62.00	38	41 mm	Metric
-16	DAOF51241-1620	1-7/16"-12	1-11/16"-12	17.50	20.60	26.01	60.00	41	50 mm	Metric
-16	DAOF51241-1608IN	1-7/16"-12	13/16"-16	17.50	20.60	9.09	53.00	1-1/2"	15/16"	Imperial
-16	DAOF51241-1612IN	1-7/16"-12	1-3/16"-12	17.50	20.60	13.89	60.00	1-1/2"	1-3/8"	Imperial
-16	DAOF51241-1616IN	1-7/16"-12	1-7/16"-12	17.50	19.89	19.89	62.00	1-1/2"	1-5/8"	Imperial
-16	DAOF51241-1620IN	1-7/16"-12	1-11/16"-12	17.50	20.60	26.01	60.00	1-1/2"	1-7/8"	Imperial
-20	DAOF51241-2016	1-11/16"-12	1-7/16"-12	17.50	26.00	19.89	61.50	46	41 mm	Metric
-20	DAOF51241-2020	1-11/16"-12	1-11/16"-12	17.50	26.00	26.00	66.50	48	50 mm	Metric
-20	DAOF51241-2024	1-11/16"-12	2"-12	17.50	26.00	32.00	66.00	50	60 mm	Metric
-20	DAOF51241-2016IN	1-11/16"-12	1-7/16"-12	17.50	26.00	19.89	61.50	1-3/4"	1-5/8"	Imperial
-20	DAOF51241-2020IN	1-11/16"-12	1-11/16"-12	17.50	26.00	26.00	66.50	1-7/8"	1-7/8"	Imperial
-20	DAOF51241-2024IN	1-11/16"-12	2"-12	17.50	26.00	32.00	66.00	2"	2-1/4"	Imperial
-24	DAOF51241-2424	2"-12	2"-12	17.50	32.00	32.00	66.00	55	60 mm	Metric
-24	DAOF51241-2424IN	2"-12	2"-12	17.50	32.00	32.00	66.00	2-1/8"	2-1/4"	Imperial

DAOF51241 Straight Connector ORFS Male - ORFS Swivel Female
