* Filter the F1 Thread through selecting the -XX options

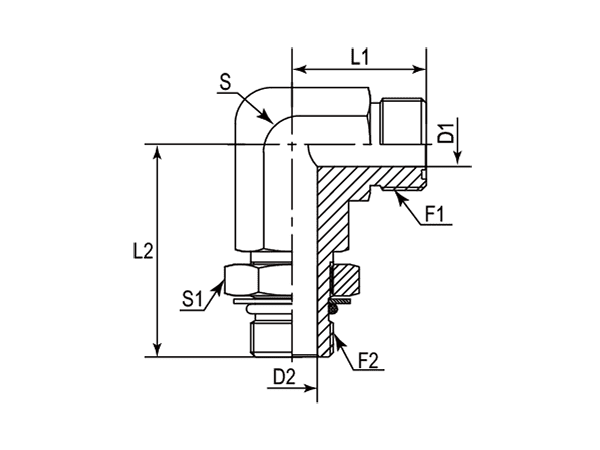

| - | Part Number | F1 (Thread) | F2 (Thread) | D1 | D2 | L1 | L2 | S | S1 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | UNF | mm | mm | mm | mm | - | - | - |
| -01 | DAOF59305-LL-0404 | 9/16"-18 | 7/16"-20 | 4.37 | 4.37 | 21.59 | 71.00 | 14 mm | 17 mm | Metric |
| -01 | DAOF59305-LL-0404IN | 9/16"-18 | 7/16"-20 | 4.37 | 4.37 | 21.59 | 71.00 | 9/16" | 5/8" | Imperial |
| -08 | DAOF59305-LL-0808 | 13/16"-16 | 3/4"-16 | 9.60 | 9.60 | 27.90 | 88.90 | 19 mm | 24 mm | Metric |
| -08 | DAOF59305-LL-0808IN | 13/16"-16 | 3/4"-16 | 9.60 | 9.60 | 27.90 | 88.90 | 3/4" | 15/16" | Imperial |
| -12 | DAOF59305-LL-1212 | 1-3/16"-12 | 1-1/16"-12 | 15.50 | 15.50 | 37.50 | 114.30 | 32 mm | 36 mm | Metric |
| -12 | DAOF59305-LL-1212IN | 1-3/16"-12 | 1-1/16"-12 | 15.50 | 15.50 | 37.50 | 114.30 | 1-1/4" | 1-3/8" | Imperial |
| -16 | DAOF59305-LL-1616 | 1-7/16"-12 | 1-5/16"-12 | 20.60 | 20.60 | 41.66 | 127.00 | 36 mm | 36 mm | Metric |
| -16 | DAOF59305-LL-1616IN | 1-7/16"-12 | 1-5/16"-12 | 20.60 | 20.60 | 41.66 | 127.00 | 1-3/8" | 1-3/8" | Imperial |
| -20 | DAOF59305-LL-2020 | 1-11/16"-12 | 1-5/8"-12 | 26.00 | 27.50 | 44.50 | 140.00 | 41 mm | 41 mm | Metric |
| -20 | DAOF59305-LL-2020IN | 1-11/16"-12 | 1-5/8"-12 | 26.00 | 27.50 | 44.50 | 140.00 | 1-5/8" | 1-5/8" | Imperial |
| -24 | DAOF59305-LL-2424 | 2"-11 | 1-7/8"-12 | 32.00 | 33.50 | 49.00 | 156.00 | 50 mm | 55 mm | Metric |
| -24 | DAOF59305-LL-2424IN | 2"-11 | 1-7/8"-12 | 32.00 | 33.50 | 49.00 | 156.00 | 1-7/8" | 2-1/8" | Imperial |
