DAOF5952Y 90° Adjustable Long Elbow ORFS Male - Metric Male + O Ring + Retaining Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS UNF
  • 5Connection TypeMale
  • 9Adaptor Structure90° Elbow
  • 52Thread TypesMetric
  • YConnection TypeMale + Long O Ring + Retaining Ring
  • DME&JDE Code: DAOF5952Y
  • Product Type: hydraulic adaptor
  • Standard: ORFS
  • Structure: 90° Elbow
  • Connection Type: Adjustable Male × Male
  • Thread Types: UNF × Metric
  • Sealing Method: Long O Ring + Retaining Ring
Technical Data of DAOF5952Y
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

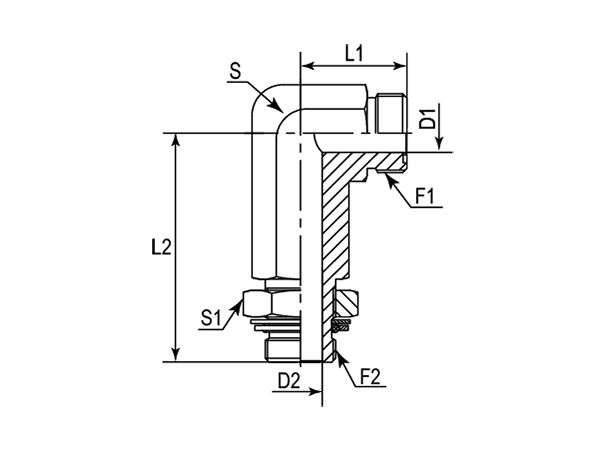

A drawing of DAOF5952Y hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1
- - UNF Metric mm mm mm mm mm mm
-01 DAOF5952Y-0412 9/16"-18 M12X1.5 21.50 56.50 4.37 4.37 14.00 17.00
-06 DAOF5952Y-0616 11/16"-16 M16X1.5 25.00 67.00 6.71 7.00 19.00 22.00
-08 DAOF5952Y-0818 13/16"-16 M18X1.5 28.00 75.00 9.60 9.00 19.00 24.00
-10 DAOF5952Y-1022 1"-14 M22X1.5 33.50 89.00 12.29 12.00 27.00 27.00
-12 DAOF5952Y-1227 1-3/16"-12 M27X2 37.50 100.00 15.47 15.00 30.00 32.00
-16 DAOF5952Y-1633 1-7/16"-12 M33X2 42.00 113.00 20.60 20.00 36.00 41.00
-20 DAOF5952Y-2042 1-11/16"-12 M42X2 45.00 125.00 26.00 26.00 41.00 50.00
-24 DAOF5952Y-2448 2"-12 M48X2 49.00 139.00 32.00 32.00 48.00 55.00
