DAOF5X245 Adaptor – DME&JDE Group

Technical Data of DAOF5X245

* Filter the F1 Thread through selecting the -XX options

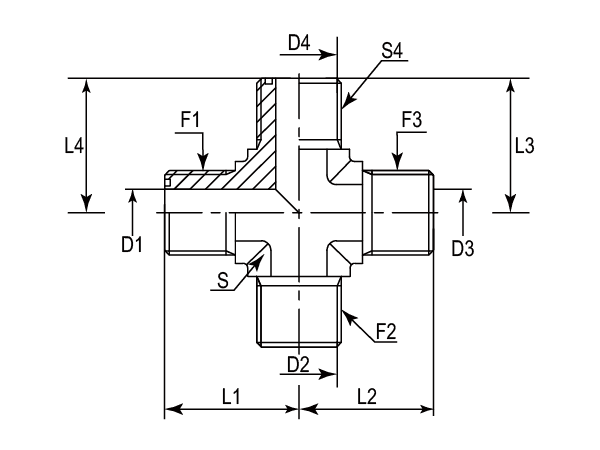

A drawing of DAOF5X245 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	F4 (Thread)	L1	L2	L3	L4	D1	D2	D3	D4	S	Hex
-	-	UNF	UNF	UNF	UNF	mm	mm	mm	mm	mm	mm	mm	mm	-	-
-01	DAOF5X245-0404	9/16"-18	9/16"-18	9/16"-18	9/16"-18	21.60	21.60	21.60	21.60	4.50	4.50	4.50	4.50	14 mm	Metric
-01	DAOF5X245-0404IN	9/16"-18	9/16"-18	9/16"-18	9/16"-18	21.60	21.60	21.60	21.60	4.50	4.50	4.50	4.50	9/16"	Imperial
-06	DAOF5X245-0606	11/16"-16	11/16"-16	11/16"-16	11/16"-16	24.90	24.90	24.90	24.90	6.50	6.50	6.50	6.50	19 mm	Metric
-06	DAOF5X245-0606IN	11/16"-16	11/16"-16	11/16"-16	11/16"-16	24.90	24.90	24.90	24.90	6.50	6.50	6.50	6.50	3/4"	Imperial
-08	DAOF5X245-0808	13/16"-16	13/16"-16	13/16"-16	13/16"-16	28.00	28.00	28.00	28.00	9.60	9.60	9.60	9.60	19 mm	Metric
-08	DAOF5X245-0808IN	13/16"-16	13/16"-16	13/16"-16	13/16"-16	28.00	28.00	28.00	28.00	9.60	9.60	9.60	9.60	3/4"	Imperial
-10	DAOF5X245-1010	1"-14	1"-14	1"-14	1"-14	33.30	33.30	33.30	33.30	12.29	12.29	12.29	12.29	27 mm	Metric
-10	DAOF5X245-1010IN	1"-14	1"-14	1"-14	1"-14	33.30	33.30	33.30	33.30	12.29	12.29	12.29	12.29	1-1/8"	Imperial
-12	DAOF5X245-1212	1-3/16"-12	1-3/16"-12	1-3/16"-12	1-3/16"-12	37.50	37.50	37.50	37.50	15.50	15.50	15.50	15.50	30 mm	Metric
-12	DAOF5X245-1212IN	1-3/16"-12	1-3/16"-12	1-3/16"-12	1-3/16"-12	37.50	37.50	37.50	37.50	15.50	15.50	15.50	15.50	1-3/16"	Imperial
-16	DAOF5X245-1616	1-7/16"-12	1-7/16"-12	1-7/16"-12	1-7/16"-12	41.50	41.50	41.50	41.50	20.50	20.50	20.50	20.50	36 mm	Metric
-16	DAOF5X245-1616IN	1-7/16"-12	1-7/16"-12	1-7/16"-12	1-7/16"-12	41.50	41.50	41.50	41.50	20.50	20.50	20.50	20.50	1-3/8"	Imperial
-20	DAOF5X245-2020	1-11/16"-12	1-11/16"-12	1-11/16"-12	1-11/16"-12	44.70	44.70	44.70	44.70	26.00	26.00	26.00	26.00	41 mm	Metric
-20	DAOF5X245-2020IN	1-11/16"-12	1-11/16"-12	1-11/16"-12	1-11/16"-12	44.70	44.70	44.70	44.70	26.00	26.00	26.00	26.00	1-5/8"	Imperial
-24	DAOF5X245-2424	2"-12	2"-12	2"-12	2"-12	48.80	48.80	48.80	48.80	32.00	32.00	32.00	32.00	48 mm	Metric
-24	DAOF5X245-2424IN	2"-12	2"-12	2"-12	2"-12	48.80	48.80	48.80	48.80	32.00	32.00	32.00	32.00	1-7/8"	Imperial
