DAOF31245 Adaptor – DME&JDE Group

Technical Data of DAOF31245

* Filter the F1 Thread through selecting the -XX options

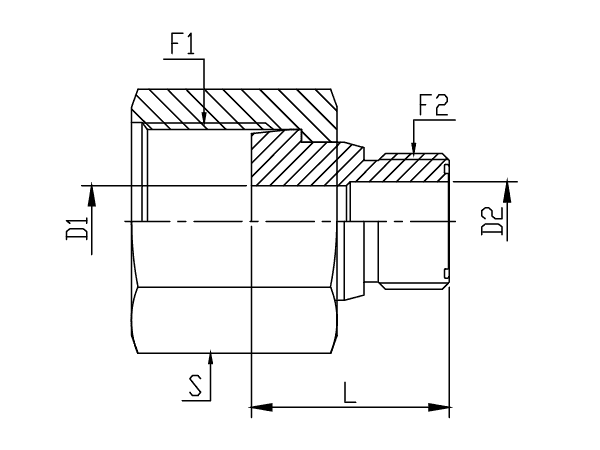

A drawing of DAOF31245 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L	S	Hex
-	-	UNF	UNF	mm	mm	mm	-	-
-01	DAOF31245-0404	9/16"-18	9/16"-18	4.19	4.19	18.60	17 mm	Metric
-01	DAOF31245-0406	9/16"-18	11/16"-16	4.20	4.20	17.80	17 mm	Metric
-01	DAOF31245-0408	9/16"-18	13/16"-16	4.19	4.19	19.40	17 mm	Metric
-01	DAOF31245-0404IN	9/16"-18	9/16"-18	4.19	4.19	18.60	11/16"	Imperial
-01	DAOF31245-0406IN	9/16"-18	11/16"-16	4.20	4.20	17.80	11/16"	Imperial
-01	DAOF31245-0408IN	9/16"-18	13/16"-16	4.19	4.19	19.40	11/16"	Imperial
-06	DAOF31245-0604	11/16"-16	9/16"-18	4.37	4.37	19.56	22 mm	Metric
-06	DAOF31245-0606	11/16"-16	11/16"-16	6.71	6.71	20.50	22 mm	Metric
-06	DAOF31245-0608	11/16"-16	13/16"-16	6.71	9.60	23.30	22 mm	Metric
-06	DAOF31245-0612	11/16"-16	1-3/16"-12	6.71	15.47	27.00	22 mm	Metric
-06	DAOF31245-0604IN	11/16"-16	9/16"-18	4.37	4.37	19.56	13/16"	Imperial
-06	DAOF31245-0606IN	11/16"-16	11/16"-16	6.71	6.71	20.50	13/16"	Imperial
-06	DAOF31245-0608IN	11/16"-16	13/16"-16	6.71	9.60	23.30	13/16"	Imperial
-06	DAOF31245-0612IN	11/16"-16	1-3/16"-12	6.71	15.47	27.00	13/16"	Imperial
-08	DAOF31245-0804	13/16"-16	9/16"-18	4.37	4.37	21.84	24 mm	Metric
-08	DAOF31245-0806	13/16"-16	11/16"-16	6.71	6.71	22.35	24 mm	Metric
-08	DAOF31245-0808	13/16"-16	13/16"-16	9.60	9.60	24.00	24 mm	Metric
-08	DAOF31245-0810	13/16"-16	1"-14	9.09	12.29	26.40	24 mm	Metric
-08	DAOF31245-0812	13/16"-16	1-3/16"-12	9.09	15.47	27.50	24 mm	Metric
-08	DAOF31245-0804IN	13/16"-16	9/16"-18	4.37	4.37	21.84	15/16"	Imperial
-08	DAOF31245-0806IN	13/16"-16	11/16"-16	6.71	6.71	22.35	15/16"	Imperial
-08	DAOF31245-0808IN	13/16"-16	13/16"-16	9.60	9.60	24.00	15/16"	Imperial
-08	DAOF31245-0810IN	13/16"-16	1"-14	9.09	12.29	26.40	15/16"	Imperial
-08	DAOF31245-0812IN	13/16"-16	1-3/16"-12	9.09	15.47	27.50	15/16"	Imperial
-10	DAOF31245-1004	1"-14	9/16"-18	4.37	4.37	22.86	30 mm	Metric
-10	DAOF31245-1006	1"-14	11/16"-16	6.71	6.71	24.20	30 mm	Metric
-10	DAOF31245-1008	1"-14	13/16"-16	9.60	9.60	25.65	30 mm	Metric
-10	DAOF31245-1010	1"-14	1"-14	11.51	11.51	28.50	30 mm	Metric
-10	DAOF31245-1012	1"-14	1-3/16"-12	15.47	15.47	27.00	30 mm	Metric
-10	DAOF31245-1004IN	1"-14	9/16"-18	4.37	4.37	22.86	1-1/8"	Imperial
-10	DAOF31245-1006IN	1"-14	11/16"-16	6.71	6.71	24.20	1-1/8"	Imperial
-10	DAOF31245-1008IN	1"-14	13/16"-16	9.60	9.60	25.65	1-1/8"	Imperial
-10	DAOF31245-1010IN	1"-14	1"-14	11.51	11.51	28.50	1-1/8"	Imperial
-10	DAOF31245-1012IN	1"-14	1-3/16"-12	15.47	15.47	27.00	1-1/8"	Imperial
-12	DAOF31245-1204	1-3/16"-12	9/16"-18	4.37	4.37	24.90	36 mm	Metric
-12	DAOF31245-1206	1-3/16"-12	11/16"-16	6.71	6.71	26.16	36 mm	Metric
-12	DAOF31245-1208	1-3/16"-12	13/16"-16	9.60	9.60	27.69	36 mm	Metric
-12	DAOF31245-1210	1-3/16"-12	1"-14	12.29	12.29	30.40	36 mm	Metric
-12	DAOF31245-1216	1-3/16"-12	1-7/16"-12	15.47	15.47	31.50	36 mm	Metric
-12	DAOF31245-1204IN	1-3/16"-12	9/16"-18	4.37	4.37	24.90	1-3/8"	Imperial
-12	DAOF31245-1206IN	1-3/16"-12	11/16"-16	6.71	6.71	26.16	1-3/8"	Imperial
-12	DAOF31245-1208IN	1-3/16"-12	13/16"-16	9.60	9.60	27.69	1-3/8"	Imperial
-12	DAOF31245-1210IN	1-3/16"-12	1"-14	12.29	12.29	30.40	1-3/8"	Imperial
-12	DAOF31245-1216IN	1-3/16"-12	1-7/16"-12	15.47	15.47	31.50	1-3/8"	Imperial
-16	DAOF31245-1604	1-7/16"-12	9/16"-18	4.37	4.37	26.21	41 mm	Metric
-16	DAOF31245-1606	1-7/16"-12	11/16"-16	6.71	6.71	27.61	41 mm	Metric
-16	DAOF31245-1608	1-7/16"-12	13/16"-16	9.60	9.60	29.21	41 mm	Metric
-16	DAOF31245-1610	1-7/16"-12	1"-14	12.29	12.29	31.90	41 mm	Metric
-16	DAOF31245-1612	1-7/16"-12	1-3/16"-12	15.47	15.47	33.00	41 mm	Metric
-16	DAOF31245-1616	1-7/16"-12	1-7/16"-12	19.89	19.89	33.50	41 mm	Metric
-16	DAOF31245-1604IN	1-7/16"-12	9/16"-18	4.37	4.37	26.21	1-5/8"	Imperial
-16	DAOF31245-1606IN	1-7/16"-12	11/16"-16	6.71	6.71	27.61	1-5/8"	Imperial
-16	DAOF31245-1608IN	1-7/16"-12	13/16"-16	9.60	9.60	29.21	1-5/8"	Imperial
-16	DAOF31245-1610IN	1-7/16"-12	1"-14	12.29	12.29	31.90	1-5/8"	Imperial
-16	DAOF31245-1612IN	1-7/16"-12	1-3/16"-12	15.47	15.47	33.00	1-5/8"	Imperial
-16	DAOF31245-1616IN	1-7/16"-12	1-7/16"-12	19.89	19.89	33.50	1-5/8"	Imperial
-20	DAOF31245-2012	1-11/16"-12	1-3/16"-12	15.47	15.47	33.53	50 mm	Metric
-20	DAOF31245-2016	1-11/16"-12	1-7/16"-12	20.60	20.60	38.46	50 mm	Metric
-20	DAOF31245-2012IN	1-11/16"-12	1-3/16"-12	15.47	15.47	33.53	1-7/8"	Imperial
-20	DAOF31245-2016IN	1-11/16"-12	1-7/16"-12	20.60	20.60	38.46	1-7/8"	Imperial
-24	DAOF31245-2412	2"-12	1-3/16"-12	15.50	15.50	33.53	60 mm	Metric
-24	DAOF31245-2416	2"-12	1-7/16"-12	20.60	20.60	34.04	60 mm	Metric
-24	DAOF31245-2420	2"-12	1-11/16"-12	26.00	26.00	34.04	60 mm	Metric
-24	DAOF31245-2412IN	2"-12	1-3/16"-12	15.50	15.50	33.53	2-1/4"	Imperial
-24	DAOF31245-2416IN	2"-12	1-7/16"-12	20.60	20.60	34.04	2-1/4"	Imperial
-24	DAOF31245-2420IN	2"-12	1-11/16"-12	26.00	26.00	34.04	2-1/4"	Imperial
-32	DAOF31245-3224	2-1/2"-12	2"-12	32.00	32.00	40.50	73 mm	Metric
-32	DAOF31245-3224IN	2-1/2"-12	2"-12	32.00	32.00	40.50	2-7/8"	Imperial

DAOF31245 Straight Connector ORFS Swivel Female - ORFS Male
