DAOF5952Q 90° Adjustable Elbow ORFS Male - Metric Male + O Ring + Retaining Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS UNF
  • 5Connection TypeMale
  • 9Adaptor Structure90° Elbow
  • 52Thread TypesMetric
  • QConnection TypeMale + O Ring + Retaining Ring
  • DME&JDE Code: DAOF5952Q
  • Product Type: hydraulic adaptor
  • Standard: ORFS
  • Structure: 90° Elbow
  • Connection Type: Adjustable Male × Male
  • Thread Types: UNF × Metric
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DAOF5952Q
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

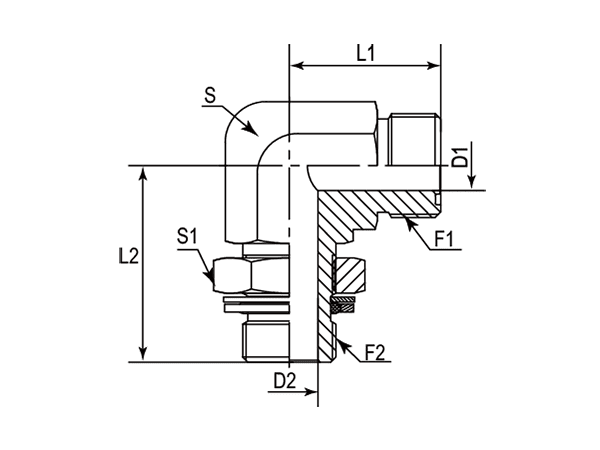

A drawing of DAOF5952Q hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1
- - UNF Metric mm mm mm mm mm mm
-01 DAOF5952Q-0410 9/16"-18 M10X1 21.50 32.50 4.37 3.00 14.00 14.00
-01 DAOF5952Q-0412 9/16"-18 M12X1.5 21.50 32.50 4.37 4.00 14.00 17.00
-06 DAOF5952Q-0614 11/16"-16 M14X1.5 25.00 36.00 6.71 6.00 19.00 19.00
-06 DAOF5952Q-0616 11/16"-16 M16X1.5 25.00 37.00 6.71 7.00 19.00 22.00
-06 DAOF5952Q-0618 11/16"-16 M18X1.5 25.00 40.00 6.71 9.00 19.00 24.00
-06 DAOF5952Q-0622 11/16"-16 M22X1.5 29.90 49.00 6.71 12.00 27.00 27.00
-08 DAOF5952Q-0816 13/16"-16 M16X1.5 28.00 37.00 9.60 7.00 19.00 22.00
-08 DAOF5952Q-0818 13/16"-16 M18X1.5 28.00 41.00 9.60 9.00 19.00 24.00
-08 DAOF5952Q-0822 13/16"-16 M22X1.5 31.50 49.00 9.60 12.00 27.00 27.00
-10 DAOF5952Q-1018 1"-14 M18X1.5 33.50 48.00 12.29 9.00 27.00 24.00
-10 DAOF5952Q-1022 1"-14 M22X1.5 33.50 49.00 12.29 12.00 27.00 27.00
-12 DAOF5952Q-1227 1-3/16"-12 M27X2 37.50 55.50 15.47 15.00 30.00 32.00
-12 DAOF5952Q-1233 1-3/16"-12 M33X2 41.50 60.00 15.50 20.00 36.00 41.00
-16 DAOF5952Q-1627 1-7/16"-12 M27X2 41.50 59.50 20.50 15.00 36.00 32.00
-16 DAOF5952Q-1633 1-7/16"-12 M33X2 42.00 60.00 20.60 20.00 36.00 41.00
-20 DAOF5952Q-2033 1-11/16"-12 M33X2 44.70 62.50 26.00 20.00 41.00 41.00
-20 DAOF5952Q-2042 1-11/16"-12 M42X2 44.50 63.00 26.00 26.00 41.00 50.00
-24 DAOF5952Q-2448 2"-12 M48X2 47.90 66.00 32.00 32.00 48.00 55.00
