DAOF5T241 Branch Tee Connector ORFS Male - ORFS Swivel Female

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS UNF
  • 5Connection TypeMale
  • TAdaptor StructureBranch Tee
  • 241Connection TypeORFS Swivel Female
  • DME&JDE Code: DAOF5T241
  • Product Type: hydraulic adaptor
  • Standard: ORFS
  • Structure: Tee
  • Connection Type: Male × Male × Swivel Female
  • Thread Types: UNF × UNF × UNF
Technical Data of DAOF5T241
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

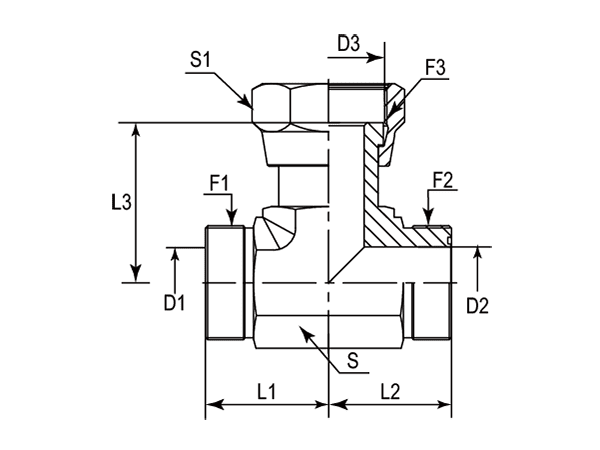

A drawing of DAOF5T241 hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) F3 (Thread) L1 L2 L3 D1 D2 D3 S S1 Hex
- - UNF UNF UNF mm mm mm mm mm mm - - -
-01 DAOF5T241-0404 9/16"-18 9/16"-18 9/16"-18 21.59 21.59 26.40 4.37 4.37 4.19 14 mm 17 mm Metric
-01 DAOF5T241-0404IN 9/16"-18 9/16"-18 9/16"-18 21.59 21.59 26.40 4.37 4.37 4.19 9/16" 11/16" Imperial
-06 DAOF5T241-0606 11/16"-16 11/16"-16 11/16"-16 24.89 24.89 29.21 6.71 6.71 6.71 19 mm 22 mm Metric
-06 DAOF5T241-0606IN 11/16"-16 11/16"-16 11/16"-16 24.89 24.89 29.21 6.71 6.71 6.71 3/4" 13/16" Imperial
-08 DAOF5T241-0808 13/16"-16 13/16"-16 13/16"-16 28.00 28.00 38.00 9.60 9.60 9.09 19 mm 24 mm Metric
-08 DAOF5T241-0808IN 13/16"-16 13/16"-16 13/16"-16 28.00 28.00 38.00 9.60 9.60 9.09 3/4" 15/16" Imperial
-10 DAOF5T241-1010 1"-14 1"-14 1"-14 33.27 33.27 41.20 12.29 12.29 11.51 27 mm 30 mm Metric
-10 DAOF5T241-1010IN 1"-14 1"-14 1"-14 33.27 33.27 41.20 12.29 12.29 11.51 1-1/16" 1-1/8" Imperial
-12 DAOF5T241-1212 1-3/16"-12 1-3/16"-12 1-3/16"-12 37.30 37.30 46.30 15.47 15.47 13.89 30 mm 36 mm Metric
-12 DAOF5T241-1212IN 1-3/16"-12 1-3/16"-12 1-3/16"-12 37.30 37.30 46.30 15.47 15.47 13.89 1-3/16" 1-3/8" Imperial
-16 DAOF5T241-1616 1-7/16"-12 1-7/16"-12 1-7/16"-12 41.50 41.50 53.50 20.50 20.50 20.00 36 mm 41 mm Metric
-16 DAOF5T241-1616IN 1-7/16"-12 1-7/16"-12 1-7/16"-12 41.50 41.50 53.50 20.50 20.50 20.00 1-7/16" 1-5/8" Imperial
-20 DAOF5T241-2020 1-11/16"-12 1-11/16"-12 1-11/16"-12 44.50 44.50 58.00 26.00 26.00 26.01 41 mm 50 mm Metric
-20 DAOF5T241-2020IN 1-11/16"-12 1-11/16"-12 1-11/16"-12 44.50 44.50 58.00 26.00 26.00 26.01 1-5/8" 1-7/8" Imperial
-24 DAOF5T241-2424 2"-12 2"-12 2"-12 48.80 48.80 61.21 32.00 32.00 32.00 50 mm 60 mm Metric
-24 DAOF5T241-2424IN 2"-12 2"-12 2"-12 48.80 48.80 61.21 32.00 32.00 32.00 1-7/8" 2-1/4" Imperial
