DAOF5T245 Adaptor – DME&JDE Group

Technical Data of DAOF5T245

* Filter the F1 Thread through selecting the -XX options

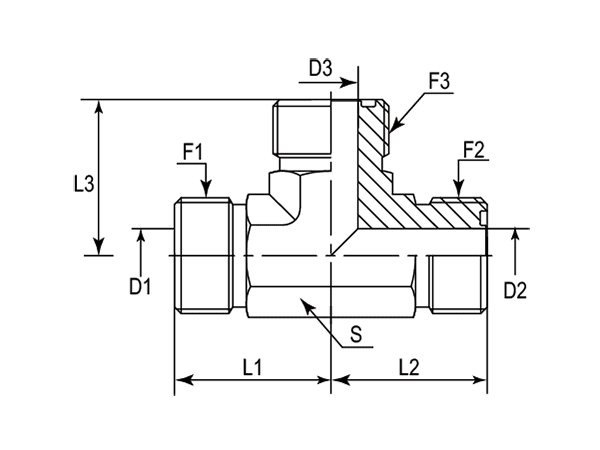

A drawing of DAOF5T245 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	Hex
-	-	UNF	UNF	UNF	mm	mm	mm	mm	mm	mm	-	-
-01	DAOF5T245-0404	9/16"-18	9/16"-18	9/16"-18	21.60	21.60	21.60	4.37	4.37	4.37	14 mm	Metric
-01	DAOF5T245-0404IN	9/16"-18	9/16"-18	9/16"-18	21.60	21.60	21.60	4.37	4.37	4.37	9/16"	Imperial
-06	DAOF5T245-0606	11/16"-16	11/16"-16	11/16"-16	25.00	25.00	25.00	6.71	6.71	6.71	19 mm	Metric
-06	DAOF5T245-060608	11/16"-16	11/16"-16	13/16"-16	26.50	26.50	28.00	6.50	6.50	9.60	19 mm	Metric
-06	DAOF5T245-060806	11/16"-16	13/16"-16	11/16"-16	24.89	27.90	24.89	6.50	9.50	6.50	19 mm	Metric
-06	DAOF5T245-060808	11/16"-16	13/16"-16	13/16"-16	26.30	27.90	27.90	6.71	9.60	9.60	19 mm	Metric
-06	DAOF5T245-0606IN	11/16"-16	11/16"-16	11/16"-16	25.00	25.00	25.00	6.71	6.71	6.71	3/4"	Imperial
-06	DAOF5T245-060608IN	11/16"-16	11/16"-16	13/16"-16	26.50	26.50	28.00	6.50	6.50	9.60	3/4"	Imperial
-06	DAOF5T245-060806IN	11/16"-16	13/16"-16	11/16"-16	24.89	27.90	24.89	6.50	9.50	6.50	3/4"	Imperial
-06	DAOF5T245-060808IN	11/16"-16	13/16"-16	13/16"-16	26.30	27.90	27.90	6.71	9.60	9.60	3/4"	Imperial
-08	DAOF5T245-0808	13/16"-16	13/16"-16	13/16"-16	28.00	28.00	28.00	9.60	9.60	9.60	19 mm	Metric
-08	DAOF5T245-080810	13/16"-16	13/16"-16	1"-14	30.73	30.73	33.30	9.60	9.60	12.29	27 mm	Metric
-08	DAOF5T245-0808IN	13/16"-16	13/16"-16	13/16"-16	28.00	28.00	28.00	9.60	9.60	9.60	3/4"	Imperial
-08	DAOF5T245-080810IN	13/16"-16	13/16"-16	1"-14	30.73	30.73	33.30	9.60	9.60	12.29	1-1/16"	Imperial
-10	DAOF5T245-1010	1"-14	1"-14	1"-14	33.50	33.50	33.50	12.50	12.50	12.50	27 mm	Metric
-10	DAOF5T245-101012	1"-14	1"-14	1-3/16"-12	35.81	35.81	37.34	12.50	12.50	15.50	30 mm	Metric
-10	DAOF5T245-1010IN	1"-14	1"-14	1"-14	33.50	33.50	33.50	12.50	12.50	12.50	1-1/16"	Imperial
-10	DAOF5T245-101012IN	1"-14	1"-14	1-3/16"-12	35.81	35.81	37.34	12.50	12.50	15.50	1-3/16"	Imperial
-12	DAOF5T245-121208	1-3/16"-12	1-3/16"-12	13/16"-16	37.30	37.30	34.30	15.47	15.47	9.60	30 mm	Metric
-12	DAOF5T245-1212	1-3/16"-12	1-3/16"-12	1-3/16"-12	37.50	37.50	37.50	15.50	15.50	15.50	30 mm	Metric
-12	DAOF5T245-121216	1-3/16"-12	1-3/16"-12	1-7/16"-12	41.10	41.10	41.60	15.47	15.47	20.60	36 mm	Metric
-12	DAOF5T245-121208IN	1-3/16"-12	1-3/16"-12	13/16"-16	37.30	37.30	34.30	15.47	15.47	9.60	1-3/16"	Imperial
-12	DAOF5T245-1212IN	1-3/16"-12	1-3/16"-12	1-3/16"-12	37.50	37.50	37.50	15.50	15.50	15.50	1-3/16"	Imperial
-12	DAOF5T245-121216IN	1-3/16"-12	1-3/16"-12	1-7/16"-12	41.10	41.10	41.60	15.47	15.47	20.60	1-7/16"	Imperial
-16	DAOF5T245-1616	1-7/16"-12	1-7/16"-12	1-7/16"-12	41.50	41.50	41.50	20.50	20.50	20.50	36 mm	Metric
-16	DAOF5T245-1616IN	1-7/16"-12	1-7/16"-12	1-7/16"-12	41.50	41.50	41.50	20.50	20.50	20.50	1-7/16"	Imperial
-20	DAOF5T245-202016	1-11/16"-12	1-11/16"-12	1-7/16"-12	44.70	44.70	44.70	26.00	26.00	20.50	41 mm	Metric
-20	DAOF5T245-2020	1-11/16"-12	1-11/16"-12	1-11/16"-12	44.70	44.70	44.70	26.00	26.00	26.00	41 mm	Metric
-20	DAOF5T245-202016IN	1-11/16"-12	1-11/16"-12	1-7/16"-12	44.70	44.70	44.70	26.00	26.00	20.50	1-5/8"	Imperial
-20	DAOF5T245-2020IN	1-11/16"-12	1-11/16"-12	1-11/16"-12	44.70	44.70	44.70	26.00	26.00	26.00	1-5/8"	Imperial
-24	DAOF5T245-2424	2"-12	2"-12	2"-12	48.80	48.80	48.80	32.00	32.00	32.00	48 mm	Metric
-24	DAOF5T245-2424IN	2"-12	2"-12	2"-12	48.80	48.80	48.80	32.00	32.00	32.00	1-7/8"	Imperial
-32	DAOF5T245-3232	2-1/2"-12	2-1/2"-12	2-1/2"-12	63.30	63.30	63.30	45.00	45.00	45.00	63 mm	Metric
-32	DAOF5T245-3232IN	2-1/2"-12	2-1/2"-12	2-1/2"-12	63.30	63.30	63.30	45.00	45.00	45.00	2-1/2"	Imperial
