* Filter the F1 Thread through selecting the -XX options

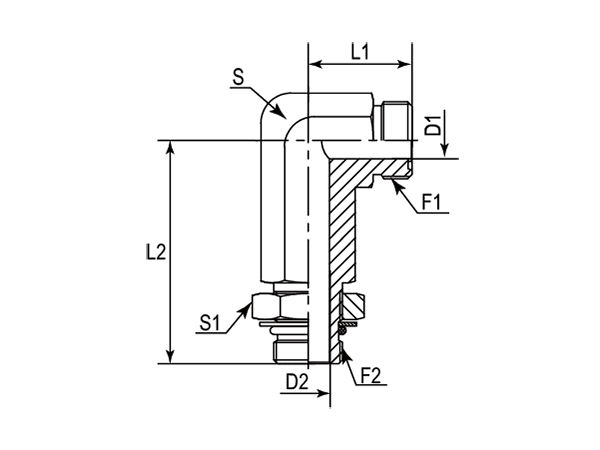

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S | S1 | Hex |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | UNF | UNF | mm | mm | mm | mm | - | - | - |
| -01 | DAOF5930J-0404 | 9/16"-18 | 7/16"-20 | 21.59 | 56.64 | 4.37 | 4.37 | 14 mm | 17 mm | Metric |
| -01 | DAOF5930J-0404IN | 9/16"-18 | 7/16"-20 | 21.59 | 56.64 | 4.37 | 4.37 | 9/16" | 5/8" | Imperial |
| -06 | DAOF5930J-0606 | 11/16"-16 | 9/16"-18 | 25.00 | 66.30 | 6.71 | 6.71 | 19 mm | 19 mm | Metric |
| -06 | DAOF5930J-0606IN | 11/16"-16 | 9/16"-18 | 25.00 | 66.30 | 6.71 | 6.71 | 3/4" | 3/4" | Imperial |
| -08 | DAOF5930J-0808 | 13/16"-16 | 3/4"-16 | 28.00 | 74.90 | 9.50 | 9.60 | 19 mm | 24 mm | Metric |
| -08 | DAOF5930J-0808IN | 13/16"-16 | 3/4"-16 | 28.00 | 74.90 | 9.50 | 9.60 | 3/4" | 15/16" | Imperial |
| -10 | DAOF5930J-1010 | 1"-14 | 7/8"-14 | 33.30 | 89.20 | 12.29 | 12.29 | 27 mm | 27 mm | Metric |
| -10 | DAOF5930J-1012 | 1"-14 | 1-1/16"-12 | 35.80 | 100.84 | 12.29 | 15.47 | 30 mm | 36 mm | Metric |
| -10 | DAOF5930J-1010IN | 1"-14 | 7/8"-14 | 33.30 | 89.20 | 12.29 | 12.29 | 1-1/16" | 1-1/16" | Imperial |
| -10 | DAOF5930J-1012IN | 1"-14 | 1-1/16"-12 | 35.80 | 100.84 | 12.29 | 15.47 | 1-3/16" | 1-3/8" | Imperial |
| -12 | DAOF5930J-1212 | 1-3/16"-12 | 1-1/16"-12 | 37.30 | 100.84 | 15.47 | 15.47 | 30 mm | 36 mm | Metric |
| -12 | DAOF5930J-1216 | 1-3/16"-12 | 1-5/16"-12 | 41.20 | 114.60 | 15.47 | 20.60 | 36 mm | 41 mm | Metric |
| -12 | DAOF5930J-1212IN | 1-3/16"-12 | 1-1/16"-12 | 37.30 | 100.84 | 15.47 | 15.47 | 1-3/16" | 1-3/8" | Imperial |
| -12 | DAOF5930J-1216IN | 1-3/16"-12 | 1-5/16"-12 | 41.20 | 114.60 | 15.47 | 20.60 | 1-7/16" | 1-5/8" | Imperial |
| -16 | DAOF5930J-1616 | 1-7/16"-12 | 1-5/16"-12 | 41.70 | 114.60 | 20.60 | 20.60 | 36 mm | 41 mm | Metric |
| -16 | DAOF5930J-1616IN | 1-7/16"-12 | 1-5/16"-12 | 41.70 | 114.60 | 20.60 | 20.60 | 1-7/16" | 1-5/8" | Imperial |
| -20 | DAOF5930J-2020 | 1-11/16"-12 | 1-5/8"-12 | 44.70 | 126.50 | 26.00 | 26.01 | 41 mm | 50 mm | Metric |
| -20 | DAOF5930J-2020IN | 1-11/16"-12 | 1-5/8"-12 | 44.70 | 126.50 | 26.00 | 26.01 | 1-5/8" | 1-7/8" | Imperial |
| -24 | DAOF5930J-2424 | 2"-12 | 1-7/8"-12 | 48.80 | 139.20 | 32.00 | 32.00 | 50 mm | 55 mm | Metric |
| -24 | DAOF5930J-2424IN | 2"-12 | 1-7/8"-12 | 48.80 | 139.20 | 32.00 | 32.00 | 1-7/8" | 2-1/8" | Imperial |
