* Filter the F1 Thread through selecting the -XX options

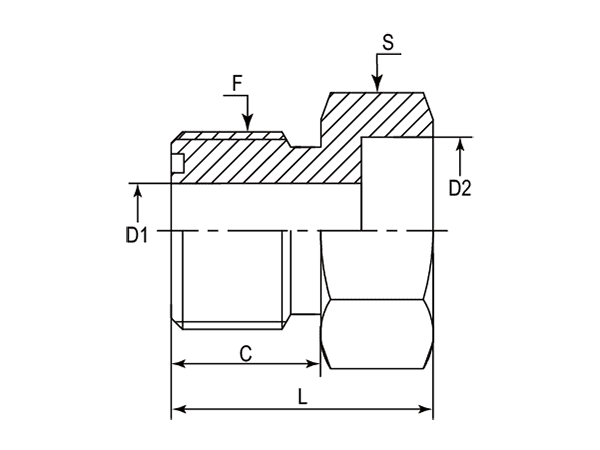

| - | Part Number | F (Thread) | C | D1 | D2 | L | S | Hex |
|---|---|---|---|---|---|---|---|---|
| - | - | UNF | mm | mm | mm | mm | - | - |
| -01 | DAOF5100B-0406 | 9/16"-18 | 9.80 | 4.37 | 6.50 | 21.84 | 17 mm | Metric |
| -01 | DAOF5100B-0410 | 9/16"-18 | 9.80 | 4.37 | 9.53 | 22.86 | 19 mm | Metric |
| -01 | DAOF5100B-0406IN | 9/16"-18 | 9.80 | 4.37 | 6.50 | 21.84 | 5/8" | Imperial |
| -01 | DAOF5100B-0410IN | 9/16"-18 | 9.80 | 4.37 | 9.53 | 22.86 | 3/4" | Imperial |
| -06 | DAOF5100B-0612 | 11/16"-16 | 11.20 | 6.71 | 12.85 | 22.86 | 22 mm | Metric |
| -06 | DAOF5100B-0612IN | 11/16"-16 | 11.20 | 6.71 | 12.85 | 22.86 | 7/8" | Imperial |
| -08 | DAOF5100B-0810 | 13/16"-16 | 12.80 | 7.54 | 9.68 | 24.64 | 22 mm | Metric |
| -08 | DAOF5100B-0816 | 13/16"-16 | 12.80 | 9.60 | 16.03 | 24.64 | 22 mm | Metric |
| -08 | DAOF5100B-0820 | 13/16"-16 | 12.80 | 9.60 | 19.23 | 28.60 | 27 mm | Metric |
| -08 | DAOF5100B-0810IN | 13/16"-16 | 12.80 | 7.54 | 9.68 | 24.64 | 7/8" | Imperial |
| -08 | DAOF5100B-0816IN | 13/16"-16 | 12.80 | 9.60 | 16.03 | 24.64 | 7/8" | Imperial |
| -08 | DAOF5100B-0820IN | 13/16"-16 | 12.80 | 9.60 | 19.23 | 28.60 | 1-1/16" | Imperial |
| -10 | DAOF5100B-1016 | 1"-14 | 15.49 | 12.29 | 16.03 | 27.18 | 27 mm | Metric |
| -10 | DAOF5100B-1020 | 1"-14 | 15.49 | 12.29 | 19.23 | 31.25 | 32 mm | Metric |
| -10 | DAOF5100B-1016IN | 1"-14 | 15.49 | 12.29 | 16.03 | 27.18 | 1-1/16" | Imperial |
| -10 | DAOF5100B-1020IN | 1"-14 | 15.49 | 12.29 | 19.23 | 31.25 | 1-1/4" | Imperial |
| -12 | DAOF5100B-1216 | 1-3/16"-12 | 17.02 | 12.29 | 16.03 | 30.00 | 32 mm | Metric |
| -12 | DAOF5100B-1220 | 1-3/16"-12 | 17.02 | 15.47 | 19.23 | 33.50 | 32 mm | Metric |
| -12 | DAOF5100B-1225 | 1-3/16"-12 | 17.02 | 15.47 | 25.58 | 35.05 | 41 mm | Metric |
| -12 | DAOF5100B-1216IN | 1-3/16"-12 | 17.02 | 12.29 | 16.03 | 30.00 | 1-1/4" | Imperial |
| -12 | DAOF5100B-1220IN | 1-3/16"-12 | 17.02 | 15.47 | 19.23 | 33.50 | 1-1/4" | Imperial |
| -12 | DAOF5100B-1225IN | 1-3/16"-12 | 17.02 | 15.47 | 25.58 | 35.05 | 1-1/2" | Imperial |
| -16 | DAOF5100B-1620 | 1-7/16"-12 | 17.50 | 15.47 | 19.23 | 37.10 | 41 mm | Metric |
| -16 | DAOF5100B-1625 | 1-7/16"-12 | 17.50 | 20.50 | 25.58 | 38.10 | 41 mm | Metric |
| -16 | DAOF5100B-1632 | 1-7/16"-12 | 17.50 | 20.60 | 31.95 | 38.60 | 46 mm | Metric |
| -16 | DAOF5100B-1620IN | 1-7/16"-12 | 17.50 | 15.47 | 19.23 | 37.10 | 1-1/2" | Imperial |
| -16 | DAOF5100B-1625IN | 1-7/16"-12 | 17.50 | 20.50 | 25.58 | 38.10 | 1-1/2" | Imperial |
| -16 | DAOF5100B-1632IN | 1-7/16"-12 | 17.50 | 20.60 | 31.95 | 38.60 | 1-3/4" | Imperial |
| -20 | DAOF5100B-2025 | 1-11/16"-12 | 17.50 | 20.60 | 25.58 | 38.61 | 46 mm | Metric |
| -20 | DAOF5100B-2032 | 1-11/16"-12 | 17.50 | 26.01 | 31.95 | 38.60 | 46 mm | Metric |
| -20 | DAOF5100B-2038 | 1-11/16"-12 | 17.50 | 26.01 | 38.30 | 38.60 | 55 mm | Metric |
| -20 | DAOF5100B-2025IN | 1-11/16"-12 | 17.50 | 20.60 | 25.58 | 38.61 | 1-3/4" | Imperial |
| -20 | DAOF5100B-2032IN | 1-11/16"-12 | 17.50 | 26.01 | 31.95 | 38.60 | 1-3/4" | Imperial |
| -20 | DAOF5100B-2038IN | 1-11/16"-12 | 17.50 | 26.01 | 38.30 | 38.60 | 2-1/8" | Imperial |
| -24 | DAOF5100B-2438 | 2"-12 | 17.50 | 32.00 | 38.30 | 38.60 | 55 mm | Metric |
| -24 | DAOF5100B-2438IN | 2"-12 | 17.50 | 32.00 | 38.30 | 38.60 | 2-1/8" | Imperial |
