DAOF51061 Straight Connector ORFS Male - BSPP Male with ED Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • OFThread TypesORFS UNF
  • 5Sealing TypeMale+O Ring
  • 1Adaptor StructureStraight
  • 061Connection TypeBSPP Male with ED Ring
  • DME&JDE Code: DAOF51061
  • Product Type: hydraulic adaptor
  • Standard: ORFS
  • Structure: Straight
  • Connection Type: Male × Male
  • Thread Types: UNF × BSPP with ED Ring
  • Sealing Method: ED Rings
Technical Data of DAOF51061
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

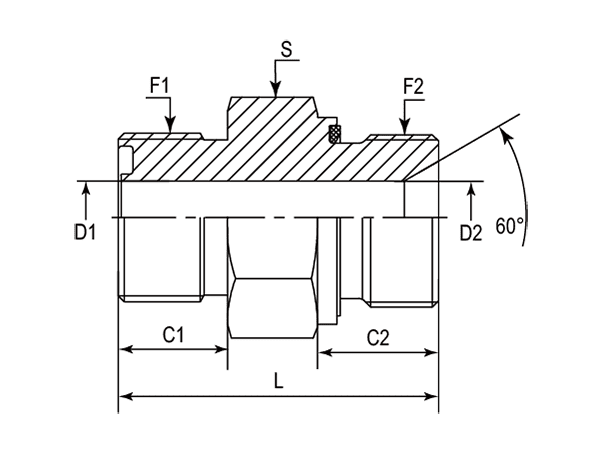

A drawing of DAOF51061 hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S
- - UNF BSPP mm mm mm mm mm mm
-01 DAOF51061-0402 9/16"-18 1/8"-28 9.80 8.00 4.37 4.37 26.00 17.00
-01 DAOF51061-0404 9/16"-18 1/4"-19 9.80 12.00 4.37 7.00 31.00 19.00
-01 DAOF51061-0406 9/16"-18 3/8"-19 9.80 12.00 4.37 9.00 31.80 22.00
-01 DAOF51061-0408 9/16"-18 1/2"-14 9.80 14.00 4.37 10.00 38.00 27.00
-06 DAOF51061-0602 11/16"-16 1/8"-28 11.20 8.00 6.71 4.37 28.00 19.00
-06 DAOF51061-0604 11/16"-16 1/4"-19 11.20 12.00 6.71 6.71 32.50 19.00
-06 DAOF51061-0606 11/16"-16 3/8"-19 11.20 12.00 6.71 9.90 33.50 22.00
-06 DAOF51061-0608 11/16"-16 1/2"-14 11.20 14.00 6.71 12.30 38.50 27.00
-08 DAOF51061-0804 13/16"-16 1/4"-19 12.80 12.00 9.60 5.00 34.50 22.00
-08 DAOF51061-0806 13/16"-16 3/8"-19 12.80 12.00 9.60 9.60 35.30 22.00
-08 DAOF51061-0808 13/16"-16 1/2"-14 12.80 14.00 9.60 9.60 39.00 27.00
-08 DAOF51061-0810 13/16"-16 5/8"-14 12.80 14.00 9.60 9.60 38.80 30.00
-08 DAOF51061-0812 13/16"-16 3/4"-14 12.80 16.00 9.60 15.50 41.80 32.00
-10 DAOF51061-1006 1"-14 3/8"-19 15.49 12.00 12.29 9.90 38.50 27.00
-10 DAOF51061-1008 1"-14 1/2"-14 15.49 14.00 12.29 12.29 41.00 27.00
-10 DAOF51061-1010 1"-14 5/8"-14 15.49 14.00 12.29 12.29 41.50 30.00
-10 DAOF51061-1012 1"-14 3/4"-14 15.49 16.00 12.29 12.29 45.00 32.00
-12 DAOF51061-1208 1-3/16"-12 1/2"-14 17.02 14.00 15.47 12.30 44.50 32.00
-12 DAOF51061-1212 1-3/16"-12 3/4"-14 17.02 16.00 15.47 15.47 46.50 32.00
-12 DAOF51061-1216 1-3/16"-12 1"-11 17.02 18.00 15.47 21.50 49.00 41.00
-16 DAOF51061-1612 1-7/16"-12 3/4"-14 17.50 16.00 20.60 16.00 47.50 41.00
-16 DAOF51061-1616 1-7/16"-12 1"-11 17.50 18.00 20.60 20.60 50.00 41.00
-16 DAOF51061-1620 1-7/16"-12 1-1/4"-11 17.50 20.00 20.60 27.50 53.50 50.00
-20 DAOF51061-2016 1-11/16"-12 1"-11 17.50 18.00 26.00 20.00 52.00 46.00
-20 DAOF51061-2020 1-11/16"-12 1-1/4"-11 17.50 20.00 26.00 27.50 55.50 50.00
-24 DAOF51061-2424 2"-12 1-1/2"-11 17.50 22.00 32.00 32.00 57.60 55.00
