Location: Home Fluid Connector Hydraulic Adaptors MetricDAMM952M

DAMM952M 90° Elbow Metric Male 60° Cone - Metric Male 60° Cone

DCompanyDME
AProduct RangeAdaptor
MThread TypesMetric
MConnection TypeMale
9Adaptor Structure90° Elbow
52Thread TypesMetric
MConnection TypeMale

A drawing of DAMM952M hydraulic adaptor.

A 3D drawing of DAMM952M hydraulic adaptor.

A model drawing of DAMM952M hydraulic adaptor.

DME&JDE Code: DAMM952M
Product Type: hydraulic adaptor
Standard: Metric
Structure: 90° Elbow
Connection Type: Male × Male
Thread Types: Metric 60° Cone × Metric 60° Cone

Technical Data of DAMM952M

-12
-16
-18
-20
-22
-26
-30

* Filter the F1 Thread through selecting the -XX options

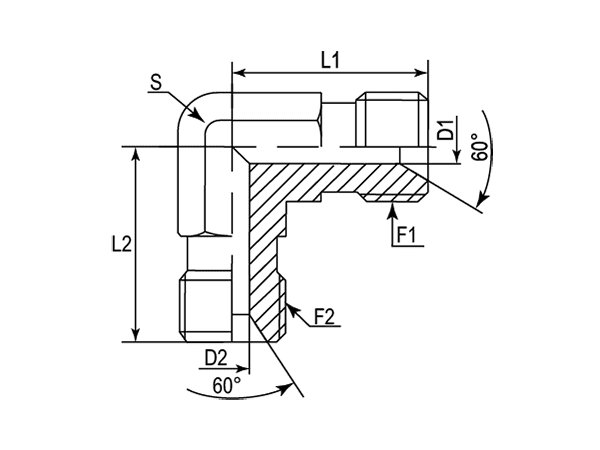

A drawing of DAMM952M hydraulic adaptor.

-	Part Number	F1/F2 (Thread)	D1/D2	L1/L2	S
-	-	Metric	mm	mm	mm
-01	DAMM952M-1212	M12X1.5	4.00	20.00	11.00
-16	DAMM952M-1616	M16X1.5	8.00	29.00	19.00
-18	DAMM952M-1818	M18X1.5	10.00	29.00	19.00
-20	DAMM952M-2020	M20X1.5	12.00	34.00	22.00
-22	DAMM952M-2222	M22X1.5	14.10	35.00	22.00
-26	DAMM952M-2626	M26X1.5	15.00	42.00	27.00
-30	DAMM952M-3030	M30X1.5	21.50	46.50	33.00
