DAJCMM128F Straight Connector Metric Male 74° Cone – NPTF Female

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCMThread TypesMetric 74°Cone
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 28Thread TypesNPTF
  • FConnection TypeFemale
  • DME&JDE Code: DAJCMM128F
  • Product Type: Hydraulic Adaptors
  • Standard: Metric
  • Structure: Straight
  • Connection Type: Male × Female
  • Thread Types: Metric 74° Cone × NPTF
Technical Data of DAJCMM128F
  • -12
  • -14
  • -16
  • -18
  • -22
  • -27
  • -36
  • -42

* Filter the F1 Thread through selecting the -XX options

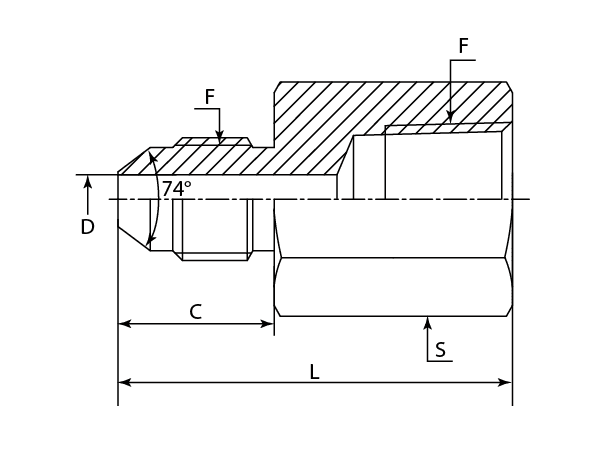

A drawing of DAJCMM128F hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) C D L S
- - METRIC NPTF mm mm mm mm
-01 DAJCMM128F-1202 M12X1.5 1/8"-27 15.70 5.00 31.90 14
-14 DAJCMM128F-1404 M14X1.5 1/4"-18 17.00 5.00 38.30 19
-16 DAJCMM128F-1606 M16X1.5 3/8"-18 18.00 7.00 41.00 22
-18 DAJCMM128F-1806 M18X1.5 3/8"-18 18.00 8.50 40.90 22
-22 DAJCMM128F-2208 M22X1.5 1/2"-14 19.50 12.00 48.40 30
-27 DAJCMM128F-2712 M27X1.5 3/4"-14 20.00 16.70 50.40 36
-36 DAJCMM128F-3616 M36X2 1"-11-1/2 25.00 26.00 61.60 41
-42 DAJCMM128F-4220 M42X2 1-1/4"-11-1/2 28.50 28.00 67.40 50
