DAJCMM106Q Straight Connector Metric Male 74° Cone – BSPP Male + O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCMThread TypesMetric 74°Cone
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 06Thread TypesBSPP
  • QConnection & Sealing MethodMale + Retaining Ring + O Ring
  • DME&JDE Code: DAJCMM106Q
  • Product Type: Hydraulic Adaptors
  • Standard: Metric
  • Structure: Straight
  • Connection Type: Male × Male
  • Thread Types: Metric 74° Cone × BSPP
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DAJCMM106Q
  • -14
  • -16
  • -18
  • -22
  • -27
  • -30
  • -39
  • -45

* Filter the F1 Thread through selecting the -XX options

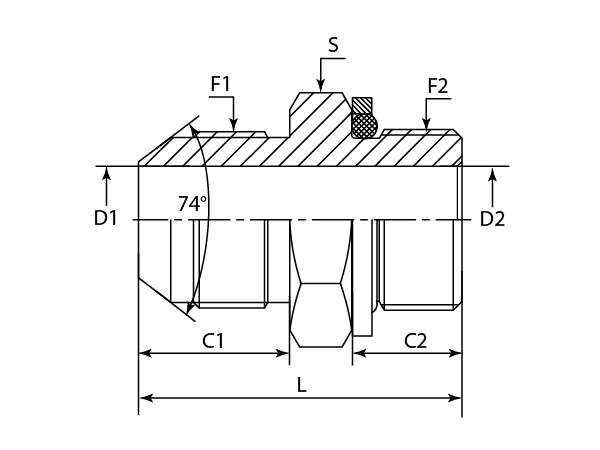

A drawing of DAJCMM106Q hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S
- - METRIC BSPP mm mm mm mm mm mm
-01 DAJCMM106Q-1404 M14X1.5 1/4"-19 17.00 11.00 5.00 7.50 36.00 19
-16 DAJCMM106Q-1606 M16X1.5 3/8"-19 18.00 11.50 7.00 9.90 40.00 22
-18 DAJCMM106Q-1806 M18X1.5 3/8"-19 18.00 11.50 8.50 9.90 40.00 22
-18 DAJCMM106Q-1808 M18X1.5 1/2"-14 18.00 14.00 8.50 12.30 43.00 27
-22 DAJCMM106Q-2208 M22X1.5 1/2"-14 19.50 14.00 12.00 12.30 44.50 27
-27 DAJCMM106Q-2712 M27X1.5 3/4"-14 20.00 15.50 16.70 15.50 49.50 32
-30 DAJCMM106Q-3012 M30X1.5 3/4"-14 23.00 15.50 18.50 15.50 52.50 32
-39 DAJCMM106Q-3916 M39X2 1"-11 26.00 18.00 27.00 21.50 60.00 41
-45 DAJCMM106Q-4520 M45X2 1-1/4"-11 28.50 20.00 33.00 27.50 66.50 50
