* Filter the F1 Thread through selecting the -XX options

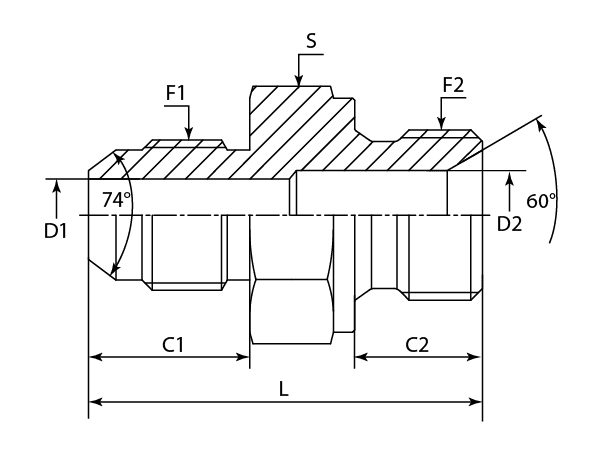

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | METRIC | mm | mm | mm | mm | mm | mm |
| -01 | DAJCMM152M-1210 | M12X1.5 | M10X1 | 15.70 | 8.00 | 5.00 | 4.00 | 34.50 | 17 |
| -01 | DAJCMM152M-1212 | M12X1.5 | M12X1.5 | 15.70 | 10.00 | 5.00 | 4.00 | 35.00 | 17 |
| -14 | DAJCMM152M-1412 | M14X1.5 | M12X1.5 | 17.00 | 10.00 | 5.00 | 4.00 | 37.00 | 22 |
| -14 | DAJCMM152M-1414 | M14X1.5 | M14X1.5 | 17.00 | 12.00 | 5.00 | 6.00 | 38.00 | 19 |
| -16 | DAJCMM152M-1612 | M16X1.5 | M12X1.5 | 18.00 | 10.00 | 7.00 | 4.00 | 38.00 | 22 |
| -16 | DAJCMM152M-1616 | M16X1.5 | M16X1.5 | 18.00 | 12.00 | 7.00 | 8.00 | 40.00 | 22 |
| -18 | DAJCMM152M-1816 | M18X1.5 | M16X1.5 | 18.00 | 12.00 | 8.50 | 8.00 | 40.00 | 22 |
| -18 | DAJCMM152M-1818 | M18X1.5 | M18X1.5 | 18.00 | 12.00 | 8.50 | 10.00 | 40.00 | 24 |
| -22 | DAJCMM152M-2216 | M22X1.5 | M16X1.5 | 19.50 | 12.00 | 12.00 | 8.00 | 41.50 | 22 |
| -22 | DAJCMM152M-2218 | M22X1.5 | M18X1.5 | 19.50 | 12.00 | 12.00 | 10.00 | 41.50 | 24 |
| -22 | DAJCMM152M-2222 | M22X1.5 | M22X1.5 | 19.50 | 14.00 | 12.00 | 14.10 | 43.00 | 27 |
| -24 | DAJCMM152M-2422 | M24X1.5 | M22X1.5 | 20.00 | 14.00 | 15.00 | 14.10 | 43.50 | 27 |
| -24 | DAJCMM152M-2424 | M24X1.5 | M24X1.5 | 20.00 | 14.00 | 15.00 | 15.50 | 45.00 | 30 |
| -27 | DAJCMM152M-2727 | M27X1.5 | M27X1.5 | 20.00 | 16.00 | 16.70 | 15.00 | 47.00 | 32 |
| -30 | DAJCMM152M-3030 | M30X1.5 | M30X1.5 | 23.00 | 18.00 | 18.50 | 21.50 | 53.00 | 36 |
| -33 | DAJCMM152M-3333 | M33X2 | M33X2 | 26.00 | 19.00 | 20.00 | 22.20 | 57.00 | 41 |
