* Filter the F1 Thread through selecting the -XX options

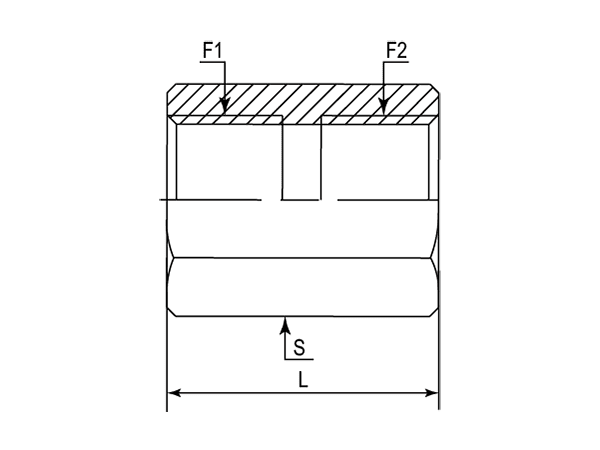

| - | Part Number | F1 (Thread) | F2 (Thread) | L | S |
|---|---|---|---|---|---|
| - | - | Metric | Metric | mm | mm |
| -01 | DAMF152F-0808 | M8X1 | M8X1 | 20.00 | 14.00 |
| -10 | DAMF152F-1010 | M10X1 | M10X1 | 20.00 | 17.00 |
| -12 | DAMF152F-1210 | M12X1.5 | M10X1 | 30.00 | 19.00 |
| -12 | DAMF152F-1212 | M12X1.5 | M12X1.5 | 30.00 | 19.00 |
| -14 | DAMF152F-1412 | M14X1.5 | M12X1.5 | 30.00 | 19.00 |
| -14 | DAMF152F-1414 | M14X1.5 | M14X1.5 | 30.00 | 19.00 |
| -16 | DAMF152F-1612 | M16X1.5 | M12X1.5 | 30.00 | 24.00 |
| -16 | DAMF152F-1614 | M16X1.5 | M14X1.5 | 31.00 | 24.00 |
| -16 | DAMF152F-1616 | M16X1.5 | M16X1.5 | 30.00 | 22.00 |
| -18 | DAMF152F-1816 | M18X1.5 | M16X1.5 | 33.00 | 24.00 |
| -18 | DAMF152F-1818 | M18X1.5 | M18X1.5 | 30.00 | 24.00 |
| -20 | DAMF152F-2018 | M20X1.5 | M18X1.5 | 36.00 | 27.00 |
| -20 | DAMF152F-2020 | M20X1.5 | M20X1.5 | 32.00 | 27.00 |
| -22 | DAMF152F-2216 | M22X1.5 | M16X1.5 | 35.00 | 27.00 |
| -22 | DAMF152F-2220 | M22X1.5 | M20X1.5 | 38.00 | 27.00 |
| -22 | DAMF152F-2222 | M22X1.5 | M22X1.5 | 31.00 | 27.00 |
| -24 | DAMF152F-2422 | M24X1.5 | M22X1.5 | 38.00 | 32.00 |
| -24 | DAMF152F-2424 | M24X1.5 | M24X1.5 | 38.00 | 32.00 |
| -26 | DAMF152F-2626 | M26X1.5 | M26X1.5 | 40.00 | 36.00 |
