Location: Home Fluid Connector Hydraulic Adaptors MetricDAMF1305

DAMF1305 Straight Connector Metric Female - SAE Male O Ring

DCompanyDME
AProduct RangeAdaptor
MThread TypesMetric
FConnection TypeFemale
1Adaptor StructureStraight
30Thread TypesSAE UNF
5Connection TypeMale O Ring

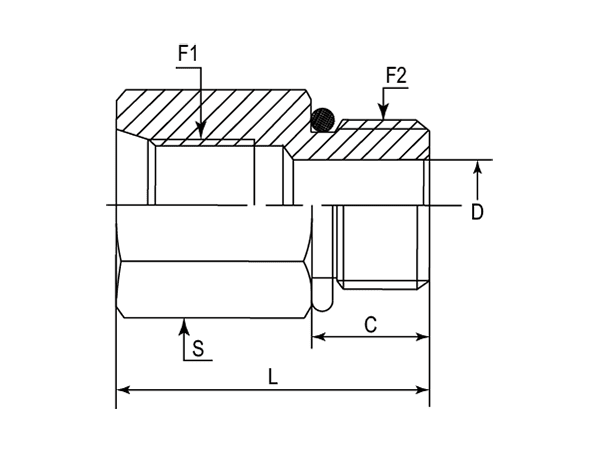

A drawing of DAMF1305 hydraulic adaptor.

A 3D drawing of DAMF1305 hydraulic adaptor.

A model drawing of DAMF1305 hydraulic adaptor.

DME&JDE Code: DAMF1305
Product Type: hydraulic adaptor
Standard: Metric
Structure: Straight
Connection Type: Female × Male
Thread Types: Metric × SAE UNF + O Ring
Sealing Method: O Rings

Technical Data of DAMF1305

-12
-14
-18
-22
-33
-48

* Filter the F1 Thread through selecting the -XX options

A drawing of DAMF1305 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S
-	-	Metric	UNF	mm	mm	mm	mm
-01	DAMF1305-1206	M12X1.5	9/16"-18	12.00	7.49	30.00	17.00
-14	DAMF1305-1404	M14X1.5	7/16"-20	9.10	4.40	33.00	22.23
-14	DAMF1305-1405	M14X1.5	1/2"-20	9.14	5.94	31.50	20.64
-18	DAMF1305-1806	M18X1.5	9/16"-18	9.93	7.54	36.83	25.40
-22	DAMF1305-2208	M22X1.5	3/4"-16	11.13	9.93	38.10	28.58
-33	DAMF1305-3312	M33X2	11/16"-12	15.09	15.47	46.00	41.28
-48	DAMF1305-4820	M48X2	15/8"-12	15.09	27.38	47.75	57.15
