* Filter the F1 Thread through selecting the -XX options

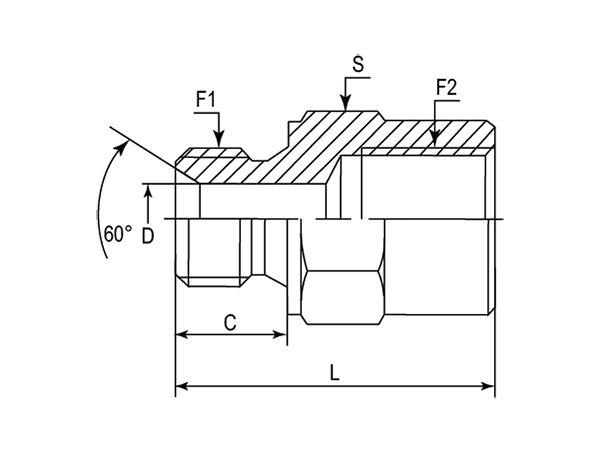

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D | L | S |
|---|---|---|---|---|---|---|---|
| - | - | Metric | NPTF | mm | mm | mm | mm |
| -01 | DAMM128F-0402 | M4X0.7 | 1/8"-27 | 8.00 | 1.00 | 26.50 | 14.00 |
| -06 | DAMM128F-0602 | M6X1 | 1/8"-27 | 8.00 | 2.00 | 26.50 | 14.00 |
| -08 | DAMM128F-0802 | M8X1 | 1/8"-27 | 8.50 | 3.00 | 26.50 | 14.00 |
| -10 | DAMM128F-1002 | M10X1 | 1/8"-27 | 8.00 | 4.00 | 22.00 | 15.88 |
| -10 | DAMM128F-1004 | M10X1 | 1/4"-18 | 8.00 | 4.00 | 28.00 | 19.00 |
| -10 | DAMM128F-1008 | M10X1 | 1/2"-14 | 8.00 | 4.00 | 37.00 | 28.58 |
| -12 | DAMM128F-1202 | M12X1.5 | 1/8"-27 | 10.00 | 4.00 | 25.50 | 17.00 |
| -12 | DAMM128F-1204 | M12X1.5 | 1/4"-18 | 10.00 | 4.00 | 30.00 | 19.00 |
| -12 | DAMM128F-1206 | M12X1.5 | 3/8"-18 | 10.00 | 6.00 | 33.00 | 22.00 |
| -14 | DAMM128F-1404 | M14X1.5 | 1/4"-18 | 12.00 | 6.00 | 32.00 | 19.00 |
| -14 | DAMM128F-1406 | M14X1.5 | 3/8"-18 | 12.00 | 6.00 | 35.00 | 22.00 |
| -16 | DAMM128F-1602 | M16X1.5 | 1/8"-27 | 12.00 | 8.00 | 26.50 | 22.00 |
| -16 | DAMM128F-1604 | M16X1.5 | 1/4"-18 | 12.00 | 8.00 | 34.50 | 22.00 |
| -16 | DAMM128F-1606 | M16X1.5 | 3/8"-18 | 12.00 | 8.00 | 31.00 | 22.00 |
| -16 | DAMM128F-1608 | M16X1.5 | 1/2"-14 | 12.00 | 8.00 | 37.00 | 28.58 |
| -18 | DAMM128F-1804 | M18X1.5 | 1/4"-18 | 12.00 | 10.00 | 35.00 | 24.00 |
| -18 | DAMM128F-1806 | M18X1.5 | 3/8"-18 | 12.00 | 10.00 | 32.00 | 24.00 |
| -18 | DAMM128F-1808 | M18X1.5 | 1/2"-14 | 12.00 | 10.00 | 37.00 | 28.58 |
| -20 | DAMM128F-2004 | M20X1.5 | 1/4"-18 | 14.00 | 12.00 | 35.00 | 26.97 |
| -20 | DAMM128F-2006 | M20X1.5 | 3/8"-18 | 14.00 | 12.00 | 34.00 | 26.97 |
| -20 | DAMM128F-2008 | M20X1.5 | 1/2"-14 | 14.00 | 12.00 | 39.00 | 28.58 |
| -22 | DAMM128F-2204 | M22X1.5 | 1/4"-18 | 14.00 | 14.10 | 36.00 | 26.97 |
| -22 | DAMM128F-2206 | M22X1.5 | 3/8"-18 | 14.00 | 14.10 | 36.00 | 26.97 |
| -22 | DAMM128F-2208 | M22X1.5 | 1/2"-14 | 14.00 | 14.10 | 39.00 | 28.58 |
| -22 | DAMM128F-2212 | M22X1.5 | 3/4"-14 | 14.00 | 14.10 | 42.50 | 34.93 |
| -24 | DAMM128F-2408 | M24X1.5 | 1/2"-14 | 14.00 | 15.00 | 39.00 | 30.00 |
| -24 | DAMM128F-2412 | M24X1.5 | 3/4"-14 | 14.00 | 15.00 | 39.00 | 34.93 |
| -26 | DAMM128F-2604 | M26X1.5 | 1/4"-18 | 16.00 | 15.00 | 38.00 | 32.00 |
| -26 | DAMM128F-2608 | M26X1.5 | 1/2"-14 | 16.00 | 15.00 | 41.00 | 32.00 |
| -26 | DAMM128F-2612 | M26X1.5 | 3/4"-14 | 16.00 | 15.00 | 41.60 | 34.93 |
| -27 | DAMM128F-2712 | M27X2 | 3/4"-14 | 16.00 | 15.00 | 41.60 | 34.93 |
| -30 | DAMM128F-3008 | M30X1.5 | 1/2"-14 | 18.00 | 21.50 | 46.00 | 36.00 |
| -30 | DAMM128F-3012 | M30X2 | 3/4"-14 | 18.00 | 21.50 | 48.50 | 36.00 |
| -33 | DAMM128F-3316 | M33X2 | 1"-11-1/2 | 16.00 | 23.00 | 47.00 | 41.28 |
| -40 | DAMM128F-4024 | M40X2 | 1-1/2''-11-1/2 | 20.00 | 26.60 | 58.50 | 60.00 |
| -42 | DAMM128F-4216 | M42X2 | 1"-11-1/2 | 20.00 | 28.60 | 51.00 | 50.00 |
| -42 | DAMM128F-4220 | M42X2 | 1-1/4''-11-1/2 | 20.00 | 28.60 | 57.50 | 50.80 |
| -42 | DAMM128F-4224 | M42X2 | 1-1/2''-11-1/2 | 20.00 | 28.60 | 59.00 | 60.00 |
| -48 | DAMM128F-4824 | M48X2 | 1-1/2''-11-1/2 | 20.00 | 32.00 | 58.50 | 60.00 |
