* Filter the F1 Thread through selecting the -XX options

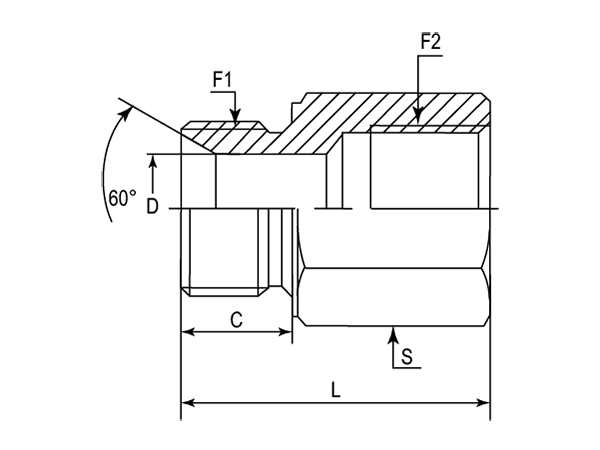

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D | L | S |
|---|---|---|---|---|---|---|---|
| - | - | Metric | Metric | mm | mm | mm | mm |
| -01 | DAMM152F-0806 | M8X1 | M6X1 | 8.00 | 3.00 | 25.00 | 13.00 |
| -10 | DAMM152F-1008 | M10X1 | M8X1 | 8.00 | 3.50 | 8.00 | 14.00 |
| -14 | DAMM152F-1410 | M14X1.5 | M10X1 | 12.00 | 6.00 | 30.00 | 19.00 |
| -16 | DAMM152F-1612 | M16X1.5 | M12X1.5 | 12.00 | 8.00 | 31.50 | 22.00 |
| -18 | DAMM152F-1812 | M18X1.5 | M12X1.5 | 12.00 | 10.00 | 22.00 | 24.00 |
| -18 | DAMM152F-1814 | M18X1.5 | M14X1.5 | 12.00 | 10.00 | 32.50 | 24.00 |
| -18 | DAMM152F-1816 | M18X1.5 | M16X1.5 | 12.00 | 10.00 | 33.00 | 24.00 |
| -18 | DAMM152F-1827 | M18X1.5 | M27X2 | 12.00 | 10.00 | 40.00 | 32.00 |
| -20 | DAMM152F-2014 | M20X1.5 | M14X1.5 | 14.00 | 12.00 | 35.00 | 27.00 |
| -20 | DAMM152F-2016 | M20X1.5 | M16X1.5 | 14.00 | 12.00 | 36.50 | 27.00 |
| -22 | DAMM152F-2214 | M22X1.5 | M14X1.5 | 14.00 | 14.10 | 35.00 | 27.00 |
| -22 | DAMM152F-2218 | M22X1.5 | M18X1.5 | 14.00 | 14.10 | 36.00 | 27.00 |
| -22 | DAMM152F-2222 | M22X1.5 | M22X1.5 | 14.00 | 14.10 | 39.00 | 27.00 |
| -24 | DAMM152F-2418 | M24X1.5 | M18X1.5 | 14.00 | 15.00 | 36.00 | 30.00 |
| -24 | DAMM152F-2420 | M24X1.5 | M20X1.5 | 14.00 | 15.00 | 41.00 | 30.00 |
| -26 | DAMM152F-2620 | M26X1.5 | M20X1.5 | 16.00 | 15.00 | 43.00 | 32.00 |
| -26 | DAMM152F-2622 | M26X1.5 | M22X1.5 | 16.00 | 15.00 | 44.00 | 32.00 |
| -27 | DAMM152F-2718 | M27X2 | M18X1.5 | 16.00 | 15.00 | 40.00 | 32.00 |
| -30 | DAMM152F-3022 | M30X2 | M22X1.5 | 18.00 | 19.50 | 45.00 | 36.00 |
| -30 | DAMM152F-3026 | M30X2 | M26X1.5 | 18.00 | 19.50 | 48.00 | 36.00 |
| -33 | DAMM152F-3314 | M33X2 | M14X1.5 | 18.00 | 21.50 | 35.00 | 41.00 |
| -36 | DAMM152F-3630 | M36X2 | M30X2 | 18.00 | 25.00 | 49.00 | 46.00 |
| -42 | DAMM152F-4214 | M42X2 | M14X1.5 | 20.00 | 32.00 | 37.00 | 50.00 |
| -48 | DAMM152F-4842 | M48X2 | M42X2 | 20.00 | 32.00 | 56.00 | 55.00 |
