* Filter the F1 Thread through selecting the -XX options

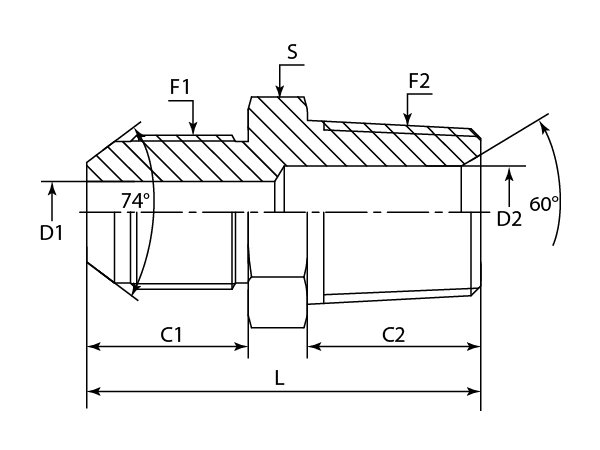

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | NPTF | mm | mm | mm | mm | mm | mm |
| -01 | DAJCMM128M-1202 | M12X1.5 | 1/8"-27 | 15.70 | 10.50 | 5.00 | 4.78 | 32.00 | 14 |
| -01 | DAJCMM128M-1204 | M12X1.5 | 1/4"-18 | 15.70 | 15.00 | 5.00 | 7.14 | 36.50 | 14 |
| -14 | DAJCMM128M-1402 | M14X1.5 | 1/8"-27 | 17.00 | 10.50 | 5.00 | 4.78 | 33.00 | 17 |
| -14 | DAJCMM128M-1404 | M14X1.5 | 1/4"-18 | 17.00 | 15.00 | 5.00 | 7.14 | 38.00 | 17 |
| -16 | DAJCMM128M-1604 | M16X1.5 | 1/4"-18 | 18.00 | 15.00 | 7.00 | 7.14 | 39.00 | 17 |
| -16 | DAJCMM128M-1606 | M16X1.5 | 3/8"-18 | 18.00 | 16.00 | 7.00 | 10.31 | 40.00 | 19 |
| -18 | DAJCMM128M-1804 | M18X1.5 | 1/4"-18 | 18.00 | 15.00 | 8.50 | 7.14 | 39.00 | 19 |
| -18 | DAJCMM128M-1806 | M18X1.5 | 3/8"-18 | 18.00 | 16.00 | 8.50 | 10.31 | 40.00 | 19 |
| -18 | DAJCMM128M-1808 | M18X1.5 | 1/2"-14 | 18.00 | 19.50 | 8.50 | 13.49 | 45.50 | 22 |
| -22 | DAJCMM128M-2206 | M22X1.5 | 3/8"-18 | 19.50 | 16.00 | 12.00 | 10.31 | 43.50 | 24 |
| -22 | DAJCMM128M-2208 | M22X1.5 | 1/2"-14 | 19.50 | 19.50 | 12.00 | 13.49 | 47.00 | 24 |
| -27 | DAJCMM128M-2706 | M27X1.5 | 3/8"-18 | 20.00 | 16.50 | 16.70 | 10.31 | 46.00 | 30 |
| -27 | DAJCMM128M-2708 | M27X1.5 | 1/2"-14 | 20.00 | 19.50 | 16.70 | 13.49 | 49.50 | 30 |
| -27 | DAJCMM128M-2712 | M27X1.5 | 3/4"-14 | 20.00 | 19.50 | 16.70 | 18.26 | 49.50 | 30 |
| -27 | DAJCMM128M-2716 | M27X1.5 | 1"-11 1/2 | 20.00 | 25.50 | 16.70 | 23.83 | 56.50 | 36 |
| -30 | DAJCMM128M-3012 | M30X1.5 | 3/4"-14 | 23.00 | 19.50 | 18.50 | 18.26 | 53.50 | 32 |
| -33 | DAJCMM128M-3312 | M33X2 | 3/4"-14 | 26.00 | 19.50 | 20.00 | 18.26 | 56.50 | 36 |
| -36 | DAJCMM128M-3616 | M36X2 | 1"-11-1/2 | 26.00 | 25.50 | 26.00 | 23.83 | 63.00 | 41 |
| -39 | DAJCMM128M-3916 | M39X2 | 1"-11-1/2 | 26.00 | 25.50 | 27.00 | 23.83 | 64.50 | 41 |
| -45 | DAJCMM128M-4516 | M45X2 | 1"-11-1/2 | 28.50 | 25.50 | 33.00 | 23.83 | 67.00 | 46 |
| -45 | DAJCMM128M-4520 | M45X2 | 1-1/4"-11-1/2 | 28.50 | 26.50 | 33.00 | 31.75 | 68.00 | 46 |
| -45 | DAJCMM128M-4524 | M45X2 | 1-1/2"-11-1/2 | 28.50 | 27.50 | 33.00 | 38.10 | 71.00 | 50 |
