Location: Home Fluid Connector Hydraulic Adaptors MetricDAJMM128M

DAJMM128M Metric Male 74° Cone -NPTF Male

DCompanyDME
AProduct RangeAdaptor
JMThread TypesMetric 74°
MConnection TypeMale
1Adaptor StructureStraight
28Thread TypesNPTF
MConnection TypeMale

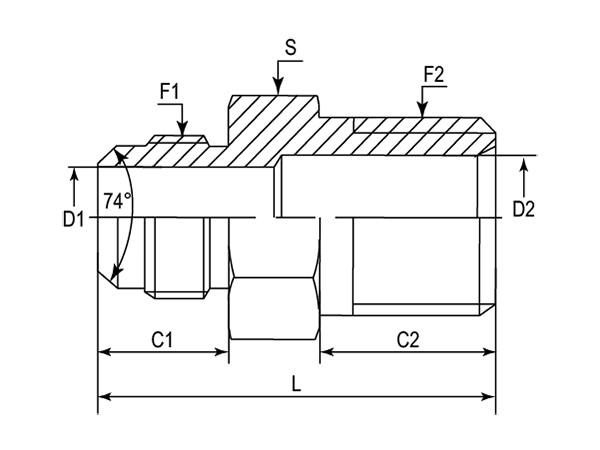

A drawing of DAJMM128M hydraulic adaptor.

A 3D drawing of DAJMM128M hydraulic adaptor.

A model drawing of DAJMM128M hydraulic adaptor.

DME&JDE Code: DAJMM128M
Product Type: hydraulic adaptor
Standard: Metric
Structure: Straight
Connection Type: Male × Male
Thread types: Metric 74° Cone × NPTF

Technical Data of DAJMM128M

-16
-18
-22
-30

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJMM128M hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-	-	Metric	NPTF	mm	mm	mm	mm	mm	mm
-01	DAJMM128M-1606	M16X1.5	3/8"-18	18.00	14.22	7.00	10.31	40.00	19.00
-18	DAJMM128M-1806	M18X1.5	3/8"-18	18.00	14.22	8.50	10.31	40.00	19.00
-22	DAJMM128M-2206	M22X1.5	3/8"-18	20.00	14.22	12.00	10.31	42.20	24.00
-30	DAJMM128M-3012	M30X1.5	3/4"-14	26.00	19.05	18.50	18.26	56.00	32.00
