DAMM1000 Male Plug Metric Male 60°

  • DCompanyDME
  • AProduct RangeAdaptor
  • MThread TypesMetric
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 000Other FeaturesNut/Plug
  • DME&JDE Code: DAMM1000
  • Product Type: hydraulic adaptor
  • Standard: Metric
  • Connection Type: Male × Male
  • Thread Types: Metric 60°
  • Other Features: Nut/Plug
Technical Data of DAMM1000
  • -08
  • -10
  • -12
  • -14
  • -16
  • -18
  • -20
  • -22
  • -24
  • -26
  • -30
  • -36
  • -41

* Filter the F1 Thread through selecting the -XX options

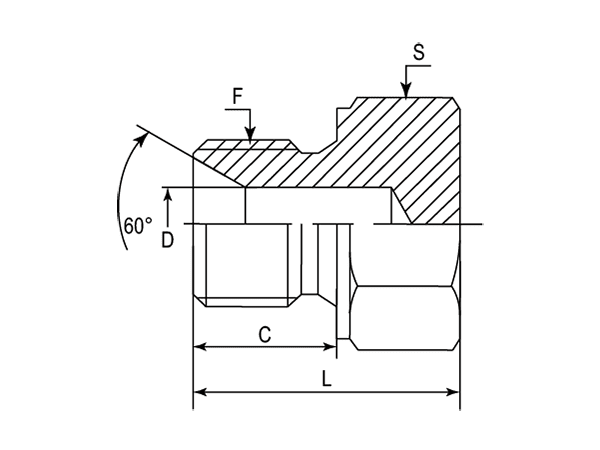

A drawing of DAMM1000 hydraulic adaptor.
- Part Number F (Thread) C D L S
- - Metric mm mm mm mm
-01 DAMM1000-0800 M8X1 8.00 2.00 14.00 13.00
-10 DAMM1000-1000 M10X1 8.00 4.00 16.00 14.00
-12 DAMM1000-1200 M12X1.5 10.00 4.00 18.00 17.00
-14 DAMM1000-1400 M14X1.5 12.00 6.00 22.00 19.00
-16 DAMM1000-1600 M16X1.5 12.00 8.00 22.00 22.00
-18 DAMM1000-1800 M18X1.5 12.00 10.00 20.00 24.00
-20 DAMM1000-2000 M20X1.5 14.00 12.00 24.00 27.00
-22 DAMM1000-2200 M22X1.5 14.00 14.10 24.00 27.00
-24 DAMM1000-2400 M24X1.5 14.00 15.00 25.00 30.00
-26 DAMM1000-2600 M26X1.5 16.00 15.00 28.00 32.00
-30 DAMM1000-3000 M30X2 18.00 19.00 30.00 36.00
-36 DAMM1000-3600 M36X2 18.00 25.00 32.00 46.00
-41 DAMM1000-4200 M42X2 20.00 28.60 34.00 50.00
