* Filter the F1 Thread through selecting the -XX options

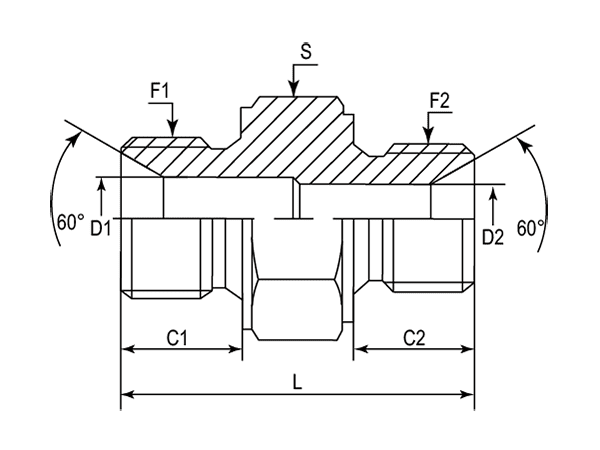

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | Metric | mm | mm | mm | mm | mm | mm |
| -01 | DAMM152M-0808 | M8X1 | M8X1 | 8.00 | 8.00 | 3.00 | 3.00 | 24.00 | 14.00 |
| -10 | DAMM152M-1008 | M10X1 | M8X1 | 8.00 | 8.00 | 3.00 | 3.00 | 25.00 | 14.00 |
| -10 | DAMM152M-1010 | M10X1 | M10X1 | 8.00 | 8.00 | 3.50 | 3.50 | 25.00 | 14.00 |
| -12 | DAMM152M-1210 | M12X1.5 | M10X1 | 10.00 | 8.00 | 4.00 | 4.00 | 27.00 | 17.00 |
| -12 | DAMM152M-1212 | M12X1.5 | M12X1.5 | 10.00 | 10.00 | 5.00 | 5.00 | 29.00 | 17.00 |
| -14 | DAMM152M-1412 | M14X1.5 | M12X1.5 | 12.00 | 10.00 | 5.00 | 5.00 | 33.00 | 19.00 |
| -14 | DAMM152M-1414 | M14X1.5 | M14X1.5 | 11.00 | 11.00 | 6.00 | 6.00 | 34.00 | 19.00 |
| -16 | DAMM152M-1612 | M16X1.5 | M12X1.5 | 12.00 | 10.00 | 8.00 | 5.00 | 34.00 | 22.00 |
| -16 | DAMM152M-1614 | M16X1.5 | M14X1.5 | 12.00 | 12.00 | 6.00 | 6.00 | 35.00 | 22.00 |
| -16 | DAMM152M-1616 | M16X1.5 | M16X1.5 | 12.00 | 12.00 | 8.00 | 8.00 | 36.00 | 22.00 |
| -18 | DAMM152M-1812 | M18X1.5 | M12X1.5 | 12.00 | 10.00 | 10.00 | 5.00 | 34.00 | 24.00 |
| -18 | DAMM152M-1816 | M18X1.5 | M16X1.5 | 12.00 | 12.00 | 8.00 | 8.00 | 36.00 | 24.00 |
| -18 | DAMM152M-1818 | M18X1.5 | M18X1.5 | 12.00 | 12.00 | 10.00 | 10.00 | 36.00 | 24.00 |
| -20 | DAMM152M-2018 | M20X1.5 | M18X1.5 | 14.00 | 12.00 | 10.00 | 10.00 | 38.00 | 27.00 |
| -20 | DAMM152M-2020 | M20X1.5 | M20X1.5 | 14.00 | 14.00 | 12.00 | 12.00 | 41.00 | 27.00 |
| -22 | DAMM152M-2216 | M22X1.5 | M16X1.5 | 14.00 | 12.00 | 14.10 | 8.00 | 39.50 | 27.00 |
| -22 | DAMM152M-2218 | M22X1.5 | M18X1.5 | 14.00 | 12.00 | 14.10 | 10.00 | 39.50 | 27.00 |
| -22 | DAMM152M-2222 | M22X1.5 | M22X1.5 | 14.00 | 14.00 | 14.10 | 14.10 | 41.50 | 27.00 |
| -24 | DAMM152M-2420 | M24X1.5 | M20X1.5 | 14.00 | 14.00 | 15.00 | 12.00 | 43.00 | 30.00 |
| -24 | DAMM152M-2422 | M24X1.5 | M22X1.5 | 14.00 | 14.00 | 14.10 | 14.10 | 43.00 | 30.00 |
| -24 | DAMM152M-2424 | M24X1.5 | M24X1.5 | 14.00 | 14.00 | 15.00 | 15.00 | 43.00 | 30.00 |
| -26 | DAMM152M-2618 | M26X1.5 | M18X1.5 | 16.00 | 12.00 | 15.00 | 10.00 | 43.00 | 32.00 |
| -26 | DAMM152M-2622 | M26X1.5 | M22X1.5 | 16.00 | 14.00 | 14.10 | 14.10 | 45.00 | 32.00 |
| -26 | DAMM152M-2626 | M26X1.5 | M26X1.5 | 16.00 | 16.00 | 15.00 | 15.00 | 47.00 | 32.00 |
| -30 | DAMM152M-3030 | M30X2 | M30X2 | 18.00 | 18.00 | 19.50 | 19.50 | 49.00 | 36.00 |
