DAJCMMT52JCM Branch Tee Metric Male 74° – Metric Male 74°

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCMThread TypesMetric 74°Cone
  • MConnection TypeMale
  • TAdaptor StructureBranch Tee
  • 52Thread TypesMetric
  • JCMThread TypesMetric 74°Cone
  • DME&JDE Code: DAJCMMT52JCM
  • Product Type: Hydraulic Adaptors
  • Standard: Metric
  • Structure: Branch Tee
  • Connection Type: Male × Male × Male
  • Thread Types: Metric 74° Cone × Metric 74° Cone × Metric 74° Cone
Technical Data of DAJCMMT52JCM
  • -14
  • -16
  • -18
  • -22
  • -27
  • -30
  • -33

* Filter the F1 Thread through selecting the -XX options

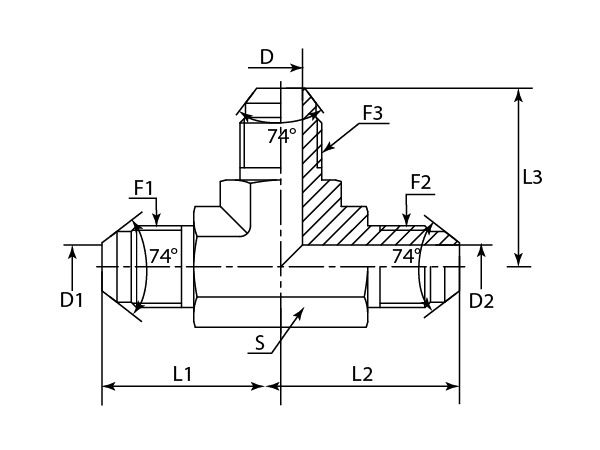

A drawing of DAJCMMT52JCM hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) F3 (Thread) D1 D2 D3 L1 L2 L3 S
- - METRIC METRIC METRIC mm mm mm mm mm mm mm
-01 DAJCMMT52JCM-1414 M14X1.5 M14X1.5 M14X1.5 5.00 5.00 5.00 27.00 27.00 27.00 14
-16 DAJCMMT52JCM-1616 M16X1.5 M16X1.5 M16X1.5 7.00 7.00 7.00 29.50 29.50 29.50 16
-18 DAJCMMT52JCM-1818 M18X1.5 M18X1.5 M18X1.5 8.50 8.50 8.50 34.00 34.00 34.00 19
-22 DAJCMMT52JCM-2222 M22X1.5 M22X1.5 M22X1.5 12.00 12.00 12.00 37.50 37.50 37.50 22
-27 DAJCMMT52JCM-2727 M27X1.5 M27X1.5 M27X1.5 16.70 16.70 16.70 41.50 41.50 41.50 27
-30 DAJCMMT52JCM-3030 M30X1.5 M27X1.5 M27X1.5 18.50 18.50 18.50 42.80 42.80 42.80 30
-33 DAJCMMT52JCM-3333 M33X2 M33X2 M33X2 20.00 20.00 20.00 49.50 49.50 49.50 33
