DAMM105F Straight Connector Metric Male 60° Cone - BSPP Fixed Female

  • DCompanyDME
  • AProduct RangeAdaptor
  • MThread TypesMetric
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 05Thread TypesBSPP
  • FConnection TypeFemale
  • DME&JDE Code: DAMM105F
  • Product Type: hydraulic adaptor
  • Standard: Metric
  • Structure: Straight
  • Connection Type: Male × Fixed Female
  • Thread Types: Metric 60° Cone × BSPP
Technical Data of DAMM105F
  • -12
  • -14
  • -16
  • -18
  • -22

* Filter the F1 Thread through selecting the -XX options

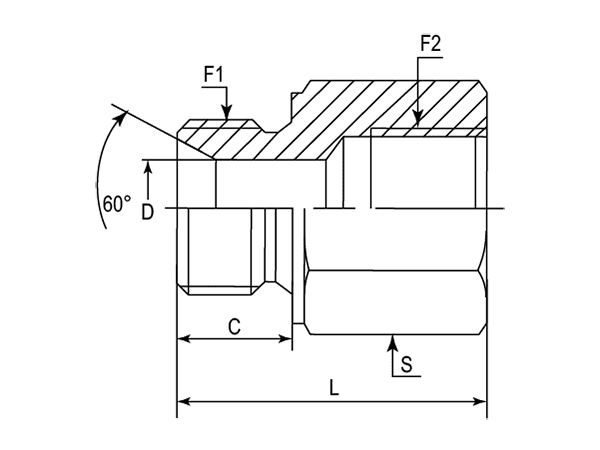

A drawing of DAMM105F hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) C D L S
- - Metric BSPP mm mm mm mm
-01 DAMM105F-1204 M12X1.5 1/4"-19 10.00 4.00 30.00 19.00
-14 DAMM105F-1404 M14X1.5 1/4"-19 12.00 6.00 31.00 19.00
-16 DAMM105F-1604 M16X1.5 1/4"-19 12.00 8.00 31.00 22.00
-16 DAMM105F-1606 M16X1.5 3/8"-19 12.00 8.00 32.50 22.00
-16 DAMM105F-1608 M16X1.5 1/2"-14 12.00 8.00 38.00 27.00
-18 DAMM105F-1804 M18X1.5 1/4"-19 12.00 10.00 31.00 24.00
-18 DAMM105F-1806 M18X1.5 3/8"-19 12.00 10.00 32.00 24.00
-18 DAMM105F-1808 M18X1.5 1/2"-14 12.00 10.00 38.00 27.00
-22 DAMM105F-2204 M22X1.5 1/4"-19 14.00 14.10 26.00 27.00
-22 DAMM105F-2206 M22X1.5 3/8"-19 14.00 14.10 35.00 27.00
-22 DAMM105F-2208 M22X1.5 1/2"-14 14.00 14.10 38.00 27.00
