Location: Home Fluid Connector Hydraulic Adaptors MetricDAJMM152M

DAJMM152M Metric Male 74° Cone - Metric Male Bonded Seal Type

DCompanyDME
AProduct RangeAdaptor
JMThread TypesMetric 74°
MConnection TypeMale
1Adaptor StructureStraight
52Thread TypesMetric
MConnection TypeMale

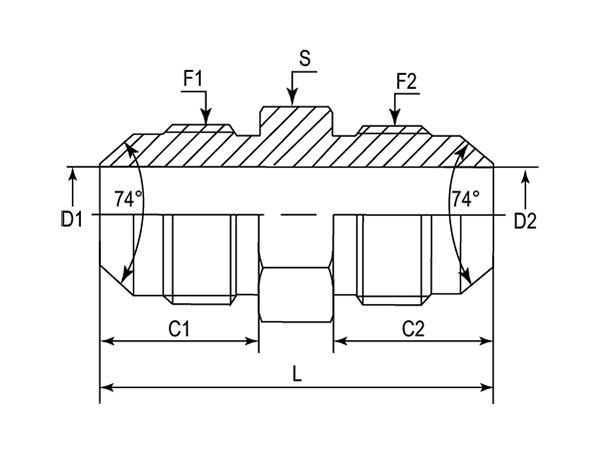

A drawing of DAJMM152M hydraulic adaptor.

A 3D drawing of DAJMM152M hydraulic adaptor.

A model drawing of DAJMM152M hydraulic adaptor.

DME&JDE Code: DAJMM152M
Product Type: hydraulic adaptor
Standard: Metric
Structure: Straight
Connection Type: Male × Male
Thread Types: Metric 74° Cone × Metric Bonded Seal Type

Technical Data of DAJMM152M

-14
-16
-18
-22

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJMM152M hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-	-	Metric	Metric	mm	mm	mm	mm	mm	mm
-01	DAJMM152M-1414	M14X1.5	M14X1.5	17.00	17.00	5.00	5.00	40.00	17.00
-16	DAJMM152M-1616	M16X1.5	M16X1.5	18.00	18.00	7.00	7.00	42.00	17.00
-18	DAJMM152M-1818	M18X1.5	M18X1.5	18.00	18.00	8.50	8.50	42.00	19.00
-22	DAJMM152M-2222	M22X1.5	M22X1.5	20.00	20.00	12.00	12.00	48.00	24.00
