DAJCT128F Adaptor – DME&JDE Group

Technical Data of DAJCT128F

* Filter the F1 Thread through selecting the -XX options

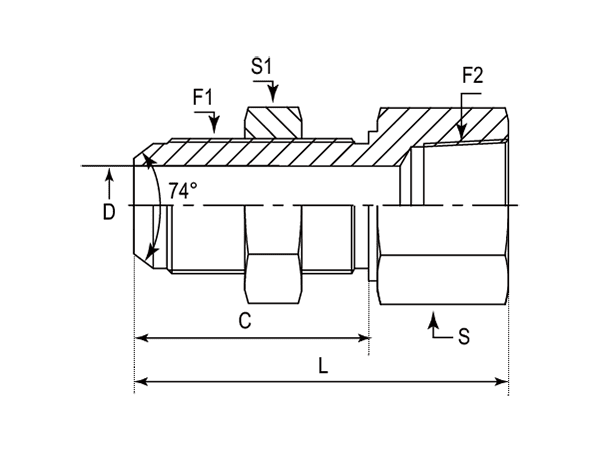

A drawing of DAJCT128F hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S	S1	Hex
-	-	UNF	NPTF	mm	mm	mm	-	-	-
-01	DAJCT128F-0402	7/16"-20	1/8"-27	30.48	4.37	46.70	17 mm	17 mm	Metric
-01	DAJCT128F-0404	7/16"-20	1/4"-18	30.48	4.37	52.83	19 mm	17 mm	Metric
-01	DAJCT128F-0406	7/16"-20	3/8"-18	30.48	4.37	55.60	22 mm	17 mm	Metric
-01	DAJCT128F-0402IN	7/16"-20	1/8"-27	30.48	4.37	46.70	11/16"	11/16"	Imperial
-01	DAJCT128F-0404IN	7/16"-20	1/4"-18	30.48	4.37	52.83	3/4"	11/16"	Imperial
-01	DAJCT128F-0406IN	7/16"-20	3/8"-18	30.48	4.37	55.60	7/8"	11/16"	Imperial
-06	DAJCT128F-0604	9/16"-18	1/4"-18	32.51	7.54	55.12	22 mm	22 mm	Metric
-06	DAJCT128F-0606	9/16"-18	3/8"-18	32.51	7.54	56.39	22 mm	22 mm	Metric
-06	DAJCT128F-0608	9/16"-18	1/2"-14	32.51	7.54	62.50	30 mm	22 mm	Metric
-06	DAJCT128F-0604IN	9/16"-18	1/4"-18	32.51	7.54	55.12	13/16"	13/16"	Imperial
-06	DAJCT128F-0606IN	9/16"-18	3/8"-18	32.51	7.54	56.39	7/8"	13/16"	Imperial
-06	DAJCT128F-0608IN	9/16"-18	1/2"-14	32.51	7.54	62.50	1-1/8"	13/16"	Imperial
-08	DAJCT128F-0806	3/4"-16	3/8"-18	36.60	9.93	59.40	27 mm	27 mm	Metric
-08	DAJCT128F-0808	3/4"-16	1/2"-14	36.58	9.93	66.30	30 mm	27 mm	Metric
-08	DAJCT128F-0806IN	3/4"-16	3/8"-18	36.60	9.93	59.40	1"	1"	Imperial
-08	DAJCT128F-0808IN	3/4"-16	1/2"-14	36.58	9.93	66.30	1-1/8"	1"	Imperial
-10	DAJCT128F-1008	7/8"-14	1/2"-14	40.13	12.29	70.10	30 mm	30 mm	Metric
-10	DAJCT128F-1008IN	7/8"-14	1/2"-14	40.13	12.29	70.10	1-1/8"	1-1/8"	Imperial
-12	DAJCT128F-1212	1-1/16"-12	3/4"-14	44.45	15.47	75.95	36 mm	36 mm	Metric
-12	DAJCT128F-1212IN	1-1/16"-12	3/4"-14	44.45	15.47	75.95	1-3/8"	1-3/8"	Imperial
-14	DAJCT128F-1412	1-3/16"-12	3/4"-14	44.45	18.26	76.00	41 mm	41 mm	Metric
-14	DAJCT128F-1412IN	1-3/16"-12	3/4"-14	44.45	18.26	76.00	1-1/2"	1-1/2"	Imperial
-16	DAJCT128F-1616	1-5/16"-12	1"-11-1/2	44.45	21.44	82.04	55 mm	55 mm	Metric
-16	DAJCT128F-1616IN	1-5/16"-12	1"-11-1/2	44.45	21.44	82.04	1-5/8"	1-5/8"	Imperial
-20	DAJCT128F-2020	1-5/8"-12	1-1/4"-11-1/2	45.70	27.38	84.80	50 mm	50 mm	Metric
-20	DAJCT128F-2020IN	1-5/8"-12	1-1/4"-11-1/2	45.70	27.38	84.80	2"	1-7/8"	Imperial
-24	DAJCT128F-2424	1-7/8"-12	1-1/2"-11-1/2	45.97	33.32	86.00	60 mm	55 mm	Metric
-24	DAJCT128F-2424IN	1-7/8"-12	1-1/2"-11-1/2	45.97	33.32	86.00	2-3/8"	2-1/8"	Imperial
-32	DAJCT128F-3232	2-1/2"-12	2"-11-1/2	53.10	45.24	91.50	75 mm	70 mm	Metric
-32	DAJCT128F-3232IN	2-1/2"-12	2"-11-1/2	53.10	45.24	91.50	2-7/8"	2-3/4"	Imperial
