DAJCM1000 Adaptor – DME&JDE Group

Technical Data of DAJCM1000

* Filter the F1 Thread through selecting the -XX options

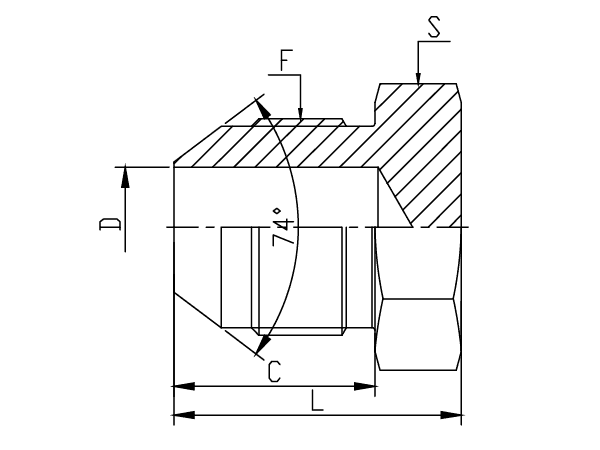

A drawing of DAJCM1000 hydraulic adaptor.

-	Part Number	F (Thread)	C	D	L	S	Hex
-	-	UNF	mm	mm	mm	-	-
-01	DAJCM1000-0200	5/16"-24	11.38	1.57	17.80	11 mm	Metric
-01	DAJCM1000-0200IN	5/16"-24	11.38	1.57	17.80	7/16"	Imperial
-03	DAJCM1000-0300	3/8"-24	12.17	3.18	12.17	11 mm	Metric
-03	DAJCM1000-0300IN	3/8"-24	12.17	3.18	12.17	7/16"	Imperial
-04	DAJCM1000-0400	7/16"-20	13.97	4.37	20.30	12 mm	Metric
-04	DAJCM1000-0400IN	7/16"-20	13.97	4.37	20.30	1/2"	Imperial
-05	DAJCM1000-0500	1/2"-20	13.97	5.94	20.30	14 mm	Metric
-05	DAJCM1000-0500IN	1/2"-20	13.97	5.94	20.30	9/16"	Imperial
-06	DAJCM1000-0600	9/16"-18	14.12	7.54	21.34	17 mm	Metric
-06	DAJCM1000-0600IN	9/16"-18	14.12	7.54	21.34	5/8"	Imperial
-07	DAJCM1000-0700	5/8"-18	15.70	7.14	22.50	17 mm	Metric
-07	DAJCM1000-0700IN	5/8"-18	15.70	7.14	22.50	11/16"	Imperial
-08	DAJCM1000-0800	3/4"-16	16.69	9.93	23.90	19 mm	Metric
-08	DAJCM1000-0800IN	3/4"-16	16.69	9.93	23.90	13/16"	Imperial
-10	DAJCM1000-1000	7/8"-14	19.25	12.29	27.90	24 mm	Metric
-10	DAJCM1000-1000IN	7/8"-14	19.25	12.29	27.90	15/16"	Imperial
-12	DAJCM1000-1200	1-1/16"-12	21.95	15.47	32.50	27 mm	Metric
-12	DAJCM1000-1200IN	1-1/16"-12	21.95	15.47	32.50	1-1/8"	Imperial
-14	DAJCM1000-1400	1-3/16"-12	23.00	18.00	33.30	32 mm	Metric
-14	DAJCM1000-1400IN	1-3/16"-12	23.00	18.00	33.30	1-1/4"	Imperial
-16	DAJCM1000-1600	1-5/16"-12	23.14	21.44	33.80	36 mm	Metric
-16	DAJCM1000-1600IN	1-5/16"-12	23.14	21.44	33.80	1-3/8"	Imperial
-20	DAJCM1000-2000	1-5/8"-12	24.33	27.40	36.80	46 mm	Metric
-20	DAJCM1000-2000IN	1-5/8"-12	24.33	27.40	36.80	1-11/16"	Imperial
-24	DAJCM1000-2400	1-7/8"-12	27.51	33.30	41.90	50 mm	Metric
-24	DAJCM1000-2400IN	1-7/8"-12	27.51	33.30	41.90	2"	Imperial
-32	DAJCM1000-3200	2-1/2"-12	33.86	45.24	52.10	65 mm	Metric
-32	DAJCM1000-3200IN	2-1/2"-12	33.86	45.24	52.10	2-5/8"	Imperial
