DAJC14251 Adaptor – DME&JDE Group

-	Part Number	F1 (Thread)	F2 (Thread)	C	L	D1	D2	S	S1	S2	Hex
-01	DAJC14251-0606	9/16"-18	9/16"-18	7.50	7.50	18.90	18.90	14 mm	19 mm	19 mm	Metric
-01	DAJC14251-0606IN	9/16"-18	9/16"-18	7.50	7.50	18.90	18.90	9/16"	3/4"	3/4"	Imperial
-08	DAJC14251-0808	3/4"-16	3/4"-16	9.90	9.90	21.80	21.80	19 mm	22 mm	22 mm	Metric
-08	DAJC14251-0808IN	3/4"-16	3/4"-16	9.90	9.90	21.80	21.80	3/4"	13/16"	13/16"	Imperial
-10	DAJC14251-1010	7/8"-14	7/8"-14	12.30	12.30	23.90	23.90	22 mm	27 mm	27 mm	Metric
-10	DAJC14251-1010IN	7/8"-14	7/8"-14	12.30	12.30	23.90	23.90	13/16"	1-1/8"	1-1/8"	Imperial
-12	DAJC14251-1212	1-1/16"-12	1-1/16"-12	15.47	15.47	23.90	23.90	27 mm	32 mm	32 mm	Metric
-12	DAJC14251-1212IN	1-1/16"-12	1-1/16"-12	15.47	15.47	23.90	23.90	1-1/8"	1-1/4"	1-1/4"	Imperial
-16	DAJC14251-1616	1-5/16"-12	1-5/16"-12	21.50	21.50	29.30	29.30	33 mm	41 mm	41 mm	Metric
-16	DAJC14251-1616IN	1-5/16"-12	1-5/16"-12	21.50	21.50	29.30	29.30	1-5/16"	1-1/2"	1-1/2"	Imperial

DAJCD0000

JIC Tube Nut

DAJCR0000

JIC Sleeve For Inch/Metric Tube

DAJCM125M

Straight Union JIC Male – JIC Male

DAJCM125M-LH

Straight Union JIC – JIC Male Large Hexagon

DAJCM1305

Straight Connector JIC Male – SAE Male + O Ring

DAJCM106Q

Straight JIC Male - BSPP Male + Retaining Ring + O Ring Seal

DAJCM1065

Straight Connector JIC Male – BSPP Male + O Ring Seal

DAJCM152Q

Straight JIC Male - Metric Male + Retaining Ring + O Ring Seal

DAJCM1525

Straight Connector JIC Male - Metric Male + O Ring Seal

DAJCM1061

Straight Connector JIC Male – BSPP 60°Male with ED Ring

DAJCM1521

Straight Connector JIC Male – Metric Male with ED Ring

DAJCM122M

Straight Union JIC Male – SAE Male Inverted Flare

DAJCM152M

Straight Connector JIC Male Cone – Metric Male 60°Cone

DAJCM105M

Straight Connector JIC Male – BSPP 60°Male

DAJCM107M

Straight Connector JIC Male – BSPT Male 60°

DAJCM128M

Straight Connector JIC Male – NPTF Male 60°

DAJCM152JM

Straight Connector JIC Male – JIS Metric Male 60°

DAJCM105JM

Straight Connector JIC Male – JIS BSPP Male 60°

DAJCM105F

Straight Connector JIC Male – BSPP Female 60°

DAJCM107F

Straight Connector JIC Male – BSPT Female

DAJCM152F

Straight Union JIC Male – Metric Fixed Female

DAJCM105JF

Straight Connector JIC Male – JIS BSPP Fixed Female

DAJCM152JF

Straight Connector JIC Male – JIS Metric Female

DAJCM128F

Straight Connector JIC Male – NPTF Female

DAJCT128F

Straight Connector Bulkhead JIC Male – NPTF Female

DAJCM1251

Straight Union JIC Male – JIC Swivel Female

DAJCM1081

Straight Connector JIC Male – BSPP Swivel Female 60°Cone

DAJC1106Q

Straight JIC Swivel Female – BSPP Male + Retaining Ring + O Ring

DAJC11065

Straight Connector JIC Swivel Female – BSPP Male + O Ring

DAJC11061

Straight Connector JIC Swivel Female – BSPP Male 60°with ED Seal

DAJC1152Q

Straight JIC Swivel Female – Metric Male + Retaining Ring + O Ring

DAJC11305

Straight Connector JIC Swivel Female – SAE Male + O Ring

DAJC11525

Straight Connector JIC Swivel Female – Metric Male + O Ring

DAJC1128M

Straight Connector JIC Swivel Female – NPTF Male 60°

DAJC1107M

Straight Connector JIC Swivel Female – BSPT Male 60°

DAJCF125M

Straight Connector JIC Fixed Female – JIC Male

DAJC3125M

Straight Connector JIC Swivel Female – JIC Male

DAJCF1251

Straight Connector JIC Fixed Female – JIC Swivel Female

DAJC11251

Straight Union JIC Swivel Female – JIC Swivel Female

DAJC1128F

Straight Connector JIC Swivel Female – NPTF Female

DAJC1105F

Straight Connector JIC Swivel Female – BSPP Fixed Female

DAJCF105F

Straight Coupling JIC Fixed Female – BSPP Fixed Female

DAJC1100B

Straight Connector JIC Female Swivel – Imperial/Metric Tube

DAJCM1000

Male Plug JIC

DAJCM100B

Straight Bonding(Socket Welding) Connector JIC Male – Imperial/Metric Tube

DAJC31000

JIC Female Cap

DAJC31000-C

JIC Female Cap

DAJCM130J

Straight Long Connector JIC Male – SAE Male + O Ring

DAJCM152Y

Long Connector JIC Male – Metric Male + Retaining Ring + O Ring

DAJCM152J

Straight Long Connector JIC Male – Metric Male + O Ring

DAJCM128P

Straight Long Connector JIC Male – NPTF Male 60°

DAJCM128M-LL

Straight X-Long Connector JIC Male – NPTF Male 60°

DAJCM106Y

Long Connector JIC Male – BSPP Male + Retaining Ring +O Ring

DAJCM106J

Straight Long Connector JIC Male – BSPP Male +O Ring

DAJCM125T

Straight Connector Bulkhead JIC Male – JIC Male

DAJCT1305

Bulkhead Connector JIC Male Cone – SAE Male + O Ring

DAJCT128M

Straight Connector Bulkhead JIC Male – NPTF Male 60°

DAJCT105M

Straight Union Bulkhead JIC Male Cone – NPTF Male 60°

DAJCLN

JIC Bulkhead Nut

MJ-BJM

Straight Connector JIC Male – Banjo UNF

DAJCM425M

45° Elbow JIC – JIC Male

DAJCM4305

45° Adjustable Elbow JIC Male – SAE Male + O Ring Boss

DAJCM406Q

45° Adjustable Elbow JIC Male - BSPP Male + O Ring + Retaining Ring

DAJCM4065

45° Adjustable Elbow JIC Male - BSPP Male + O Ring

DAUNF152M

Straight Connector SAE Female O Ring – Metric Male 60°

DAJCM930P

90° Adjustable Long Elbow JIC Male – SAE Male + O Ring + Retaining Ring

DAJCM452Q

45° Adjustable Elbow JIC Male – Metric Male + O Ring + Retaining Ring

DAJCM4525

45° Adjustable Elbow JIC Male – Metric Male + O Ring

DAJCM428M

45° Elbow Connector JIC Male – NPTF Male 60°

DAJCM407M

45° Elbow Connector JIC Male – BSPT Male 60°

DAJCM428F

45° Elbow Connector JIC Male – NPTF Female

DAJCM425T

45° Elbow Connector Bulkhead JIC Male – JIC Male

DAJCM4251

45°Elbow Union JIC Male – JIC Swivel Female

DAJCM4081

45° Elbow Connector JIC Male – BSPP Swivel Female 60°

DAJC14305

45° Adjustable Elbow JIC Swivel Female – SAE Male O Ring

DAJCM925M

90° Elbow Connector JIC Male – JIC Male

DAJCM9305

90° Adjustable Elbow JIC Male – SAE Male + O Ring

DAJCM906Q

90° Adjustable Elbow JIC Male – BSPP Male + O Ring + Retaining Ring

DAJCM9065

90° Adjustable Elbow JIC Male – BSPP Male + O Ring

DAJCM952Q

90° Adjustable Elbow JIC Male – Metric Male + O Ring + Retaining Ring

DAJCM9525

90° Adjustable Elbow JIC Male – Metric Male + O Ring

DAJCM928M

90° Elbow Connector JIC Male – NPTF Male

DAJCM928F

90° Elbow Connector JIC Male – NPTF Female

DAJCM905F

90° Elbow Connector JIC Male – BSPP Fixed Female

DAJCM905M

90° Elbow Connector JIC Male – BSPP Male 60°

DAJCM907M

90° Elbow Connector JIC Male – BSPT Male 60°

DAJCM907F

90° Elbow Connector JIC Male – BSPT Female

DAJCM900B

90° Elbow Union JIC Male – Braze Female

DAJCM900S

90° Elbow Union JIC Male – Buttweld Female

DAJCM9081

90° Elbow Connector JIC Male – BSPP Swivel Female 60°

DAJCM9251

90° Elbow Union JIC Male – JIC Swivel Female

DAJC19305

90° Adjustable Elbow JIC Swivel Female – SAE Male O Ring

DAJC1928M

90° Elbow Connector JIC Swivel Female – NPTF Male 60°

DAJC1928F

90° Elbow Connector JIC Swivel Female – NPTF Female

DAJC1907M

90° Elbow JIC Swivel Female – BSPT Male 60°

DAJC19251

90° Elbow Union JIC Swivel Male – JIC Swivel Female

DAJCM906Y

90° Adjustable Long Elbow JIC Male – BSPP Male + O Ring + Retaining Ring

DAJCM906J

90° Adjustable Long Elbow JIC Male – BSPP Male + O Ring

DAJCM952Y

90° Adjustable Long Elbow JIC Male – Metric Male + O Ring + Retaining Ring

DAJCM952J

90° Adjustable Long Elbow JIC Male – Metric Male + O Ring

DAJCM928P

90° Long Elbow Connector JIC Male – NPTF Male

DAJCM9289

90° Extra Long Elbow Connector JIC Male – NPTF Male

DAJCM906P

90° Adjustable Long Elbow JIC Male – SAE Male + O Ring + Retaining Ring

DAJCM930J

90° Adjustable X-Long Elbow JIC Male – SAE Male + O Ring

DAJCM925T

90° Bulkhead Elbow Connector JIC Male – JIC Male

DAJCM9251-B

90° Swept Elbow JIC Male – JIC Swivel Female

DAJCM9251-L-B

90° Swept Elbow JIC Male – Long JIC Swivel Female

DAJCMT25M

Branch Tee Union JIC Male – JIC Male

DAJCMT251

Branch Tee Union JIC Male – JIC Swivel Female

DAJCMT305

Branch Adjustable Tee JIC Male – SAE Male O Ring

DAJCMT06Q

Branch Adjustable Tee JIC Male – BSPP Male + O Ring + Retaining Ring

DAJCMT065

Branch Adjustable Tee JIC Male – BSPP Male + O Ring

DAJCMT52Q

Branch Adjustable Tee JIC Male – Metric Male + O Ring + Retaining Ring

DAJCMT525

Branch Adjustable Tee JIC Male – Metric Male + O Ring

DAJCMT28M

Branch Tee Connector JIC Male – NPTF Male

DAJCMT07M

Branch Tee Connector JIC Male – BSPT Male

DAJCMT28F

Branch Tee Connector JIC Male – NPTF Female

DAJCMT05F

Branch Tee Connector JIC Male – BSPP Fixed Female

DAJCMT25T

Branch Bulkhead Tee Union JIC Male – JIC Male

DAJC1T25M

Branch Bulkhead Tee Union JIC Swivel Female – JIC Male

DAJC1T28M

Branch Tee Union JIC Swivel Female – NPTF Male

DAJC1T251

Branch Tee Connector JIC Swivel Female – JIC Swivel Female

DAJCML251

Run Tee Union JIC Male – JIC Swivel Female

DAJCML305

Run Adjustable Tee JIC Male – SAE Male O Ring

DAJCML06Q

Run Adjustable Tee JIC Male – BSPP Male + O Ring + Retaining Ring

DAJCML065

Run Adjustable Tee JIC Male – BSPP Male + O Ring

DAJCML52Q

Run Adjustable Tee JIC Male – Metric Male + O Ring + Retaining Ring

DAJCML525

Run Adjustable Tee JIC Male – Metric Male + O Ring

DAJCML28M

Run Tee Connector JIC Male – NPTF Male

DAJCML07M

Run Tee Connector JIC Male – BSPT Male

DAJCML28F

Run Tee Connector JIC Male – NPTF Female

DAJCML05F

Run Tee Connector JIC Male – BSPP Fixed Female

DAJCML25T

Run Bulkhead Tee Connector JIC Male – JIC Male

DAJCMX25M

Cross Union JIC Male – JIC Male

DAUNM1305

Straight Connector SAE Male + O Ring – SAE Male + O Ring

DAUNM1000

Plug SAE Male O Ring

DVSTI-UN

Hexagon Socket SAE Male O Ring Plug

DAUNM1305B

Straight Adjustable Connector SAE Male – SAE Male + O Ring

DAUNF1305

Straight Connector SAE Female O Ring – SAE Male O Ring

DAUNF105M

Straight SAE Female O Ring – BSPP male 60° Cone

DAUNF106Q

Straight Connector SAE Female O Ring – BSPP Male + O Ring + Retaining Ring

DAUNF152Q

Straight Connector SAE Female O Ring – Metric Male + O Ring + Retaining Ring

DAUNF128M

Straight Connector SAE Female O Ring – NPTF 60° Male

DAUNF130F

Straight Connector SAE Female O Ring – SAE Female O Ring

DAUNF128F

Straight Connector SAE Female O Ring – NPTF Female

DAUNF1251

Straight Connector SAE Female 0 Ring – JIC Swivel Female 74°

DAUNF1241

Straight Connector SAE Female O Ring – ORFS Swivel Female

DAUNM4305

45° Adjustable Elbow SAE Male O Ring – SAE Male O Ring

DAUNM9305

90° Adjustable Elbow SAE Male O Ring – SAE Male O Ring

DAUNF9305

90° Adjustable Elbow SAE Solid Female – SAE Male + O Ring

DAUNFT305

Branch Adjustable Tee SAE Female O Ring – SAE Male + O Ring

DAUNFL305

Run Adjustable Tee SAE Female O Ring – SAE Male + O Ring

DAUNFT30F

Branch Tee Connector SAE Female O Ring – SAE Female O Ring

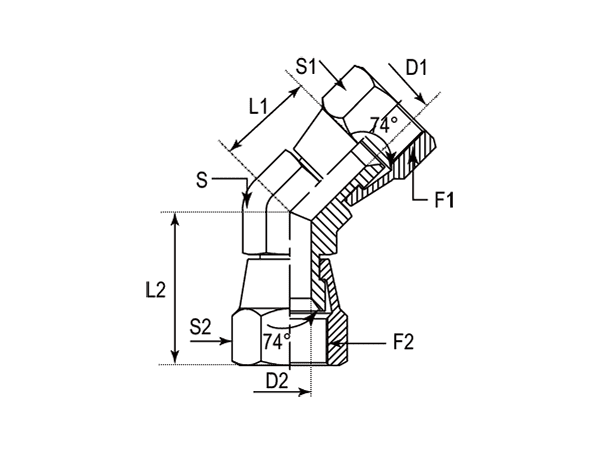

DAJC14251 45° Elbow Connector JIC Swivel Female – JIC Swivel Female
