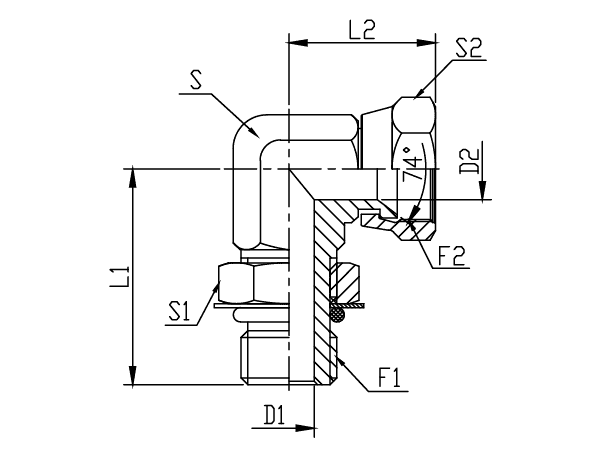

* Filter the F1 Thread through selecting the -XX options
- | Part Number | F1 (Thread) | F2 (Thread) | D1 | D2 | L1 | L2 | S | S1 | S2 | Hex |
---|---|---|---|---|---|---|---|---|---|---|---|
- | - | UNF | UNF | mm | mm | mm | mm | - | - | - | - |
-01 | DAJC19305-0404 | 7/16"-20 | 7/16"-20 | 4.37 | 4.37 | 16.66 | 26.20 | 11 mm | 14 mm | 14 mm | Metric |
-01 | DAJC19305-0406 | 7/16"-20 | 9/16"-18 | 4.37 | 7.54 | 20.50 | 31.80 | 14 mm | 14 mm | 14 mm | Metric |
-01 | DAJC19305-0404IN | 7/16"-20 | 7/16"-20 | 4.37 | 4.37 | 16.66 | 26.20 | 7/16" | 9/16" | 9/16" | Imperial |
-01 | DAJC19305-0406IN | 7/16"-20 | 9/16"-18 | 4.37 | 7.54 | 20.50 | 31.80 | 9/16" | 9/16" | 9/16" | Imperial |
-06 | DAJC19305-0604 | 9/16"-18 | 7/16"-20 | 7.54 | 4.37 | 22.22 | 30.20 | 14 mm | 17 mm | 14 mm | Metric |
-06 | DAJC19305-0606 | 9/16"-18 | 9/16"-18 | 7.54 | 7.54 | 22.22 | 31.80 | 14 mm | 17 mm | 17 mm | Metric |
-06 | DAJC19305-0608 | 9/16"-18 | 3/4"-16 | 7.54 | 9.93 | 27.18 | 36.80 | 19 mm | 17 mm | 22 mm | Metric |
-06 | DAJC19305-0604IN | 9/16"-18 | 7/16"-20 | 7.54 | 4.37 | 22.22 | 30.20 | 9/16" | 11/16" | 9/16" | Imperial |
-06 | DAJC19305-0606IN | 9/16"-18 | 9/16"-18 | 7.54 | 7.54 | 22.22 | 31.80 | 9/16" | 11/16" | 11/16" | Imperial |
-06 | DAJC19305-0608IN | 9/16"-18 | 3/4"-16 | 7.54 | 9.93 | 27.18 | 36.80 | 3/4" | 11/16" | 7/8" | Imperial |
-08 | DAJC19305-0806 | 3/4"-16 | 9/16"-18 | 9.93 | 7.54 | 24.13 | 33.50 | 19 mm | 22 mm | 17 mm | Metric |
-08 | DAJC19305-0808 | 3/4"-16 | 3/4"-16 | 9.93 | 9.93 | 24.33 | 36.80 | 19 mm | 22 mm | 22 mm | Metric |
-08 | DAJC19305-0810 | 3/4"-16 | 7/8"-14 | 9.93 | 12.29 | 26.70 | 43.20 | 22 mm | 22 mm | 27 mm | Metric |
-08 | DAJC19305-0812 | 3/4"-16 | 1-1/16"-12 | 9.93 | 15.47 | 28.50 | 49.30 | 27 mm | 22 mm | 32 mm | Metric |
-08 | DAJC19305-0806IN | 3/4"-16 | 9/16"-18 | 9.93 | 7.54 | 24.13 | 33.50 | 3/4" | 7/8" | 11/16" | Imperial |
-08 | DAJC19305-0808IN | 3/4"-16 | 3/4"-16 | 9.93 | 9.93 | 24.33 | 36.80 | 3/4" | 7/8" | 7/8" | Imperial |
-08 | DAJC19305-0810IN | 3/4"-16 | 7/8"-14 | 9.93 | 12.29 | 26.70 | 43.20 | 7/8" | 7/8" | 1" | Imperial |
-08 | DAJC19305-0812IN | 3/4"-16 | 1-1/16"-12 | 9.93 | 15.47 | 28.50 | 49.30 | 1-1/16" | 7/8" | 1-1/4" | Imperial |
-10 | DAJC19305-1008 | 7/8"-14 | 3/4"-16 | 12.29 | 9.93 | 28.45 | 39.10 | 22 mm | 27 mm | 22 mm | Metric |
-10 | DAJC19305-1010 | 7/8"-14 | 7/8"-14 | 12.29 | 12.29 | 28.45 | 43.20 | 22 mm | 27 mm | 27 mm | Metric |
-10 | DAJC19305-1012 | 7/8"-14 | 1-1/16"-12 | 12.29 | 15.47 | 29.30 | 49.30 | 27 mm | 27 mm | 32 mm | Metric |
-10 | DAJC19305-1008IN | 7/8"-14 | 3/4"-16 | 12.29 | 9.93 | 28.45 | 39.10 | 7/8" | 1" | 7/8" | Imperial |
-10 | DAJC19305-1010IN | 7/8"-14 | 7/8"-14 | 12.29 | 12.29 | 28.45 | 43.20 | 7/8" | 1" | 1" | Imperial |
-10 | DAJC19305-1012IN | 7/8"-14 | 1-1/16"-12 | 12.29 | 15.47 | 29.30 | 49.30 | 1-1/16" | 1" | 1-1/4" | Imperial |
-12 | DAJC19305-1212 | 1-1/16"-12 | 1-1/16"-12 | 15.47 | 15.47 | 30.18 | 49.30 | 27 mm | 32 mm | 32 mm | Metric |
-12 | DAJC19305-1216 | 1-5/16"-12 | 1-1/16"-12 | 21.44 | 15.47 | 51.10 | 35.26 | 33 mm | 41 mm | 32 mm | Metric |
-12 | DAJC19305-1212IN | 1-1/16"-12 | 1-1/16"-12 | 15.47 | 15.47 | 30.18 | 49.30 | 1-1/16" | 1-1/4" | 1-1/4" | Imperial |
-12 | DAJC19305-1216IN | 1-5/16"-12 | 1-1/16"-12 | 21.44 | 15.47 | 51.10 | 35.26 | 1-5/16" | 1-1/2" | 1-1/4" | Imperial |
-16 | DAJC19305-1616 | 1-5/16"-12 | 1-5/16"-12 | 21.44 | 21.44 | 35.71 | 51.10 | 33 mm | 41 mm | 41 mm | Metric |
-16 | DAJC19305-1616IN | 1-5/16"-12 | 1-5/16"-12 | 21.44 | 21.44 | 35.71 | 51.10 | 1-5/16" | 1-1/2" | 1-1/2" | Imperial |
-20 | DAJC19305-2020 | 1-5/8"-12 | 1-5/8"-12 | 27.38 | 27.38 | 42.80 | 57.20 | 41 mm | 50 mm | 50 mm | Metric |
-20 | DAJC19305-2020IN | 1-5/8"-12 | 1-5/8"-12 | 27.38 | 27.38 | 42.80 | 57.20 | 1-5/8" | 2" | 1-7/8" | Imperial |
-24 | DAJC19305-2424 | 1-7/8"-12 | 1-7/8"-12 | 33.32 | 33.32 | 47.14 | 60.70 | 50 mm | 58 mm | 55 mm | Metric |
-24 | DAJC19305-2424IN | 1-7/8"-12 | 1-7/8"-12 | 33.32 | 33.32 | 47.14 | 60.70 | 1-7/8" | 2-1/4" | 2-1/8" | Imperial |
