DAJC11305 Adaptor – DME&JDE Group

Technical Data of DAJC11305

* Filter the F1 Thread through selecting the -XX options

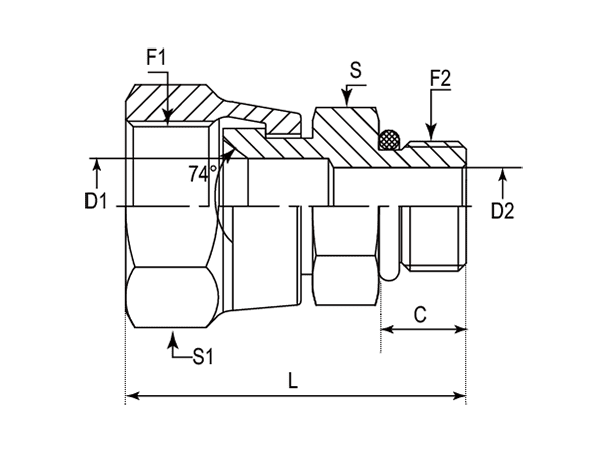

A drawing of DAJC11305 hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C	L	D1	D2	S	S1	Hex
-	-	UNF	UNF	mm	mm	mm	mm	-	-	-
-01	DAJC11305-0404	7/16"-20	7/16"-20	9.14	4.37	4.37	34.1	14 mm	14 mm	Metric
-01	DAJC11305-0405	7/16"-20	1/2"-20	9.14	4.37	5.94	34.8	17 mm	14 mm	Metric
-01	DAJC11305-0406	7/16"-20	9/16"-18	9.93	4.37	7.54	34.7	17 mm	14 mm	Metric
-01	DAJC11305-0404IN	7/16"-20	7/16"-20	9.14	4.37	4.37	34.1	9/16"	9/16"	Imperial
-01	DAJC11305-0405IN	7/16"-20	1/2"-20	9.14	4.37	5.94	34.8	5/8"	9/16"	Imperial
-01	DAJC11305-0406IN	7/16"-20	9/16"-18	9.93	4.37	7.54	34.7	11/16"	9/16"	Imperial
-05	DAJC11305-0505	1/2"-20	1/2"-20	9.14	5.94	5.94	34.80	17 mm	17 mm	Metric
-05	DAJC11305-0505IN	1/2"-20	1/2"-20	9.14	5.94	5.94	34.80	5/8"	5/8"	Imperial
-06	DAJC11305-0604	9/16"-18	7/16"-20	9.14	7.54	4.37	27.8	14 mm	19 mm	Metric
-06	DAJC11305-0606	9/16"-18	9/16"-18	9.93	7.54	7.54	38.4	17 mm	19 mm	Metric
-06	DAJC11305-0608	9/16"-18	3/4"-16	11.13	7.54	9.93	40.5	22 mm	19 mm	Metric
-06	DAJC11305-0610	9/16"-18	7/8"-14	12.7	7.54	12.29	43.5	27 mm	19 mm	Metric
-06	DAJC11305-0612	9/16"-18	1-1/16"-12	15.09	7.54	15.47	38	32 mm	19 mm	Metric
-06	DAJC11305-0604IN	9/16"-18	7/16"-20	9.14	7.54	4.37	27.8	9/16"	11/16"	Imperial
-06	DAJC11305-0606IN	9/16"-18	9/16"-18	9.93	7.54	7.54	38.4	11/16"	11/16"	Imperial
-06	DAJC11305-0608IN	9/16"-18	3/4"-16	11.13	7.54	9.93	40.5	7/8"	11/16"	Imperial
-06	DAJC11305-0610IN	9/16"-18	7/8"-14	12.7	7.54	12.29	43.5	1"	11/16"	Imperial
-06	DAJC11305-0612IN	9/16"-18	1-1/16"-12	15.09	7.54	15.47	38	1-1/4"	11/16"	Imperial
-08	DAJC11305-0806	3/4"-16	9/16"-18	9.93	7.54	7.54	39.9	27 mm	22 mm	Metric
-08	DAJC11305-0808	3/4"-16	3/4"-16	11.13	9.93	9.93	42.8	22 mm	22 mm	Metric
-08	DAJC11305-0810	3/4"-16	7/8"-14	12.7	9.93	12.29	46	27 mm	22 mm	Metric
-08	DAJC11305-0812	3/4"-16	1-1/16"-12	15.09	9.93	15.47	49	32 mm	22 mm	Metric
-08	DAJC11305-0806IN	3/4"-16	9/16"-18	9.93	7.54	7.54	39.9	13/16"	7/8"	Imperial
-08	DAJC11305-0808IN	3/4"-16	3/4"-16	11.13	9.93	9.93	42.8	7/8"	7/8"	Imperial
-08	DAJC11305-0810IN	3/4"-16	7/8"-14	12.7	9.93	12.29	46	1"	7/8"	Imperial
-08	DAJC11305-0812IN	3/4"-16	1-1/16"-12	15.09	9.93	15.47	49	1-1/4"	7/8"	Imperial
-10	DAJC11305-1006	7/8"-14	9/16"-18	9.93	12.29	7.54	34	22 mm	27 mm	Metric
-10	DAJC11305-1008	7/8"-14	3/4"-16	11.13	12.29	9.93	44.5	27 mm	27 mm	Metric
-10	DAJC11305-1010	7/8"-14	7/8"-14	12.7	12.29	12.29	50.1	27 mm	27 mm	Metric
-10	DAJC11305-1012	7/8"-14	1-1/16"-12	15.09	12.29	15.47	53.3	32 mm	27 mm	Metric
-10	DAJC11305-1006IN	7/8"-14	9/16"-18	9.93	12.29	7.54	34	7/8"	1"	Imperial
-10	DAJC11305-1008IN	7/8"-14	3/4"-16	11.13	12.29	9.93	44.5	1"	1"	Imperial
-10	DAJC11305-1010IN	7/8"-14	7/8"-14	12.7	12.29	12.29	50.1	1"	1"	Imperial
-10	DAJC11305-1012IN	7/8"-14	1-1/16"-12	15.09	12.29	15.47	53.3	1-1/4"	1"	Imperial
-12	DAJC11305-1208	1-1/16"-12	3/4"-16	11.13	15.47	9.93	53	27 mm	32 mm	Metric
-12	DAJC11305-1210	1-1/16"-12	7/8"-14	12.7	15.47	12.29	51.6	27 mm	32 mm	Metric
-12	DAJC11305-1212	1-1/16"-12	1-1/16"-12	15.09	15.47	15.47	55.7	32 mm	32 mm	Metric
-12	DAJC11305-1216	1-1/16"-12	1-5/16"-12	15.09	15.47	21.44	56.9	41 mm	32 mm	Metric
-12	DAJC11305-1208IN	1-1/16"-12	3/4"-16	11.13	15.47	9.93	53	1"	1-1/4"	Imperial
-12	DAJC11305-1210IN	1-1/16"-12	7/8"-14	12.7	15.47	12.29	51.6	1"	1-1/4"	Imperial
-12	DAJC11305-1212IN	1-1/16"-12	1-1/16"-12	15.09	15.47	15.47	55.7	1-1/4"	1-1/4"	Imperial
-12	DAJC11305-1216IN	1-1/16"-12	1-5/16"-12	15.09	15.47	21.44	56.9	1-1/2"	1-1/4"	Imperial
-16	DAJC11305-1612	1-5/16"-12	1-1/16"-12	15.09	21.44	15.47	54.3	41 mm	41 mm	Metric
-16	DAJC11305-1616	1-5/16"-12	1-5/16"-12	15.09	21.44	21.44	58.8	41 mm	41 mm	Metric
-16	DAJC11305-1620	1-5/16"-12	1-5/8"-12	15.09	21.44	27.38	60.5	50 mm	41 mm	Metric
-16	DAJC11305-1612IN	1-5/16"-12	1-1/16"-12	15.09	21.44	15.47	54.3	1-1/2"	1-1/2"	Imperial
-16	DAJC11305-1616IN	1-5/16"-12	1-5/16"-12	15.09	21.44	21.44	58.8	1-1/2"	1-1/2"	Imperial
-16	DAJC11305-1620IN	1-5/16"-12	1-5/8"-12	15.09	21.44	27.38	60.5	1-7/8"	1-1/2"	Imperial
-20	DAJC11305-2016	1-5/8"-12	1-5/16"-12	15.09	27.42	21.44	48.7	50 mm	50 mm	Metric
-20	DAJC11305-2020	1-5/8"-12	1-5/8"-12	15.09	27.38	27.38	61.7	50 mm	50 mm	Metric
-20	DAJC11305-2016IN	1-5/8"-12	1-5/16"-12	15.09	27.42	21.44	48.7	1-7/8"	2"	Imperial
-20	DAJC11305-2020IN	1-5/8"-12	1-5/8"-12	15.09	27.38	27.38	61.7	1-7/8"	2"	Imperial
-24	DAJC11305-2424	1-7/8"-12	1-7/8"-12	15.09	33.32	33.32	67.7	55 mm	55 mm	Metric
-24	DAJC11305-2424IN	1-7/8"-12	1-7/8"-12	15.09	33.32	33.32	67.7	2-1/8"	2-1/4"	Imperial
-32	DAJC11305-3232	2-1/2"-12	2-1/2"-12	15.09	45.24	45.24	79.1	70 mm	75 mm	Metric
-32	DAJC11305-3232IN	2-1/2"-12	2-1/2"-12	15.09	45.24	45.24	79.1	2-3/4"	2-7/8"	Imperial
