Technical Data of DAJC1106Q

* Filter the F1 Thread through selecting the -XX options

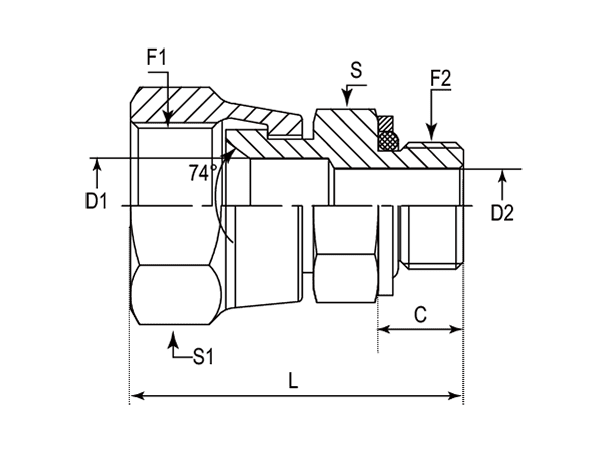

A drawing of DAJC1106Q hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C	L	D1	D2	S	S1	Cross Number
-	-	UNF	BSPP	mm	mm	mm	mm	mm	mm	-
-01	DAJC1106Q-0402	7/16"-20	1/8"-28	7.60	24.00	4.37	4.37	14.00	14.00	AABP-02-07
-01	DAJC1106Q-0404	7/16"-20	1/4"-19	11.20	27.80	4.37	7.50	19.00	17.00	AABP-04-07
-05	DAJC1106Q-0502	1/2"-20	1/8"-28	7.60	24.00	5.94	4.40	17.00	17.00	AABP-02-08
-05	DAJC1106Q-0504	1/2"-20	1/4"-19	11.20	27.80	5.94	7.50	19.00	17.00	AABP-04-08
-05	DAJC1106Q-0506	1/2"-20	3/8"-19	11.20	29.00	5.94	9.90	22.00	17.00	AABP-06-08
-06	DAJC1106Q-0604	9/16"-18	1/4"-19	11.20	29.00	7.54	7.54	19.00	19.00	AABP-04-09
-06	DAJC1106Q-0606	9/16"-18	3/8"-19	11.20	30.00	7.54	9.90	22.00	19.00	AABP-06-09
-06	DAJC1106Q-0608	9/16"-18	1/2"-14	14.50	33.00	7.54	12.29	27.00	19.00	AABP-08-09
-08	DAJC1106Q-0804	3/4"-16	1/4"-19	11.20	31.00	9.93	7.50	19.00	22.00	AABP-04-12
-08	DAJC1106Q-0806	3/4"-16	3/8"-19	11.20	30.00	9.93	9.93	22.00	24.00	AABP-06-12
-08	DAJC1106Q-0808	3/4"-16	1/2"-14	14.50	34.00	9.93	12.30	30.00	24.00	AABP-08-12
-08	DAJC1106Q-0812	3/4"-16	3/4"-14	14.50	36.00	9.93	15.47	36.00	24.00	AABP-12-12
-10	DAJC1106Q-1006	7/8"-14	3/8"-19	11.20	34.00	12.29	9.93	24.00	27.00	AABP-06-14
-10	DAJC1106Q-1008	7/8"-14	1/2"-14	14.50	35.00	12.29	12.29	27.00	27.00	AABP-08-14
-10	DAJC1106Q-1010	7/8"-14	5/8"-14	14.50	37.00	12.29	12.29	30.00	27.00	AABP-10-14
-10	DAJC1106Q-1012	7/8"-14	3/4"-14	14.50	38.00	12.29	12.29	36.00	27.00	AABP-12-14
-12	DAJC1106Q-1208	1-1/16"-12	1/2"-14	14.50	38.50	15.47	12.29	30.00	32.00	AABP-08-17
-12	DAJC1106Q-1212	1-1/16"-12	3/4"-14	14.50	40.00	15.47	15.47	36.00	32.00	AABP-12-17
-12	DAJC1106Q-1216	1-1/16"-12	1"-11	18.60	44.00	15.47	21.44	41.00	32.00	AABP-16-17
-16	DAJC1106Q-1612	1-5/16"-12	3/4"-14	14.50	40.00	21.44	15.50	36.00	41.00	AABP-12-21
-16	DAJC1106Q-1616	1-5/16"-12	1"-11	18.60	46.50	21.44	21.44	46.00	41.00	AABP-16-21
-16	DAJC1106Q-1620	1-5/16"-12	1-1/4"-11	18.60	48.00	21.44	27.38	50.00	41.00	AABP-20-21
-20	DAJC1106Q-2016	1-5/8"-12	1"-11	18.60	48.00	27.38	21.50	46.00	50.00	AABP-16-26
-20	DAJC1106Q-2020	1-5/8"-12	1-1/4"-11	18.60	50.00	27.38	27.38	50.00	50.00	AABP-20-26
-20	DAJC1106Q-2024	1-5/8"-12	1-1/2"-11	18.60	49.00	27.42	33.00	55.00	50.00	AABP-24-26
-24	DAJC1106Q-2424	1-7/8"-12	1-1/2"-11	18.60	49.00	33.00	33.00	55.00	55.00	AABP-24-30
-32	DAJC1106Q-3232	2-1/2"-12	2"-11	18.60	50.80	45.00	45.00	70.00	75.00	AABP-32-40
