Location: Home Fluid Connector Hose Fittings Insert Hose FittingsDPSTS

DPSTS Socket Weld – Braided Hose And Spiral Hose

DCompanyDME
PProduct RangeHose Fitting
SFitting StructureSocket
SFitting StructureSocket
TSConnection TypeWeld Tube

A 3D drawing of DPSTS hydraulic adaptor.

A model drawing of DPSTS hydraulic adaptor.

DME&JDE Code: DPSTS
Product Type: Hose Fittings
Hose Fitting Type: Insert

Technical Data of DPSTS

-08
-09
-10
-13
-15
-16
-20
-22

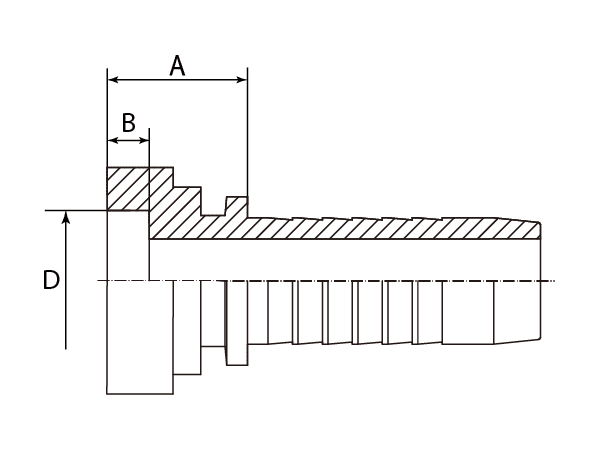

A drawing of DPSTS straight hose fitting insert connector.

Note:

For use with braided hoses.
If use with spiral hoses, hose fitting series number is DPSTS-XXXXR

-	PART NUMBER	D	Ø	A	B
-	-	mm	Inch	mm	mm
-01	DPSTS-0806	8	3/8"	14.5	5
-09	DPSTS-0906	9	3/8"	14.5	5
-10	DPSTS-1006	10	3/8"	14.5	5
-10	DPSTS-1008	10	1/2"	12.5	5
-13	DPSTS-1308	13	1/2"	15	5
-15	DPSTS-1510	15	3/8"	15.5	5
-16	DPSTS-1612	16	3/4"	14	5
-20	DPSTS-2012	20	3/4"	16.5	5
-22	DPSTS-2216	22	1"	18	5
