DP4BPF 45° Elbow BSPP Swivel Female 60°Cone – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 4Fitting Structure45° Elbow
  • BPThread TypesBSPP
  • FConnection TypeSwivel Female
  • DME&JDE Code: DP4BPF
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Thread Type: BSPP 60° Cone
  • Structure: 45° Elbow
  • Connection Type: Swivel Female
Technical Data of DP4BPF
  • -02
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

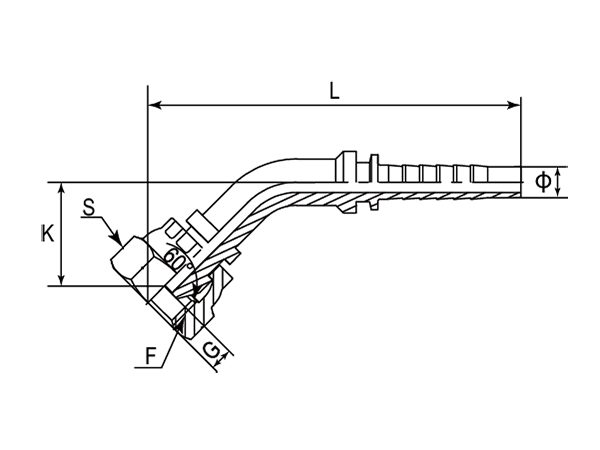

A drawing of DP4BPF 45° elbow hose fitting insert connector.

Note:

  1. For use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP4BPF-XXXXR
- Part Number F (Thread) Ø G K L S
- - BSPP mm mm mm mm mm
-01 DP4BPF-0204 G 1/8" 1/4" 4.30 15.00 66.50 14
-04 DP4BPF-0404 G 1/4" 1/4" 5.20 15.00 68.50 19
-06 DP4BPF-0604 G 3/8" 1/4" 5.20 18.00 71.00 22
-06 DP4BPF-0606 G 3/8" 3/8" 6.00 19.00 84.00 22
-08 DP4BPF-0806 G 1/2" 3/8" 6.50 21.00 87.00 27
-08 DP4BPF-0808 G 1/2" 1/2" 6.50 24.00 97.00 27
-10 DP4BPF-1008 G 5/8" 1/2" 9.70 25.50 98.00 30
-10 DP4BPF-1010 G 5/8" 5/8" 9.70 23.00 114.50 30
-12 DP4BPF-1212 G 3/4" 3/4" 8.70 30.00 129.50 32
-16 DP4BPF-1616 G 1" 1" 10.50 35.00 165.00 41
-20 DP4BPF-2020 G 1-1/4" 1-1/4" 10.10 52.00 199.00 50
-24 DP4BPF-2424 G 1-1/2" 1-1/2" 12.50 47.00 233.00 55
-32 DP4BPF-3232 G 2" 2" 16.10 66.50 282.00 70
