DDC Pushlock Hose Joiner

  • DCompanyDME
  • DCConnection TypePush lock
  • DME&JDE Code: DDC
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Structure: Straight
  • Connection Type: push lock
Technical Data of DDC
  • -04
  • -05
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

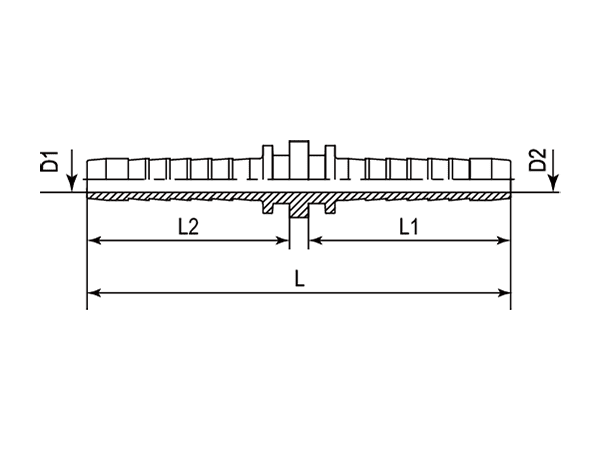

A drawing of DDC straight hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DDC-XXXXR
- Part Number D1 D2 L1 L2 L
- - mm mm mm mm mm
-01 DDC-04 4.00 4.00 32.00 32.00 67.00
-05 DDC-05 4.90 4.90 34.20 34.20 71.40
-06 DDC-06 6.90 6.90 34.30 34.30 71.60
-08 DDC-08 9.30 9.30 36.30 36.30 75.60
-10 DDC-10 13.00 13.00 39.30 39.30 82.60
-12 DDC-12 15.00 15.00 45.30 45.30 94.60
-16 DDC-16 20.00 20.00 54.00 54.00 112.00
-20 DDC-20 26.00 26.00 62.00 62.00 132.00
-24 DDC-24 32.00 32.00 76.00 76.00 160.00
-32 DDC-32 44.20 44.20 80.00 80.00 170.00
