DP9BPF 90° Elbow BSPP Swivel Female 60° Cone – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 9Fitting Structure90° Elbow
  • BPThread TypesBSPP
  • FConnection TypeSwivel Female
  • DME&JDE Code: DP9BPF
  • Product Type: hose fitting
  • Hose Fitting Type: Insert
  • Thread Type: BSPP 60° Cone
  • Structure: 90° Elbow
  • Connection Type: Swivel Female
Technical Data of DP9BPF
  • -02
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

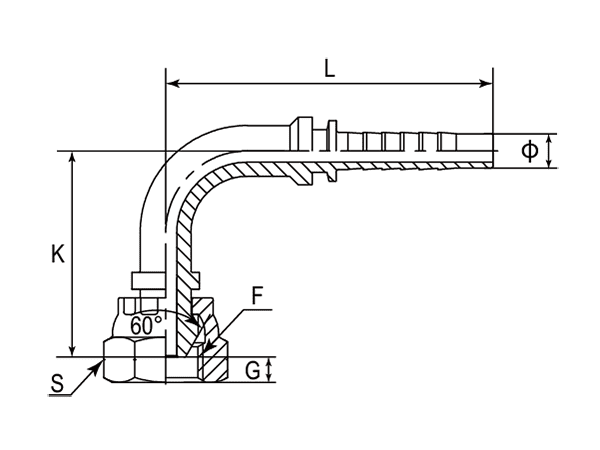

A drawing of DP9BPF 90° elbow hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP9BPF-XXXXR
- Part Number F (Thread) Ø G K L S
- - BSPP mm mm mm mm mm
-01 DP9BPF-0204 G 1/8" 1/4" 4.30 26.00 52.00 14
-04 DP9BPF-0404 G 1/4" 1/4" 5.20 29.00 52.00 19
-06 DP9BPF-0604 G 3/8" 1/4" 5.20 31.00 52.00 22
-06 DP9BPF-0606 G 3/8" 3/8" 6.00 38.00 64.00 22
-08 DP9BPF-0806 G 1/2" 3/8" 6.50 40.50 64.00 27
-08 DP9BPF-0808 G 1/2" 1/2" 6.50 45.00 74.00 27
-10 DP9BPF-1008 G 5/8" 1/2" 9.70 45.00 74.00 30
-10 DP9BPF-1010 G 5/8" 5/8" 9.70 45.00 85.00 30
-12 DP9BPF-1212 G 3/4" 3/4" 8.70 57.00 99.00 32
-16 DP9BPF-1616 G 1" 1" 10.50 72.50 129.00 41
-20 DP9BPF-2020 G 1-1/4" 1-1/4" 10.10 87.50 153.00 50
-24 DP9BPF-2424 G 1-1/2" 1-1/2" 12.50 100.00 179.00 55
-32 DP9BPF-3232 G 2" 2" 16.10 130.00 218.00 70
