Location: Home Fluid Connector Hose Fittings Insert Hose FittingsDP1WF

DP1WF Straight Connector Metric Female – Braided Hose And Spiral Hose

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
WMediumWater
FConnection TypeFemale

A 3D drawing of DP1WF hydraulic adaptor.

A model drawing of DP1WF hydraulic adaptor.

DME&JDE Code: DP1WF
Product Type: Hose Fittings
Hose Fitting Type: Insert
Structure: Straight
Thread Types: Metric
Connection Type: Female

Technical Data of DP1WF

-22

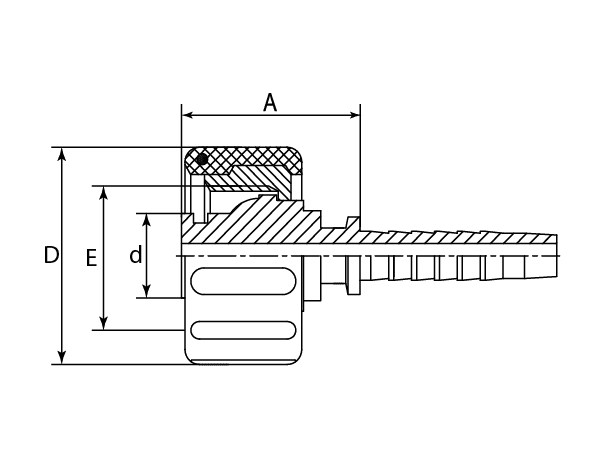

A drawing of DP1WF straight hose fitting insert connector.

Note:

For use with braided hoses.
If use with spiral hoses, hose fitting series number is DP1WF-XXXXR

-	PART NUMBER	E (Thread)	A	d	D
-	-	METRIC	mm	mm	mm
-01	DP1WF-2204	M22X1.5	32.70	14.00	34.50
-01	DP1WF-2205	M22X1.5	32.70	14.00	34.50
-01	DP1WF-2206	M22X1.5	32.70	14.00	34.50
