DP9FL 90° Elbow SAE Flange Code 61 – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 9Fitting Structure90° Elbow
  • FLConnection TypeSAE Flange Code 61
  • DME&JDE Code: DP9FL
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Structure: 90° Elbow
  • Connection Type: Flange Code 61
Technical Data of DP9FL
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

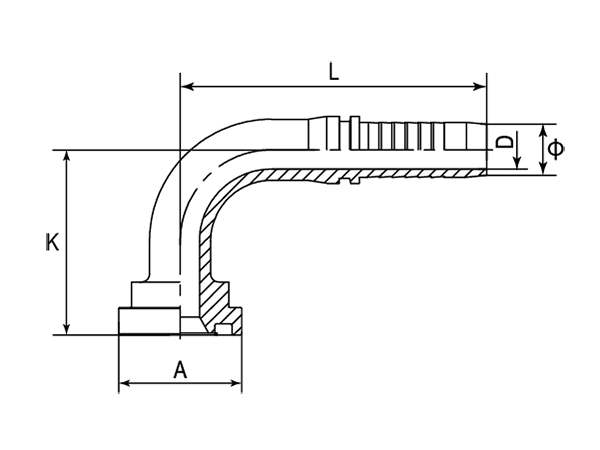

A drawing of DP9FL 90° elbow hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP9FL-XXXXR
- Part Number Flange Ø L K A
- - - Inch mm mm mm
-01 DP9FL-0808 8 1/2" 74.00 40.00 30.20
-01 DP9FL-0810 8 5/8" 85.00 53.00 30.20
-12 DP9FL-1212 12 3/4" 99.00 58.00 38.00
-16 DP9FL-1612 16 3/4" 99.00 62.00 44.50
-16 DP9FL-1616 16 1" 129.00 70.00 44.50
-20 DP9FL-2016 20 1" 129.00 75.00 50.80
-20 DP9FL-2020 20 1-1/4" 153.00 90.00 50.80
-24 DP9FL-2420 24 1-1/4" 153.00 95.00 60.40
-24 DP9FL-2424 24 1-1/2" 179.00 104.00 60.40
-32 DP9FL-3224 32 1-1/2" 179.00 115.00 71.40
-32 DP9FL-3232 32 2" 218.00 138.00 71.40
