DP1MML Straight Connector Metric Male 24° Cone Light Type – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • MThread TypesMetric
  • MConnection TypeMale
  • LPressure GradeLight Type
  • DME&JDE Code: DP1MML
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Thread Type: Metric 24°Cone Light Type
  • Structure: Straight
  • Connection Type: Male
Technical Data of DP1MML
  • -12
  • -14
  • -16
  • -18
  • -22
  • -26
  • -30
  • -36
  • -45
  • -52

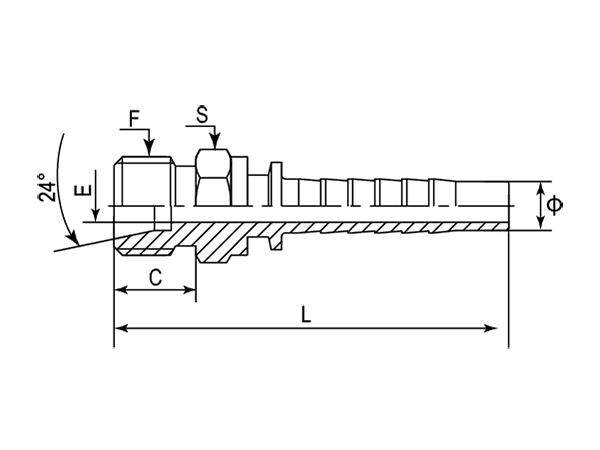

A drawing of DP1MML straight hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP1MML-XXXXR
- Part Number F (Thread) Cone 24° Ø C E L S
- - Metric - Inch mm mm mm mm
-01 DP1MML-1204 M12X1.5 06L 1/4" 10.00 6.00 48.30 14
-14 DP1MML-1404 M14X1.5 08L 1/4" 10.00 8.00 48.00 14
-16 DP1MML-1604 M16X1.5 10L 1/4" 11.00 10.00 51.00 17
-16 DP1MML-1606 M16X1.5 10L 3/8" 11.00 10.00 53.30 17
-18 DP1MML-1806 M18X1.5 12L 3/8" 11.00 12.00 53.30 19
-22 DP1MML-2206 M22X1.5 15L 3/8" 12.00 15.00 57.00 24
-22 DP1MML-2208 M22X1.5 15L 1/2" 12.00 15.00 56.00 24
-26 DP1MML-2610 M26X1.5 18L 5/8" 13.00 18.00 60.30 27
-26 DP1MML-2612 M26X1.5 18L 3/4" 12.00 18.00 70.00 27
-30 DP1MML-3012 M30X2 22L 3/4" 14.00 22.00 69.30 32
-36 DP1MML-3612 M36X2 28L 3/4" 14.00 28.00 85.00 36
-36 DP1MML-3616 M36X2 28L 1" 14.00 28.00 88.00 36
-45 DP1MML-4520 M45X2 35L 1-1/4" 19.00 35.00 97.00 46
-52 DP1MML-5220 M52X2 42L 1-1/4" 16.00 42.00 107.00 55
-52 DP1MML-5224 M52X2 42L 1-1/2" 16.00 42.00 113.00 55
