Note:

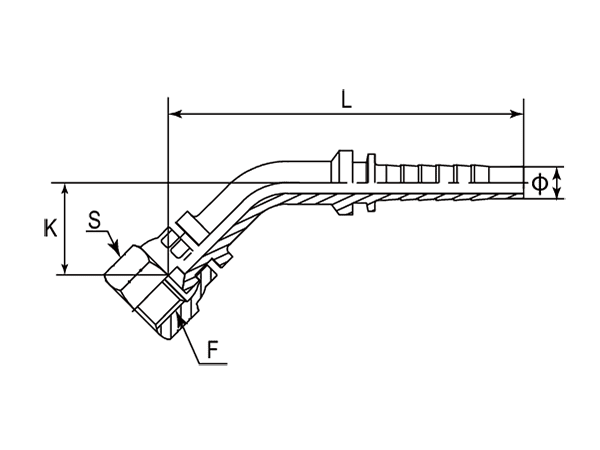

| - | Part Number | F (Thread) | Ø | L | K | S |
|---|---|---|---|---|---|---|
| - | - | UNF | mm | mm | mm | mm |
| -01 | DP4JCF-0404 | 7/16"-20 | 1/4" | 65.80 | 14.00 | 17 |
| -05 | DP4JCF-0504 | 1/2"-20 | 1/4" | 67.80 | 14.00 | 17 |
| -06 | DP4JCF-0604 | 9/16"-18 | 1/4" | 66.20 | 17.40 | 19 |
| -06 | DP4JCF-0606 | 9/16"-18 | 3/8" | 80.80 | 17.00 | 19 |
| -08 | DP4JCF-0806 | 3/4"-16 | 3/8" | 81.80 | 17.00 | 24 |
| -08 | DP4JCF-0808 | 3/4"-16 | 1/2" | 96.30 | 22.00 | 24 |
| -10 | DP4JCF-1008 | 7/8"-14 | 1/2" | 95.30 | 23.00 | 27 |
| -10 | DP4JCF-1010 | 7/8"-14 | 5/8" | 101.80 | 24.00 | 27 |
| -10 | DP4JCF-1012 | 7/8"-14 | 3/4" | 123.60 | 24.00 | 32 |
| -12 | DP4JCF-1210 | 1-1/16"-12 | 5/8" | 103.80 | 25.00 | 32 |
| -12 | DP4JCF-1212 | 1-1/16"-12 | 3/4" | 123.60 | 28.00 | 32 |
| -12 | DP4JCF-1216 | 1-1/16"-12 | 1" | 151.50 | 28.00 | 32 |
| -16 | DP4JCF-1612 | 1-5/16"-12 | 3/4" | 127.60 | 30.00 | 41 |
| -16 | DP4JCF-1616 | 1-5/16"-12 | 1" | 151.50 | 33.00 | 41 |
| -20 | DP4JCF-2016 | 1-5/8"-12 | 1" | 151.50 | 33.00 | 50 |
| -20 | DP4JCF-2020 | 1-5/8"-12 | 1-1/4" | 174.00 | 52.00 | 50 |
| -24 | DP4JCF-2420 | 1-7/8"-12 | 1-1/4" | 174.00 | 42.00 | 55 |
| -24 | DP4JCF-2424 | 1-7/8"-12 | 1-1/2" | 184.00 | 42.00 | 55 |
| -32 | DP4JCF-3232 | 2-1/2"-12 | 2" | 242.00 | 68.00 | 75 |
