DP1TYF Straight Connector JIS BSPP Swivel Female 60°Cone – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • TYThread TypesJIC BSPP
  • MConnection TypeSwivel Female
  • DME&JDE Code: DP1TYF
  • Product Type: Hose Fitting
  • Hose Fitting Type: Insert
  • Thread Type: JIC BSPP 60° Cone
  • Structure: Straight
  • Connection Type: Swivel Female
Technical Data of DP1TYF
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

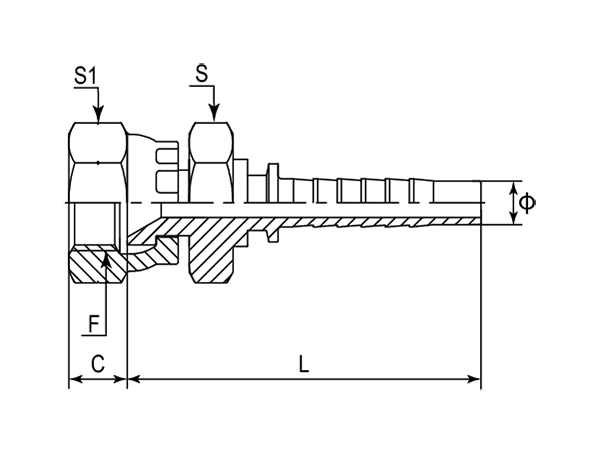

A drawing of DP1TYF straight hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP1TYF-XXXXR
- Part Number F (Thread) Ø C L S S1
- - BSPP Inch mm mm mm mm
-01 DP1TYF-0404 1/4"-19 1/4" 8.00 48.50 19.00 19
-06 DP1TYF-0604 3/8"-19 1/4" 9.00 51.50 22.00 22
-06 DP1TYF-0606 3/8"-19 3/8" 9.00 53.00 22.00 22
-08 DP1TYF-0806 1/2"-14 3/8" 12.00 58.00 27.00 27
-08 DP1TYF-0808 1/2"-14 1/2" 12.00 57.80 27.00 27
-10 DP1TYF-1010 5/8"-14 1/2" 11.50 66.50 30.00 30
-12 DP1TYF-1210 3/4"-14 5/8" 13.50 66.50 32.00 32
-12 DP1TYF-1212 3/4"-14 3/4" 13.50 71.00 32.00 32
-16 DP1TYF-1616 1"-11 1" 16.00 80.50 41.00 41
-20 DP1TYF-2020 1-1/4"-11 1-1/4" 18.50 104.00 50.00 50
-24 DP1TYF-2424 1-1/2"-11 1-1/2" 19.00 115.00 55.00 55
-32 DP1TYF-3232 2"-11 2" 23.00 122.50 70.00 70
