DP1FL Straight Connector SAE Flange Code 61 – Braided Hose And Spiral Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • FLConnection TypeSAE Flange Code 61
  • DME&JDE Code: DP1FL
  • Product Type: hose fitting
  • Hose Fitting Type: Insert
  • Structure: Straight
  • Connection Type: Flange Code 61
Technical Data of DP1FL
  • -08
  • -12
  • -16
  • -20
  • -24
  • -32

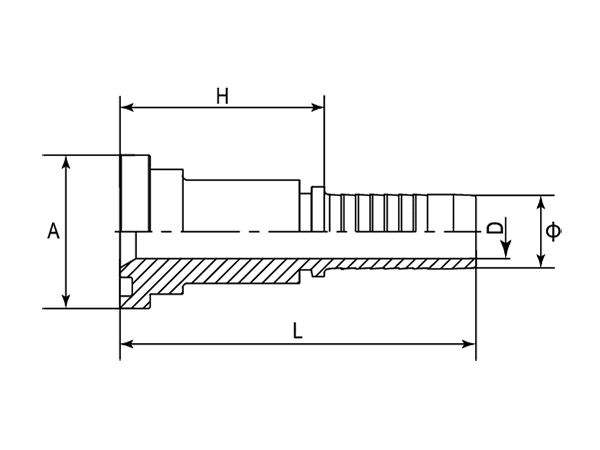

A drawing of DP1FL straight hose fitting insert connector.

Note:

  1. Part number of this chart is for use with braided hoses.
  2. If use with spiral hoses, hose fitting series number is DP1FL-XXXXR
- Part Number Flange Ø H L A
- - - Inch mm mm mm
-01 DP1FL-0808 8 1/2" 48.50 81.50 30.20
-01 DP1FL-0810 8 5/8" 46.50 82.50 30.20
-12 DP1FL-1212 12 3/4" 53.50 94.50 38.00
-16 DP1FL-1612 16 3/4" 59.50 100.50 44.50
-16 DP1FL-1616 16 1" 60.50 115.50 44.50
-20 DP1FL-2016 20 1" 65.00 120.00 50.80
-20 DP1FL-2020 20 1-1/4" 65.50 126.50 50.80
-24 DP1FL-2420 24 1-1/4" 70.00 130.00 60.40
-24 DP1FL-2424 24 1-1/2" 70.50 141.00 60.40
-32 DP1FL-3232 32 2" 77.00 153.00 71.40
